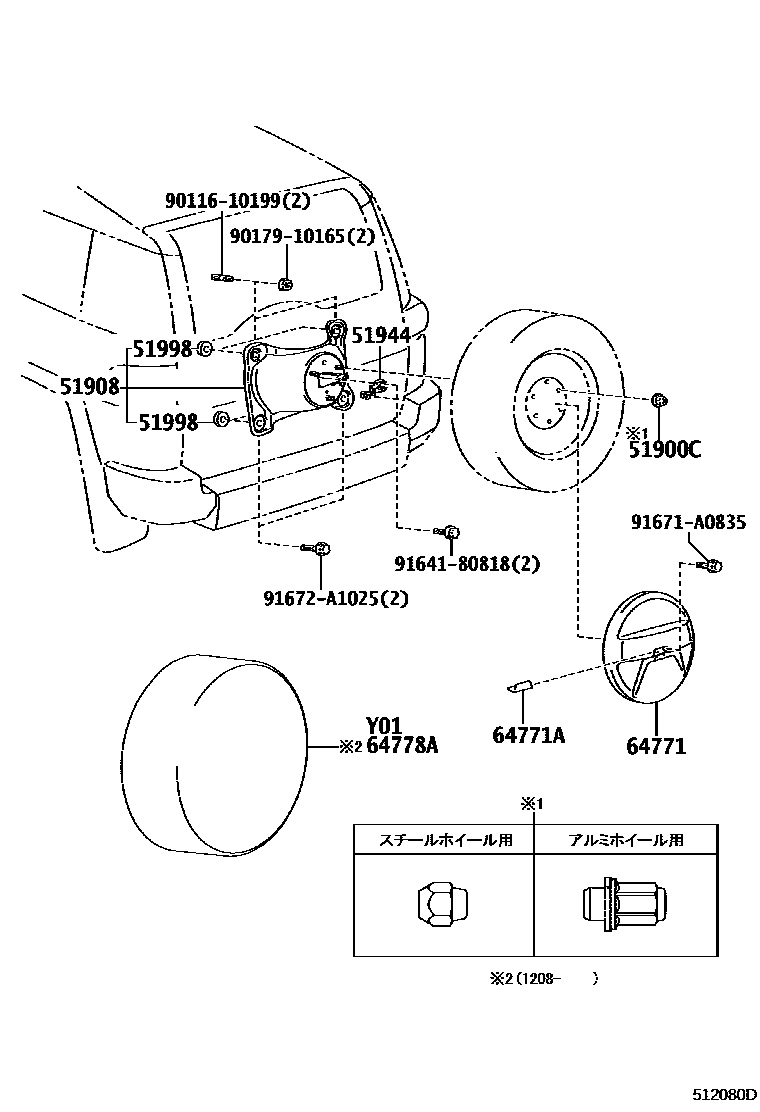

SPARE WHEEL CARRIER

51900CNUT, SPARE WHEEL, HUB

main90942-01058×3supersedes 90942-01104iGSJ15201011-201801

51908BRACKET SUB-ASSY, SPARE WHEEL CARRIER

main51908-35040iGSJ15201011-201801

51944BRACKET, SPARE WHEEL CARRIER, NO.2

main51944-35040iGSJ15201011-201801

51998PAD, SPARE WHEEL BRACKET

main51998-35020×4iGSJ15201011-201801

64771COVER, SPARE WHEEL

main64771-35040supersedes 64771-35032iGSJ15201112-201801

64771ACOVER, SPARE WHEEL

main64773-35020supersedes 64773-35012iGSJ15201112-201801

64778APROTECTOR, SPARE WHEEL

main64778-35020iGSJ15201208-201801

9011610199

main90116-10199

9017910165

main90179-10165

9164180818

main91641-80818

91671A0835

main91671-A0835

91672A1025

main91672-A1025

12 parts on this diagram · 1 diagram in section
