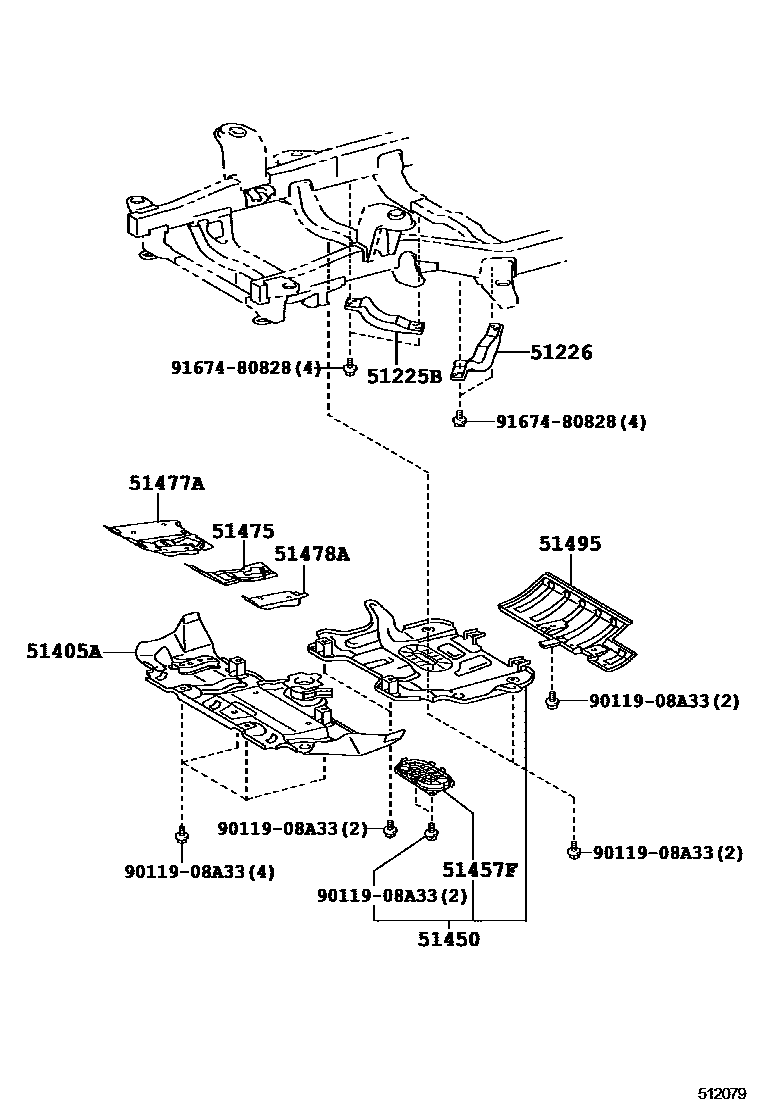

SUSPENSION CROSSMEMBER & UNDER COVER

51225BBRACKET, FRONT SUSPENSION MEMBER, RH

main51225-35040iGSJ15201011-201801

51226BRACKET, FRONT SUSPENSION MEMBER, LH

main51226-35060iGSJ15201011-201801

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-60230iGSJ15201011-201801

51450COVER ASSY, ENGINE UNDER, REAR

main51450-60050iGSJ15201011-201801

51457FSEAL, ENGINE UNDER COVER

main51457-60030iGSJ15201011-201801

51475SILENCER, ENGINE UNDER COVER, NO.5

main51475-60010iGSJ15201011-201801

51477ASILENCER, ENGINE UNDER COVER, RH

main51477-60060iGSJ15201011-201801

51478ASILENCER, ENGINE UNDER COVER, LH

main51478-60070iGSJ15201011-201801

51495COVER, TRANSMISSION UNDER

main51495-60370iGSJ15201011-201801

9011908A33

main90119-08A33

9167480828

main91674-80828

11 parts on this diagram · 1 diagram in section
