Toyota 662130 — WINDSHIELD WASHER

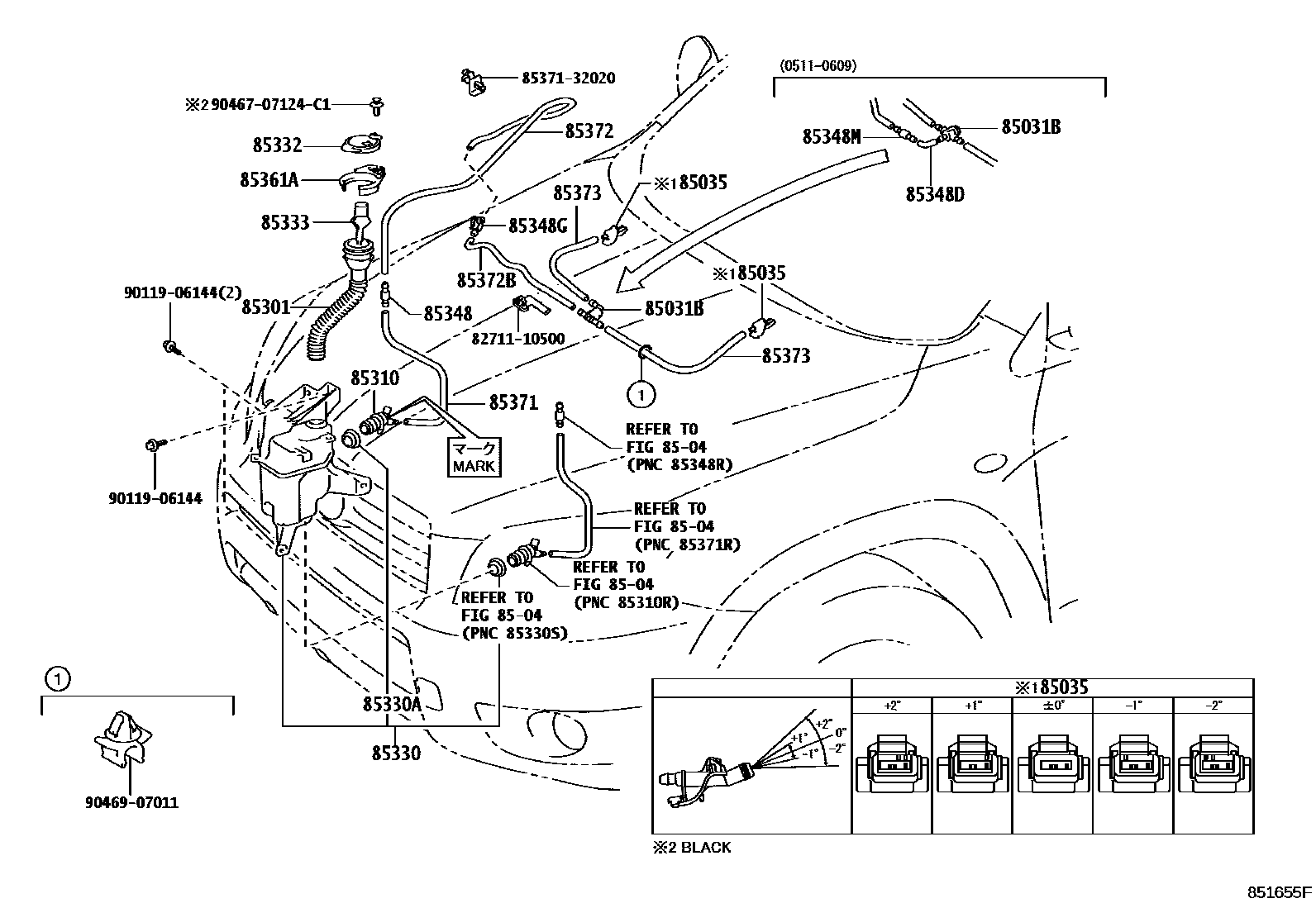

Parts diagram

85031BVALVE SUB-ASSY, WASHER

85035NOZZLE SUB-ASSY, WASHER

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

85330JAR ASSY, WINDSHIELD WASHER

85330ABUSH, WINDSHIELD WASHER JAR

85332CAP, WINDSHIELD WASHER JAR

85333FILTER, WINDSHIELD WASHER JAR

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

85361ABRACKET, WINDSHIELD WASHER, NO.1

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

8271110500WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

8537132020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

9011906144

9046707124C1

9046907011

23 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota 662130

This section contains 23 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota 662130. Key components include: VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, REAR WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
