STANDARD TOOL

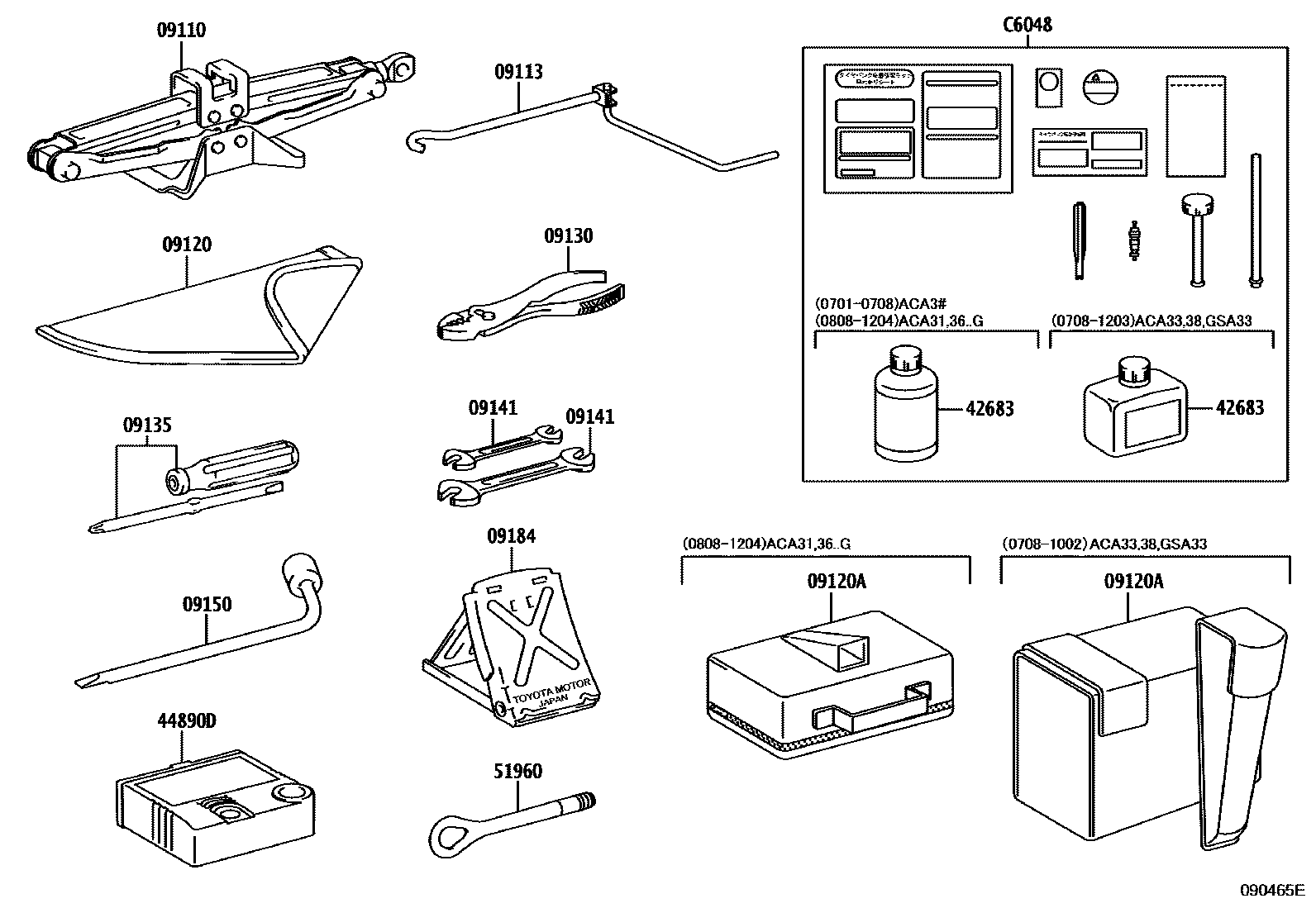

Parts diagram

09110JACK ASSY

main09111-0R030i201605-201606

main09111-0W110i201002-201110

main09111-0W111i201111-201203

main09111-0W140i201204-201604

09113HANDLE, JACK

main09113-42010i200511-201002

main09113-42030i201204

09120BAG, TOOL

main09120-10040i201211-201311

main09120-30050i200511-201002

main09120-37030i201204-201211

09120ACASE, TOOL

main09120-42020i200808-201311

main09120-42021i201311-201606

main09120-42030i200708-201002

09130PLIERS

main99913-11500i200511-200808

09135DRIVER, SCREW

main99915-10700i200511-200808

09141SPANNER

main99914-10810i200808

main99914-11214i200511-201002

09150WRENCH, HUB NUT BOX

main09150-40010i201002-201202

main09150-42010i201203-201311

09184STOPPER, WHEEL

main09184-00010i201002-201311

42683SEAL, TIRE REPAIR

main42683-42020i200701-200708

main42683-42021i201208-201311

main42683-42030i201002-201311

44890DCOMPRESSOR ASSY, AIR

main44890-42010i200808-201311

main44890-42030i201311

main44890-52010i201002-201311

51960HOOK ASSY, FRONT

main51961-42040i200808

C6048REPAIR SET, TIRE

mainC604842031i201208-201311

mainC604842020supersedes C604842021i201002-201207

mainC604842021i201208-201311

mainC604842030i200808-201207

13 parts on this diagram · 3 diagrams in section
