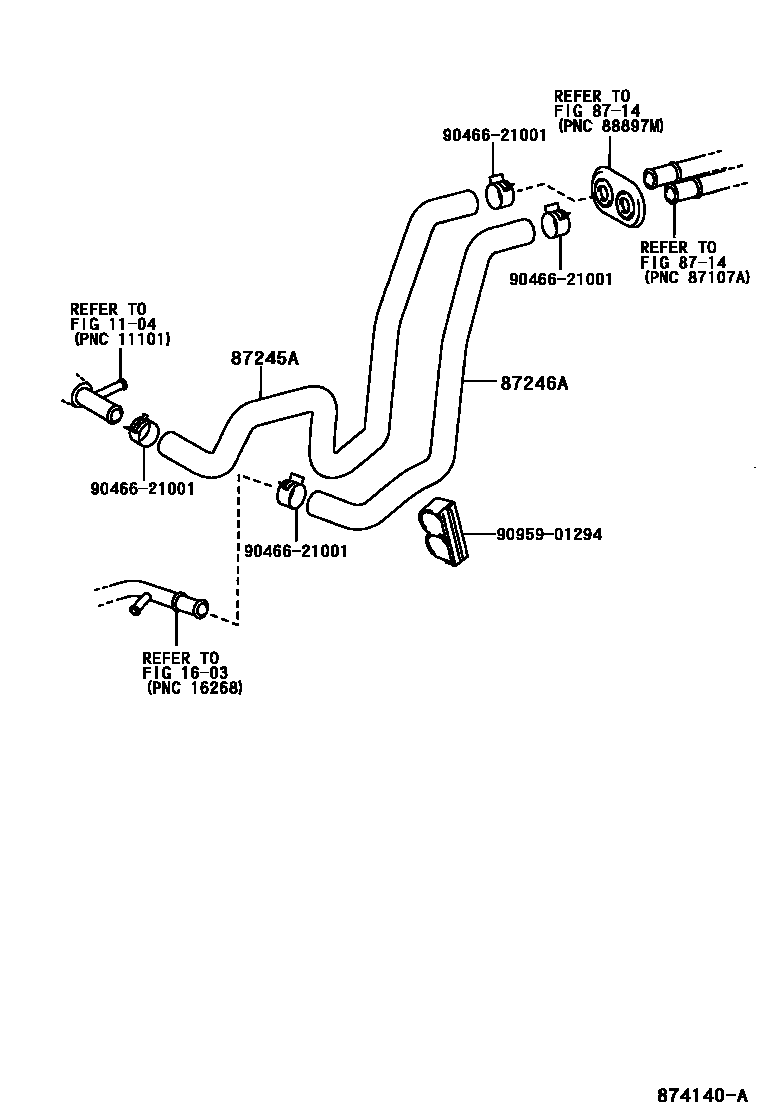

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87209-42040iACA2#200307

main87245-42210iACA2#200005-200307

main87245-42230iZCA2#200005-200307

87246AHOSE, HEATER WATER, OUTLET A

main87245-42220iACA2#200005-200307

main87245-42240iZCA2#200307

9046621001

main90466-21001

9095901294

main90959-01294

7 parts on this diagram · 3 diagrams in section
