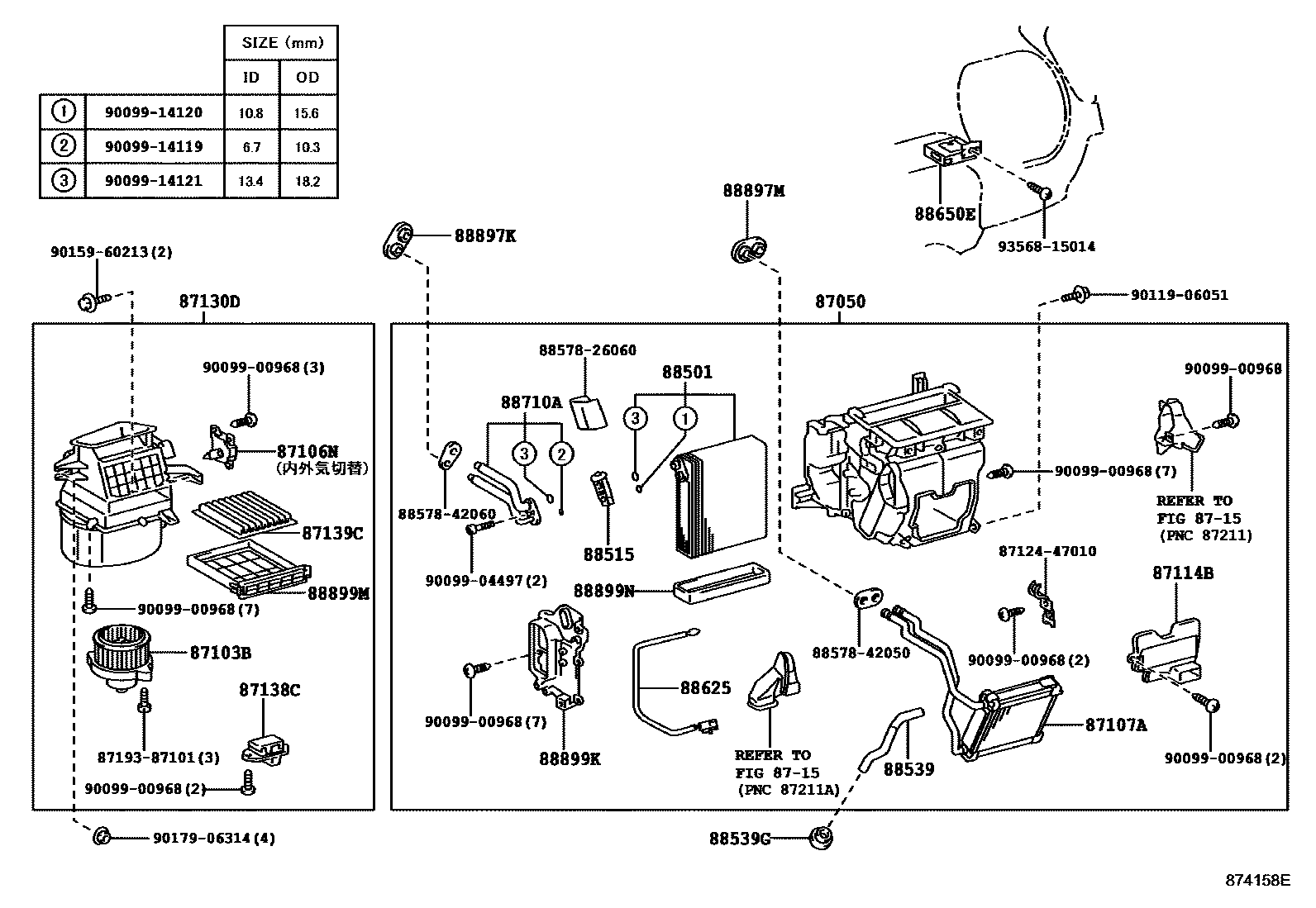

HEATING & AIR CONDITIONING - COOLER UNIT
87050RADIATOR ASSY, AIR CONDITIONER
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87107AUNIT SUB-ASSY, HEATER RADIATOR
87114BCOVER, HEATER
87130DBLOWER ASSY
87138CRESISTOR, BLOWER
87139CFILTER, CLEAN AIR
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88515VALVE, COOLER EXPANSION
88539HOSE, COOLER UNIT DRAIN, NO.1
88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)
88625THERMISTOR, COOLER, NO.1
88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1
88710ATUBE ASSY, AIR CONDITIONER
88897KGROMMET, (FOR COOLER PIPE)
88897MGROMMET (FOR HEATER PIPE)
88899KPLATE, COVER
88899MPLATE, COVER(FOR AIR FILTER)
88899NPLATE, COVER
8712447010CLAMP, HEATER
main87124-47010
8719387101
main87193-87101
8857826060PAKING, COOLER AIR DUCT
main88578-26060
8857842050PAKING, COOLER AIR DUCT
main88578-42050
8857842060PAKING, COOLER AIR DUCT
main88578-42060
9009900968
main90099-00968
9009904497
main90099-04497
9009914119
main90099-14119
9009914120
main90099-14120
9009914121
main90099-14121
9011906051
main90119-06051
9015960213
main90159-60213
9017906314
main90179-06314
9356815014
main93568-15014
35 parts on this diagram · 4 diagrams in section
