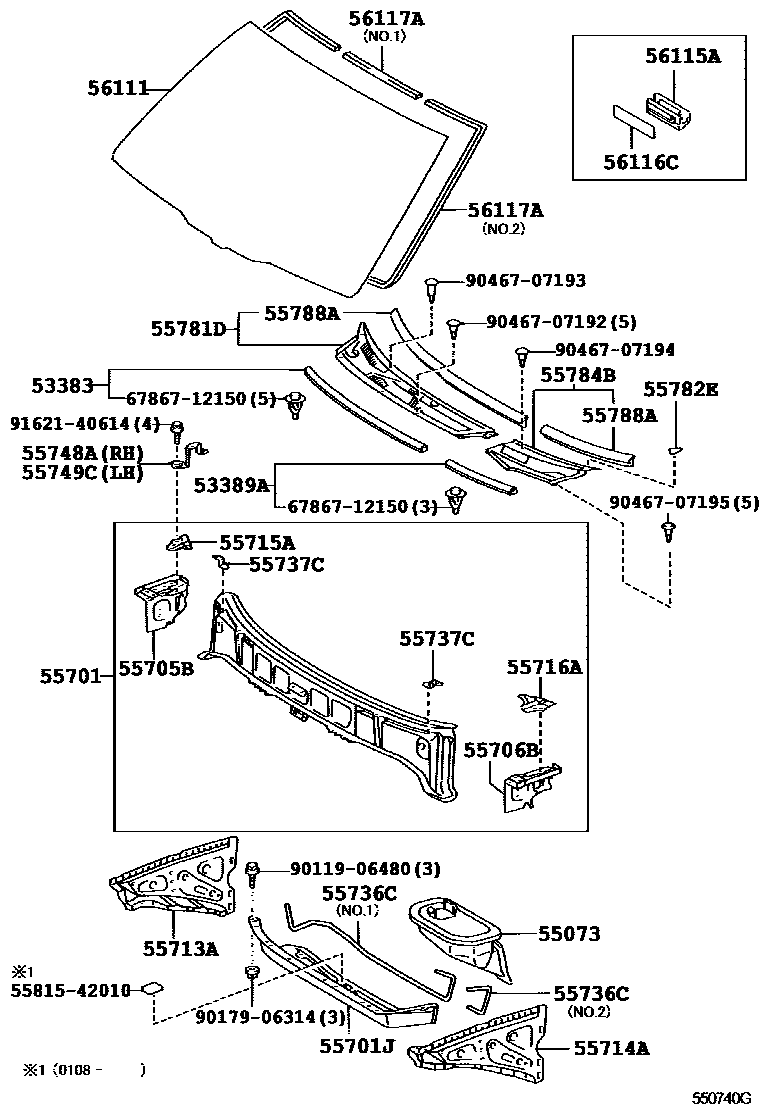

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383SEAL, HOOD TO COWL TOP

main53383-42020iACA2#,ZCA2#200005-200307

53389ASEAL, HOOD TO COWL TOP, NO.2

main53389-42010iACA2#,ZCA2#200005-200307

main53389-42011iACA2#,ZCA2#200307

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-42010iACA2#,ZCA2#200005-200307

55701PANEL SUB-ASSY, COWL

main55700-42340iACA2#..MTM200005-200307

main55700-42350iACA2#,ZCA2#..ATM200005-200307

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-42320iACA2#,ZCA2#200005-200106

main55701-42321iACA2#,ZCA2#200106-200307

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-42040iACA2#,ZCA2#200005-200307

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-42030iACA2#,ZCA2#200005-200307

55713APANEL, COWL TOP SIDE, RH

main55713-42040iACA2#,ZCA2#200307-200511

55714APANEL, COWL TOP SIDE, LH

main55714-42030iACA2#,ZCA2#200005-200307

55715ABRACE, COWL TOP TO APRON, RH

main55715-42020iACA2#,ZCA2#200005-200307

55716ABRACE, COWL TOP TO APRON, LH

main55716-42020iACA2#,ZCA2#200307

55736CSEAL, WATER GUARD PLATE

main55736-42010iACA2#,ZCA2#200005-200307

main55736-42020iACA2#,ZCA2#200005-200307

55737CBRACKET, COWL TOP OUTER PANEL, NO.3

main55733-42010iACA2#,ZCA2#200005-200307

main55737-42010iACA2#,ZCA2#200005-200307

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-42010iACA2#,ZCA2#200307-200511

55749CBRACE, COWL TOP INNER TO PILLAR, LH

main55749-42010iACA2#,ZCA2#200005-200307

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-42050iACA2#,ZCA2#200005-200307

55782EPROTECTOR, COWL TOP VENTILATOR LOUVER

main55782-42050iACA2#,ZCA2#200005-200307

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-42010iACA2#,ZCA2#200005-200307

main55784-42011iACA2#,ZCA2#200307

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-42020iACA2#,ZCA2#200307-200309

main55788-42021iACA2#,ZCA2#200309

main55789-42020iACA2#,ZCA2#200307-200309

main55789-42021iACA2#,ZCA2#200309

56111GLASS, WINDSHIELD

main56101-42030iACA2#,ZCA2#200005-200307

main56101-42040iACA2#,ZCA2#200307

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2iACA2#,ZCA2#200307

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iACA2#,ZCA2#200005-200307

56117ADAM, WINDOW GLASS ADHESIVE

main56117-30280iACA2#,ZCA2#200005-200307

main56117-42030iACA2#,ZCA2#200307-200511

main56117-44030iACA2#,ZCA2#200005-200307

5581542010ROD, COWL VENTILATOR CONTROL

main55815-42010

6786712150CLIP, DOOR WEATHERSTRIP

main67867-12150

9011906480

main90119-06480

9017906314

main90179-06314

9046707192

main90467-07192

9046707193

main90467-07193

9046707194

main90467-07194

9046707195

main90467-07195

9162140614

main91621-40614

32 parts on this diagram · 2 diagrams in section
