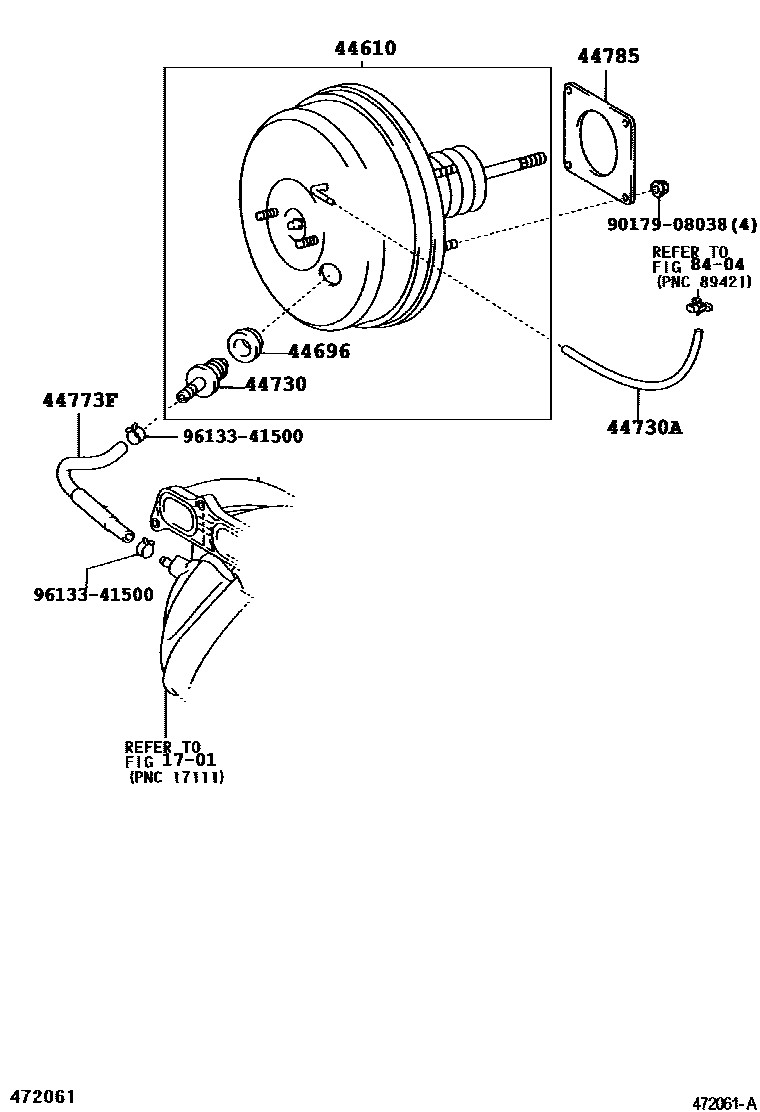

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-42080iACA2#200307

main44610-42090iZCA2#200005-200208

main44610-42091iZCA2#200307

main44610-42180iACA2#200208-200307

main44610-42190iZCA2#200208-200303

main44610-42191iZCA2#200303-200307

44696GROMMET, CHECK VALVE

main90480-24439iACA2#,ZCA2#200307

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12040iZCA2#200005-200303

main44730-14050iZCA2#200303-200307

main44730-20080iACA2#200005-200307

44730AHOSE, VACUUM, NO.1

main90999-92002iACA2#200005-200307

44773FHOSE, UNION TO CHECK VALVE

main44773-42090iACA2#200005-200307

44785GASKET, BRAKE BOOSTER

main44785-20020iACA2#,ZCA2#200005-200307

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9017908038

main90179-08038

9613341500

main96133-41500

10 parts on this diagram · 2 diagrams in section
