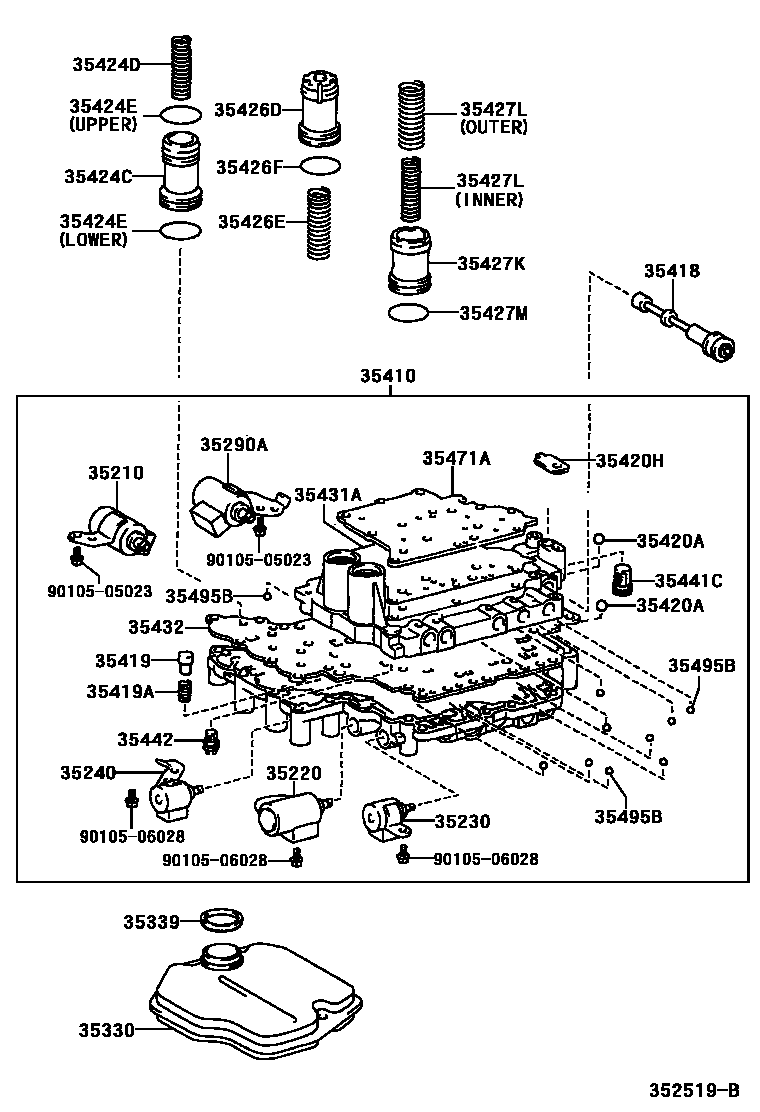

VALVE BODY & OIL STRAINER (ATM)
35210SOLENOID ASSY, CLUTCH CONTROL, NO.1
35220SOLENOID ASSY, CLUTCH CONTROL, NO.2
35230SOLENOID ASSY, TRANSMISSION 3WAY, NO.2
35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY
35290ASOLENOID ASSY, LINE PRESSURE CONTROL
35330STRAINER ASSY, VALVE BODY OIL
35339GASKET, OIL STRAINER
35410BODY ASSY, TRANSMISSION VALVE
35419ASPRING, COMPRESSION (FOR CHECK VALVE)
35420ABALL (FOR PRESSURE RELIEF)
35424CPISTON, C-1 ACCUMULATOR
35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)
35424ERING, O (FOR C-1 ACCUMULATOR PISTON)
35426ESPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON)
35426FRING, O (FOR C-3 ACCUMULATOR PISTON)
35427COVER, ACCUMULATOR
35427KPISTON, B-3 ACCUMULATOR
35427LSPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON)
35427MRING, O (FOR B-3 ACCUMULATOR PISTON)
35431AGASKET, UPPER VALVE BODY COVER
35432PLATE, VALVE BODY, NO.1
35441CSTRAINER, SOLENOID OIL
35442STRAINER, THROTTLE MODULATOR OIL
35471ACOVER, UPPER VALVE BODY
35495BBALL, CHECK, NO.1
9010505023
main90105-05023
9010506028
main90105-06028
31 parts on this diagram · 15 diagrams in section
