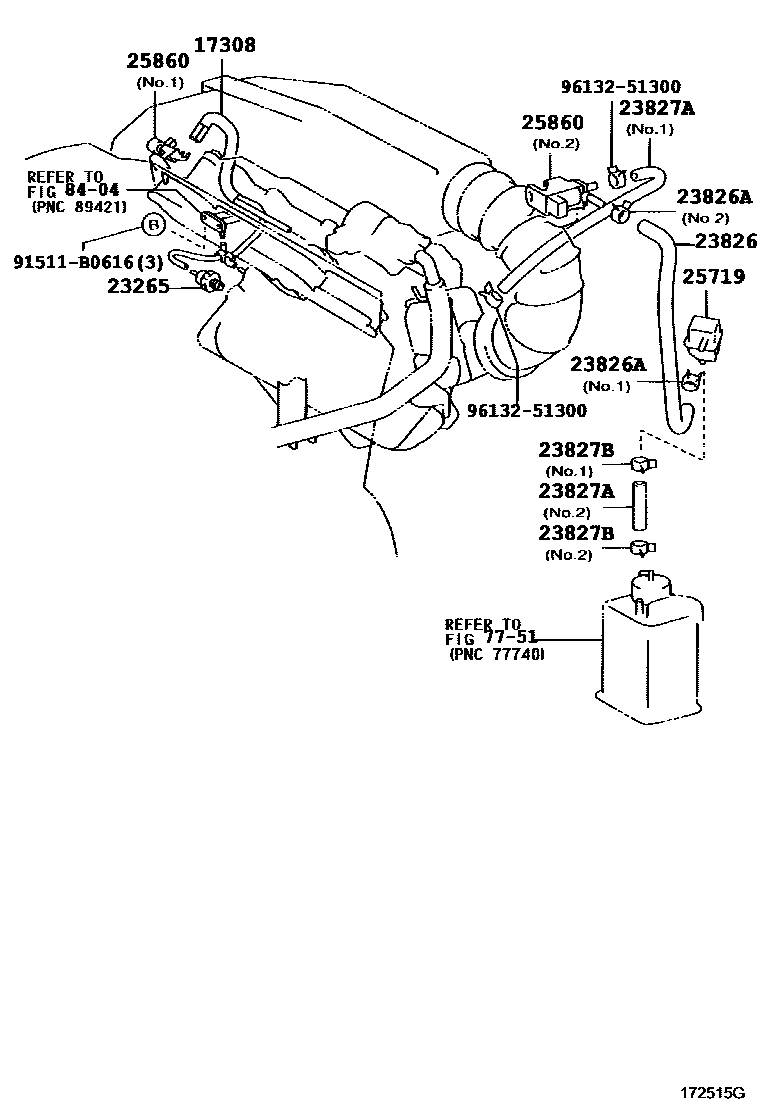

VACUUM PIPING

0001 1 0002 1

17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)

main17308-28010i1AZFSE..ACA2#200307

23265FILTER, GAS, NO.1

main90917-11037i1AZFSE..ACA2#200307

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-22090i1ZZFE..ZCA2#200005-200307

main23826-28030i1AZFSE..ACA2#200005-200307

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90467-12056i1AZFSE..ACA2#200307

main96132-41100i1AZFSE..ACA2#; 1ZZFE..ZCA2#200005-200307

main96132-51100i1AZFSE..ACA2#; 1ZZFE..ZCA2#200307

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-22050i1ZZFE..ZCA2#200005-200104

main23827-28050i1AZFSE..ACA2#200005-200307

main95326-07005i1AZFSE..ACA2#200005-200307

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-12056i1AZFSE..ACA2#200005-200307

main96132-41100i1AZFSE..ACA2#; 1ZZFE..ZCA2#200005-200307

main96132-51100×2i1AZFSE..ACA2#; 1ZZFE..ZCA2#200307

25719TANK, VACUUM SURGE

main25719-62040i1AZFSE..ACA2#; 1ZZFE..ZCA2#200307

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-22070i1ZZFE..ZCA2#200005-200307

main25860-28020i1AZFSE..ACA2#200005-200307

main25860-28030i1AZFSE..ACA2#200005-200307

main25860-28070i1AZFSE..ACA2#200307

7751FUEL TANK & TUBE

→ Go to FIG 77-51

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

91511B0616

main91511-B0616

9613251300

main96132-51300

12 parts on this diagram · 2 diagrams in section
