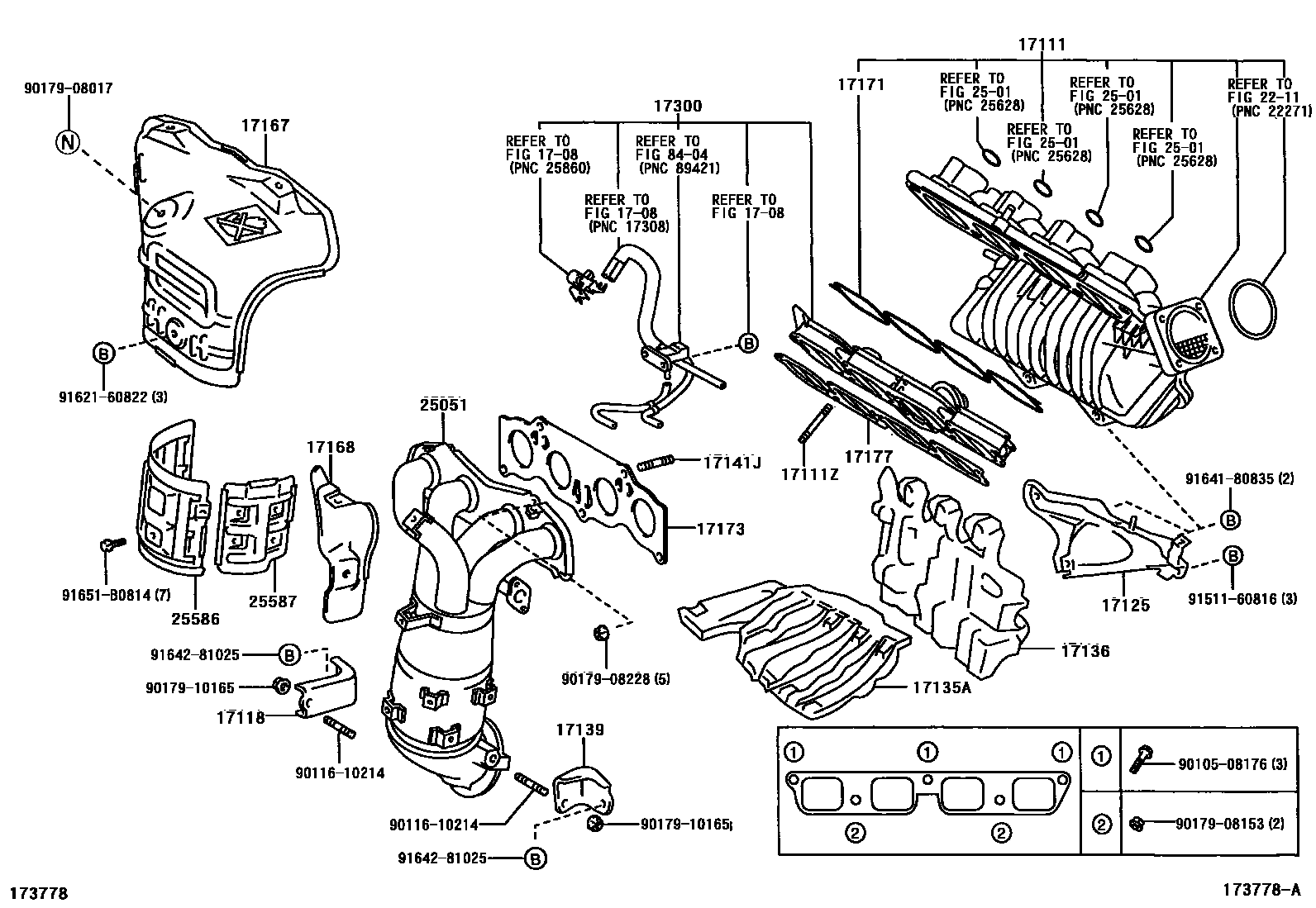

MANIFOLD
1708VACUUM PIPING
17111MANIFOLD, INTAKE
17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118STAY, MANIFOLD
17125STAY, SURGE TANK, NO.1
17135AINSULATOR, INTAKE MANIFOLD, NO.1
17136INSULATOR, INTAKE MANIFOLD, NO.2
17139STAY, MANIFOLD, NO.2
17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17171GASKET, INTAKE TO EXHAUST MANIFOLD
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17300VALVE ASSY, INTAKE AIR CONTROL
2211FUEL INJECTION SYSTEM
2501EXHAUST GAS RECIRCULATION SYSTEM
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25586INSULATOR, MANIFOLD CONVERTER, NO.1
25587INSULATOR, MANIFOLD CONVERTER, NO.2
8404ELECTRONIC FUEL INJECTION SYSTEM
9010508176
main90105-08176
9011610214
main90116-10214
9017908017
main90179-08017
9017908153
main90179-08153
9017908228
main90179-08228
9017910165
main90179-10165
9151160816
main91511-60816
9162160822
main91621-60822
9164180835
main91641-80835
9164281025
main91642-81025
91651B0814
main91651-B0814
33 parts on this diagram · 4 diagrams in section
