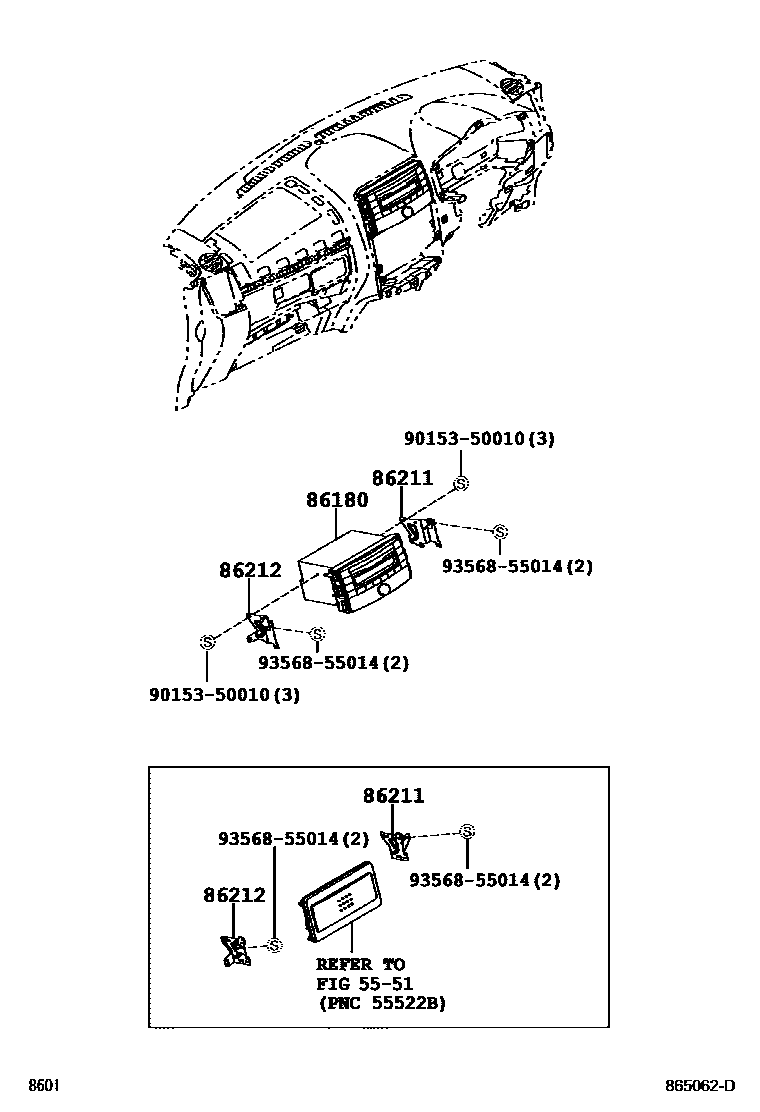

RADIO RECEIVER & AMPLIFIER & CONDENSER

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

86180TUNER ASSY, STEREO COMPONENT

main86180-B4010iJ200,210200601-200811

main86180-B4011iJ200..X200811-201409

mainGAITONASHIsupersedes 86180-B4011iJ200,210..G200811-201007

86211BRACKET, RADIO, NO.1

main86211-B4010supersedes 86211-B4020iJ200,210200601-200811

main86211-B4020supersedes 86211-B4010iJ200,210..G200811-201007

86212BRACKET, RADIO, NO.2

main86212-B4010supersedes 86212-B4020iJ200..G201007-201409

main86212-B4020supersedes 86212-B4010iJ200,210..G200811-201007

9015350010

main90153-50010

9356855014

main93568-55014

6 parts on this diagram · 1 diagram in section
