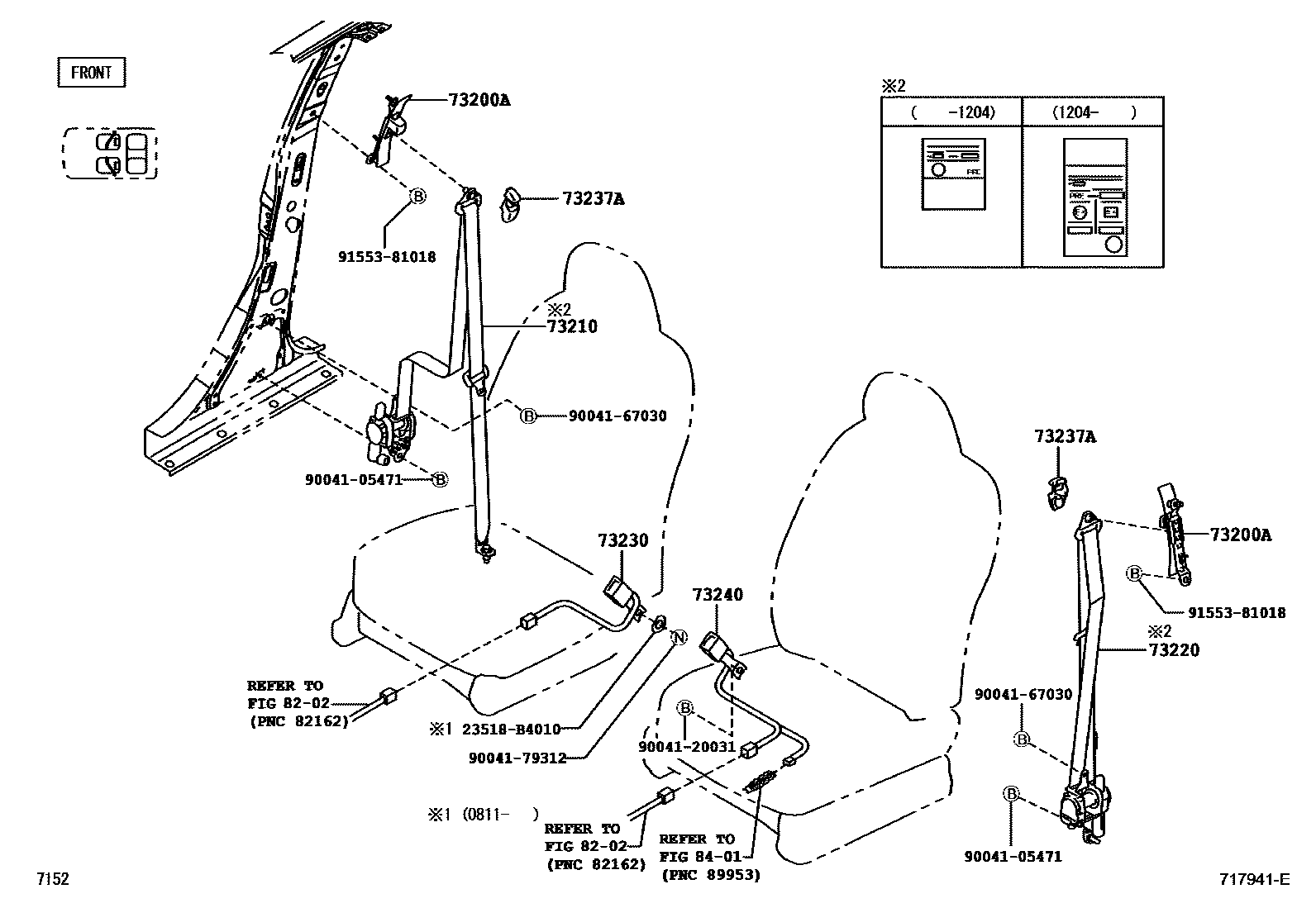

SEAT BELT

0001 1���� 0002 1�� 0003 1��

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-B1010-B0×2iJ200200811-201409

LT.GRAY,TRIM1#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-B4030-B0iJ200,210200811-201204

SHADOW GRAY,TRIM1#

main73210-B4081-B0iJ200201204-201409

SHADOW GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-B4031-B0iJ200201204-201409

SHADOW GRAY,TRIM1#

main73220-B4090-B0iJ200,210200811-201204

SHADOW GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-B4020-B0iJ200,210200601-200811

DK.GRAY,TRIM1#

73237ACOVER, SHOULDER BELT ANCHOR

main73237-B1010-B0×2iJ210200811-201605

LT.GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-B4050-B0iJ200,210200601-200811

DK.GRAY,TRIM1#

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

23518B4010WASHER, WAVE(FOR ELASTIC FACE VALVE SET)

main23518-B4010

9004105471

main90041-05471

9004120031

main90041-20031

9004167030

main90041-67030

9004179312

main90041-79312

9155381018

main91553-81018

14 parts on this diagram · 3 diagrams in section
