Toyota 661140 — SEAT & SEAT TRACK

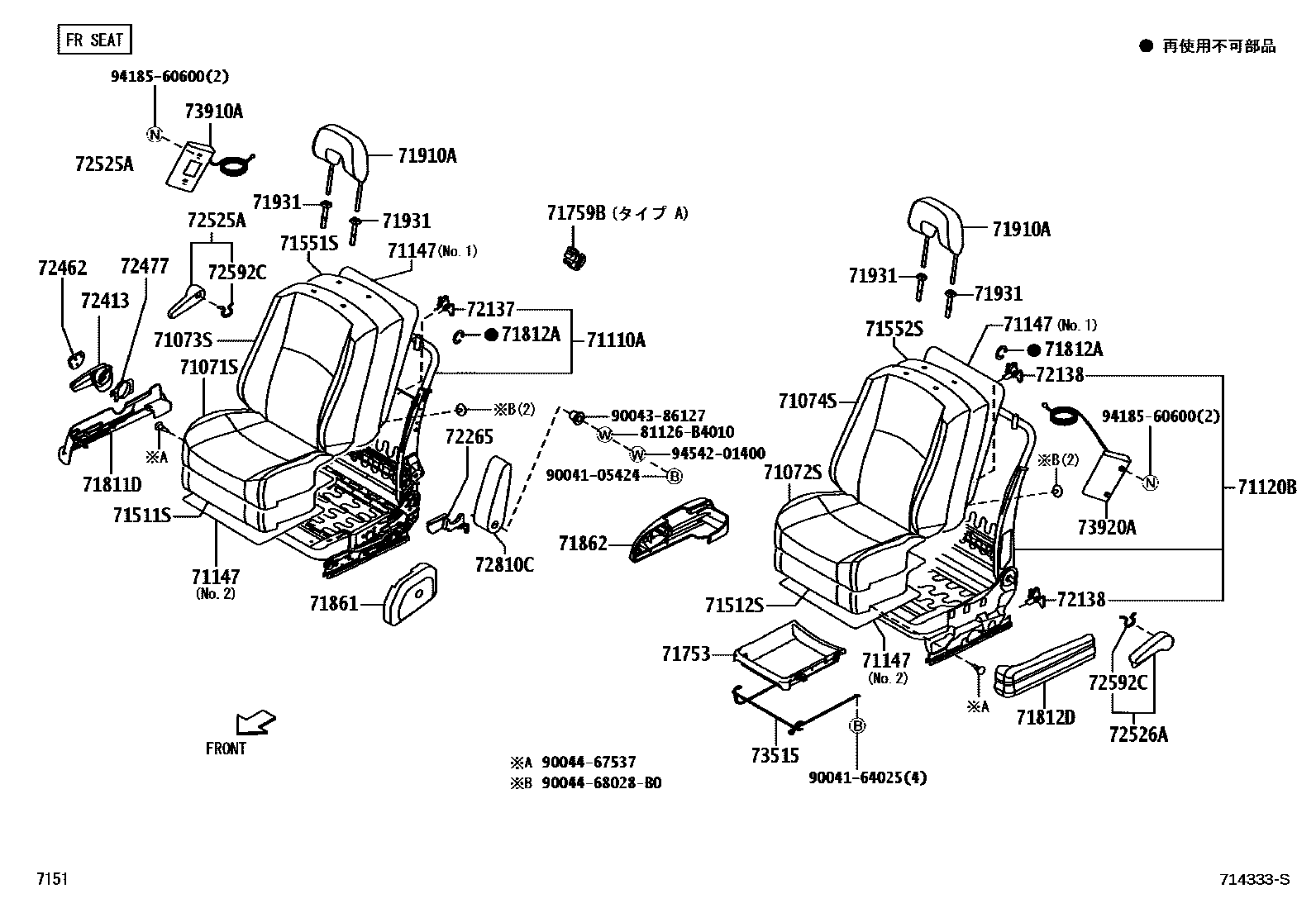

Parts diagram

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH

71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH

71147SILENCER, SEAT SPRING

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

71753TRAY, FRONT SEAT UNDER

71759BHOOK, FRONT SEATBACK

71811DSHIELD, FRONT SEAT CUSHION, RH

71812ARING, HOG, SMALL (FOR FRONT SEAT)

71812DSHIELD, FRONT SEAT CUSHION, LH

71861SHIELD, FRONT SEAT CUSHION, INNER RH

71862SHIELD, FRONT SEAT CUSHION, INNER LH

71910AHEADREST ASSY, FRONT SEAT

71931SUPPORT, FRONT SEAT HEADREST

72137COVER, SEAT TRACK, OUTER RH

72138COVER, SEAT TRACK, OUTER LH

72265COVER, SEAT TRACK UPPER RAIL, RH

72413LEVER, VERTICAL ADJUSTER LOCK

72462COVER, VERTICAL ADJUSTER RH

72477SPACER, VERTICAL ADJUSTER

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

72592CRING, SHAFT SNAP

72810CARMREST ASSY, FRONT SEAT, CENTER

73515RAIL, FRONT SEAT UNDER TRAY, NO.1

73910AAIRBAG ASSY, FRONT SEAT, RH

73920AAIRBAG ASSY, FRONT SEAT, LH

81126B4010PLATE, HEADLAMP

9004105424

9004164025

9004386127

9004467537

9004468028B0

9418560600

9454201400

41 parts on this diagram · 6 diagrams in section

SEAT & SEAT TRACK for Toyota 661140

This section contains 102 genuine Toyota parts for the SEAT & SEAT TRACK system of the Toyota 661140. Key components include: FRAME SUB-ASSY, REAR SEAT CUSHION, RH, FRAME SUB-ASSY, REAR SEAT CUSHION, LH, FRAME SUB-ASSY, REAR SEATBACK, RH, FRAME SUB-ASSY, REAR SEATBACK, LH, COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE).
