Toyota 661140 — FRONT STEERING GEAR & LINK

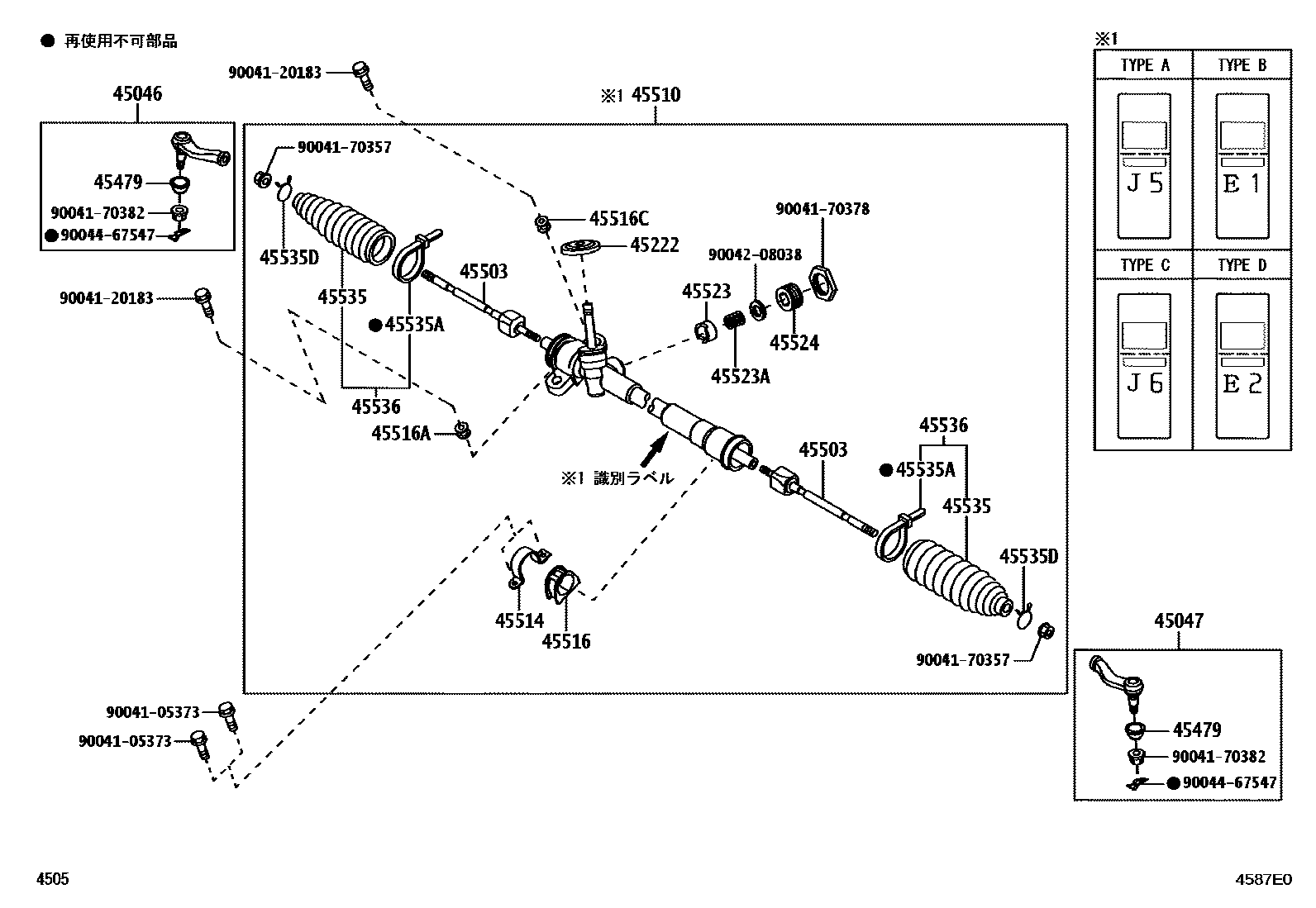

Parts diagram

45046END SUB-ASSY, TIE ROD, RH

45047END SUB-ASSY, TIE ROD, LH

45222COVER, STEERING GEAR DUST

45479SEAL, STEERING LINK JOINT DUST

45503END SUB-ASSY, STEERING RACK

45510GEAR ASSY, STEERING

45514BRACKET, STEERING RACK HOUSING, NO.1

45516GROMMET, STEERING RACK HOUSING, NO.1

45516ABUSH, STEERING RACK HOUSING, NO.1

45516CBUSH, STEERING RACK HOUSING, NO.2

45523GUIDE, RACK(FOR STEERING GEAR)

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

45524CAP, STEERING RACK GUIDE SPRING

45535BOOT, STEERING RACK, NO.1

45535ACLAMP(FOR STEERING RACK BOOT)

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

45536BOOT, STEERING RACK, NO.2

9004105373

9004120183

9004170357

9004170378

9004170382

9004208038

9004467547

24 parts on this diagram · 1 diagram in section

FRONT STEERING GEAR & LINK for Toyota 661140

This section contains 24 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota 661140. Key components include: END SUB-ASSY, TIE ROD, RH, END SUB-ASSY, TIE ROD, LH, COVER, STEERING GEAR DUST, SEAL, STEERING LINK JOINT DUST, END SUB-ASSY, STEERING RACK.
