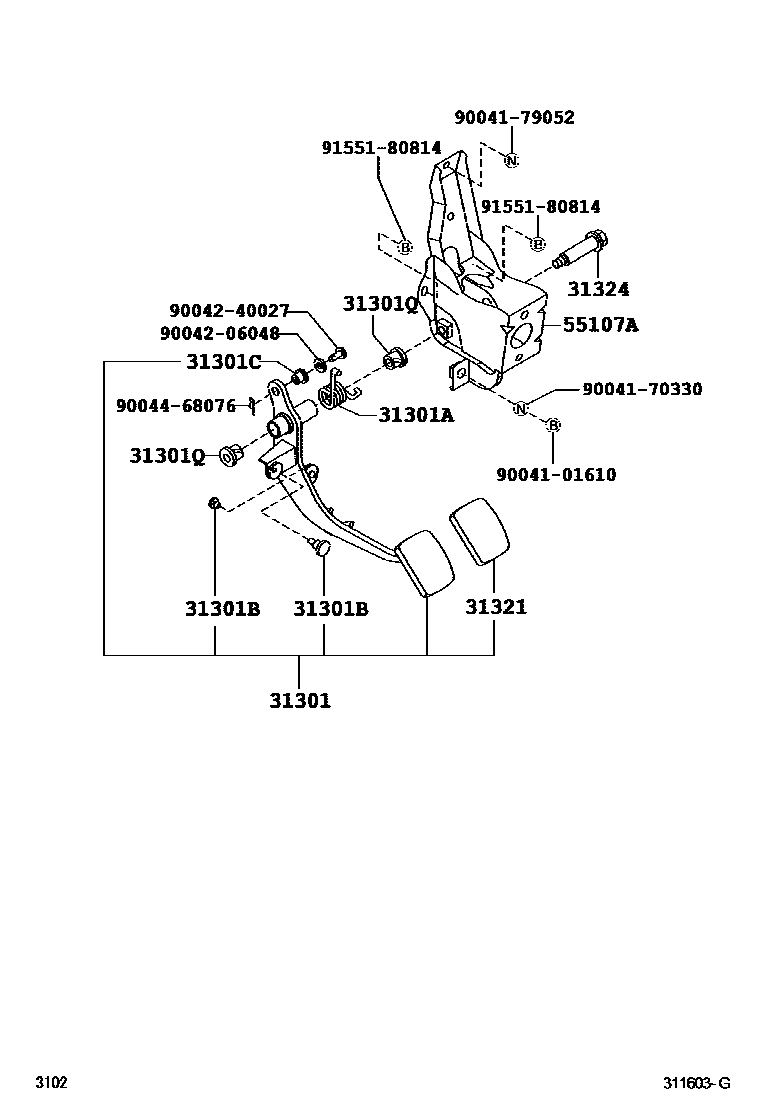

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31310-B4010iJ210..5F200601-200811

main31310-B4040iJ210..5F200811-201302

31301ASPRING(FOR CLUTCH PEDAL)

main90045-08411iJ210..5F200601-200811

main90045-08415iJ210..5F200811-201302

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90045-40158×2iJ210..5F200601-200811

31301CBUSH(FOR CLUTCH PEDAL)

main90043-86123iJ210..5F200601-200811

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main90043-86121×2iJ210..5F200601-200811

31321PAD, CLUTCH PEDAL

main31321-87204iJ210..5F200601-200811

31324SHAFT, CLUTCH PEDAL

main31324-B2010iJ210..5F200601-200811

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-B4010iJ210..5F200601-200811

main55107-B4020iJ210..5F200811-201302

9004101610

main90041-01610

9004170330

main90041-70330

9004179052

main90041-79052

9004206048

main90042-06048

9004240027

main90042-40027

9004468076

main90044-68076

9155180814

main91551-80814

15 parts on this diagram · 2 diagrams in section
