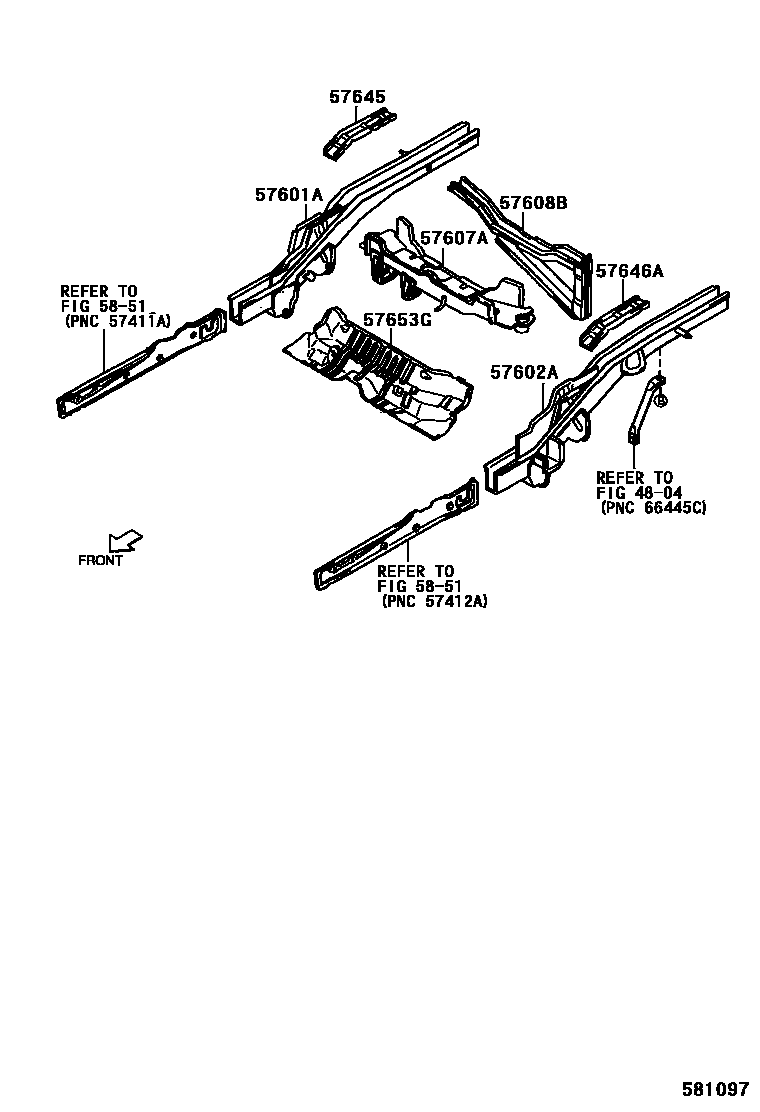

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

57601AMEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-87403iJ100199905-200005

main57601-87405iJ102,122200005

57602AMEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-87403iJ100199905-200005

main57602-87405iJ102,122200005

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-87401iJ100199905-200005

main57607-87403iJ102,122200005-200112

main57607-87406iJ102,122200112

57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-87401iJ100199905-200005

main57608-87402iJ102,122200005

57645REINFORCEMENT, REAR SIDE MEMBER, RH

main57645-87401iJ10#,122199905

57646AREINFORCEMENT, REAR SIDE MEMBER, LH

main57646-87401iJ10#,122199905

57653GMEMBER, REAR FLOOR CROSS, NO.2

main57653-87401iJ10#,122199905

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

9 parts on this diagram · 2 diagrams in section
