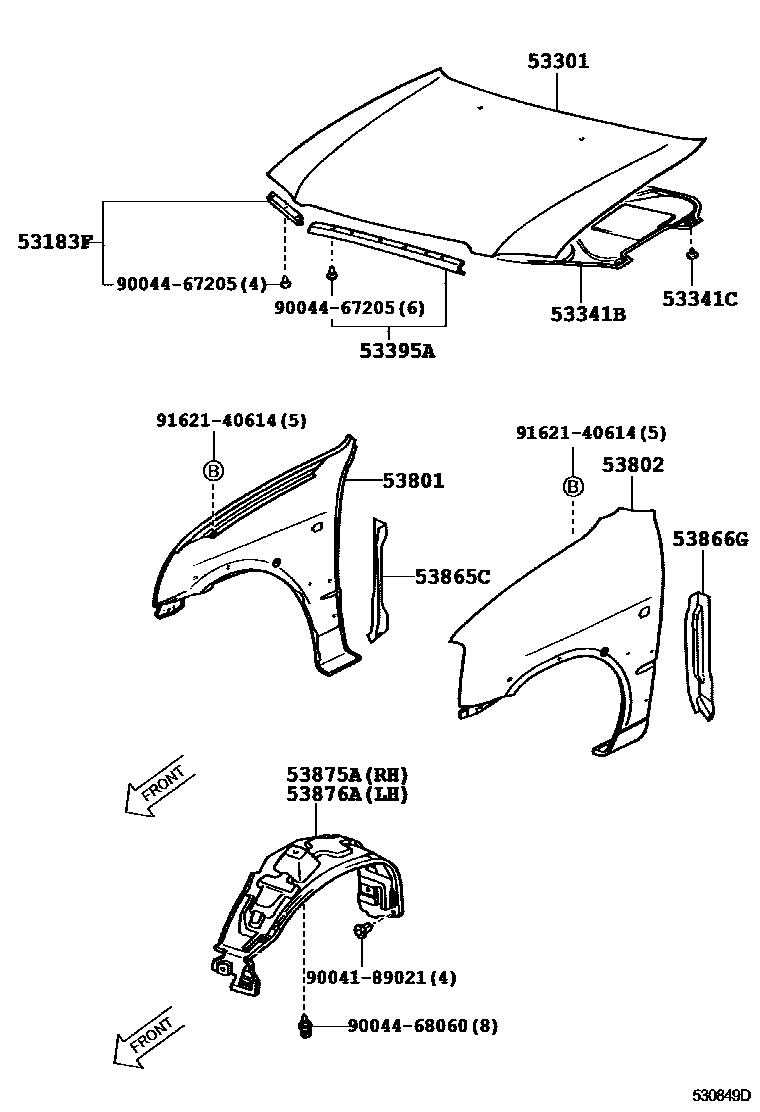

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

53183FSEAL, HEADLAMP COVER TO HOOD

main53183-87401iJ100199905-200005

53301HOOD SUB-ASSY

main53301-87402iJ100199905-200003

main53301-87405iJ10#,122..EFI200004

main53301-87406iJ102..TBO200008

53341BINSULATOR, HOOD

main53341-87401iJ100199905-200005

main53341-87402iJ102..TBO200008

main53341-87404iJ102,122..EFI200005

53341CCLIP(FOR HOOD INSULATOR)

main90044-68280×12iJ10#,122199905

53395ASEAL, HOOD TO FRONT END PANEL, NO.1

main53395-87401iJ10#,122199905

53801FENDER SUB-ASSY, FRONT RH

main53811-87401iJ10#,122199905

53802FENDER SUB-ASSY, FRONT LH

main53812-87401iJ10#,122199905

53865CPLATE, FRONT FENDER EXTENSION, RH

main53865-87401iJ10#,122199905

53866GPLATE, FRONT FENDER EXTENSION, LH

main53866-87401iJ10#,122199905

53875ALINER, FRONT FENDER, RH

main53875-87401iJ10#,122199905-200110

main53875-87402iJ102,122200111

53876ALINER, FRONT FENDER, LH

main53876-87401iJ10#,122199905-200110

main53876-87402iJ102,122200111

9004189021

main90041-89021

9004467205

main90044-67205

9004468060

main90044-68060

9162140614

main91621-40614

15 parts on this diagram · 3 diagrams in section
