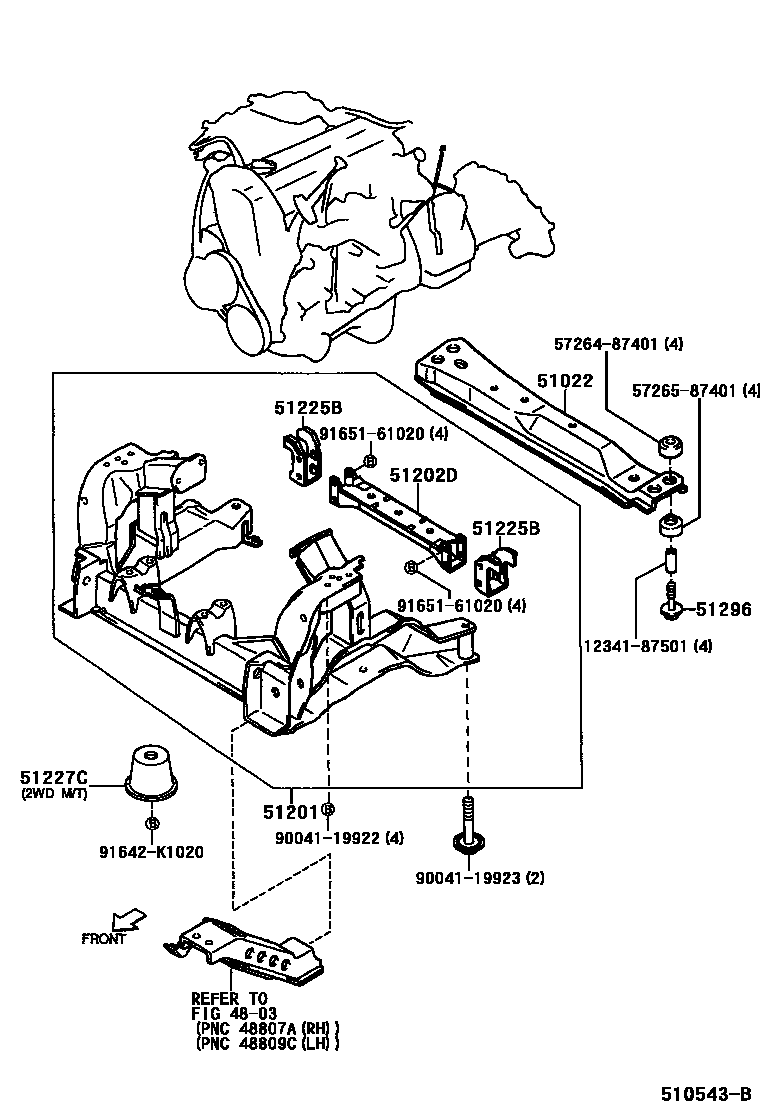

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

4803FRONT SPRING & SHOCK ABSORBER

→ Go to FIG 48-03

51022MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main51022-87401iJ10#,122199905

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51210-87401iJ100199905-200005

main51210-87405iJ102,122200005

51202DCROSSMENBER SUB-ASSY, FRONT SUSPENSION, LOWER

main51202-87401iJ10#,122199905

51225BBRACKET, FRONT SUSPENSION MEMBER, RH

main51225-87401×2iJ10#,122199905

51227CPLATE, SUSPENSION MEMBER SET, NO.2

main51227-97501iJ122200005

51296BOLT, FRONT SUSPENSION MEMBER MOUNTING

main51296-87401×4iJ10#,122199905-200111

main51296-87402×4iJ102,122200112

1234187501SPACER, ENGINE MOUNTING

main12341-87501

5726487401

main57264-87401

5726587401

main57265-87401

9004119922

main90041-19922

9004119923

main90041-19923

91642K1020

main91642-K1020

9165161020

main91651-61020

14 parts on this diagram · 2 diagrams in section
