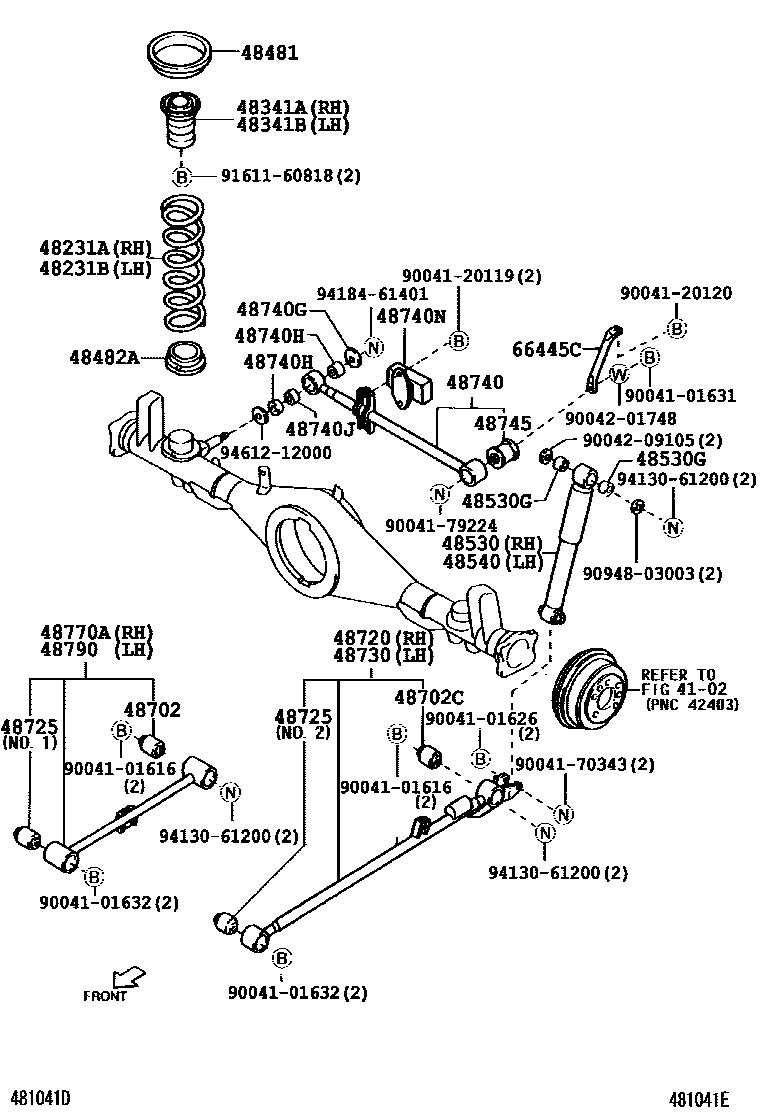

REAR SPRING & SHOCK ABSORBER
4102REAR AXLE SHAFT & HUB
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48481SEAT, REAR SPRING, UPPER
48482ASEAT, REAR SPRING, LOWER
48530ABSORBER ASSY, SHOCK, REAR RH
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48540ABSORBER ASSY, SHOCK, REAR LH
48702BUSH SUB-ASSY, UPPER CONTROL ARM
48702CBUSH SUB-ASSY, LOWER CONTROL ARM
48720ARM ASSY, LOWER CONTROL, RH
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48740GWASHER, PLATE, NO.1(FOR REAR LATERAL CONTROL ROD)
48740HBUSH, NO.1(FOR REAR LATERAL CONTROL ROD)
48740JBUSH, NO.2(FOR REAR LATERAL CONTROL ROD)
48740NDAMPER, REAR LATERAL CONTROL ROD
48745BUSH, LATERAL CONTROL ROD
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
66445CBRACE, REAR LATERAL CONTROL ROD
9004101616
main90041-01616
9004101626
main90041-01626
9004101631
main90041-01631
9004101632
main90041-01632
9004120119
main90041-20119
9004120120
main90041-20120
9004170343
main90041-70343
9004179224
main90041-79224
9004201748
main90042-01748
9004209105
main90042-09105
9094803003
main90948-03003
9161160818
main91611-60818
9413061200
main94130-61200
9418461401
main94184-61401
9461212000
main94612-12000
39 parts on this diagram · 1 diagram in section
