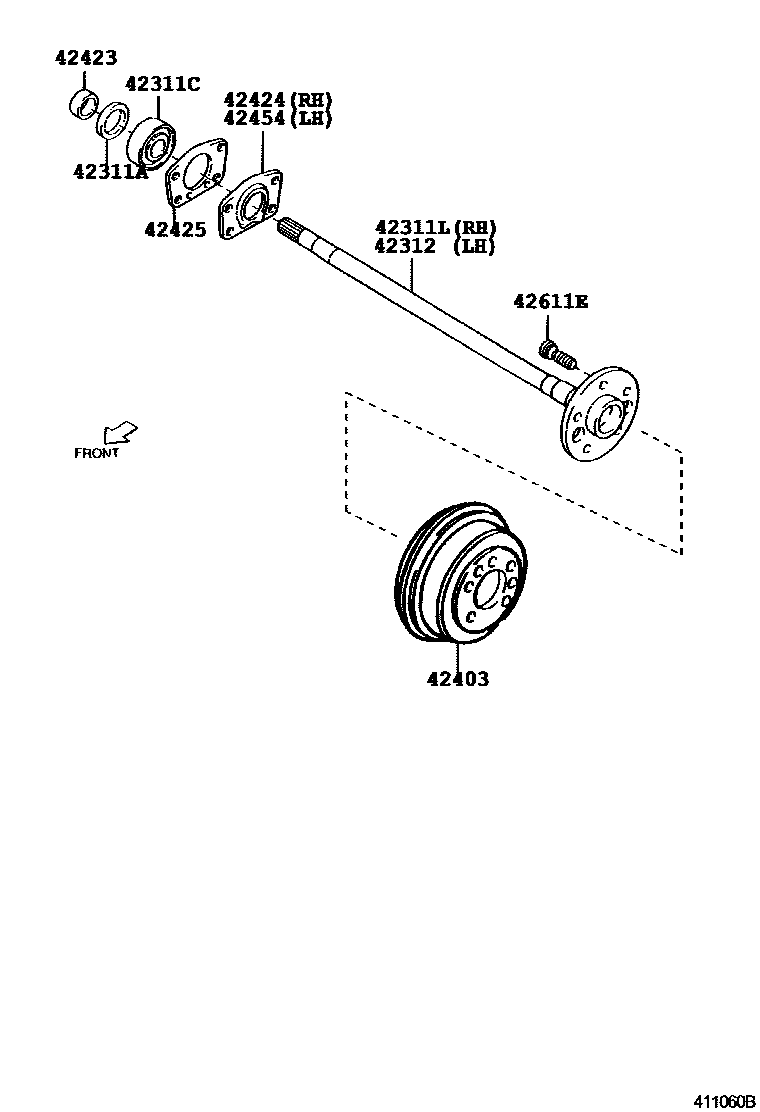

REAR AXLE SHAFT & HUB

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90043-11291×2iJ10#,122199905

42311CBEARING(FOR REAR AXLE SHAFT)

main90043-63248×2iJ10#,122199905

42311LSHAFT, REAR AXLE, RH

main42311-87401iJ10#..EFI199905

main42311-87402iJ122;J102..TBO200005

42312SHAFT, REAR AXLE, LH

main42312-87401iJ10#..EFI199905

main42312-87402iJ122;J102..TBO200005

42403DRUM SUB-ASSY, REAR BRAKE

main42431-87402×2iJ10#,122199905

42423RETAINER, REAR AXLE BEARING, INNER

main42423-87401×2iJ10#,122199905

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-87401iJ10#,122199905

42425GASKET, REAR AXLE BEARING RETAINER

main42425-87401iJ10#,122199905

main42425-87402iJ10#,122199905

main42425-87403iJ10#,122199905

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42424-87401iJ10#,122199905

42611EBOLT, HUB (FOR REAR AXLE)

main90049-12055×10iJ10#,122199905

10 parts on this diagram · 1 diagram in section
