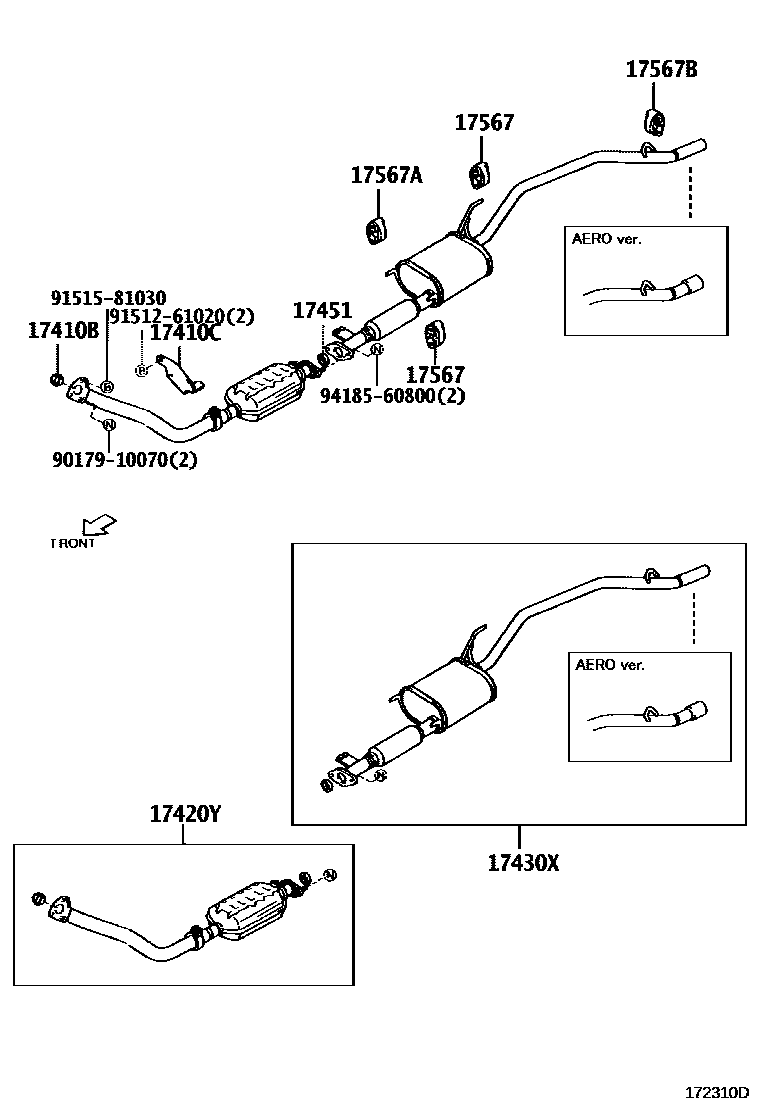

EXHAUST PIPE

0001 1HCEJ 0002 1K3VE

17410BGASKET, EXHAUST PIPE

main17451-87512iHCEJ..J100199905-200005

main17451-97501iK3VE..J102,122200005-200210

main17451-97503iK3VE..J102,122200211-200512

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-87401iHCEJ..J100199905-200005

main17571-87402iK3VE..J102,122200005-200112

17420YPIPE SET, EXHAUST, FRONT

main17401-B9030iHCEJ..J100199905-199907

main17401-B9040iK3VE..J102,122200005-200512

17430XPIPE SET, EXHAUST TAIL

main17405-B9010iHCEJ..J100199905-200005

main17405-B9020iHCEJ..J100..Q199905-200005

main17405-B9030iK3VE..J102,122..Q..EFI200402-200512

main17405-B9040iK3VE..J102..TBO200008-200401

main17405-B9050iK3VE..J102,122..EFI200005-200401

17451GASKET, EXHAUST PIPE

main17451-87512iK3VE,HCEJ..J10#,122199905-200512

17567CUSHION, EXHAUST PIPE SUPPORT

main17567-87210×2iK3VE,HCEJ..J10#,122199905-200512

17567ACUSHION, EXHAUST PIPE SUPPORT, NO.2

main17567-87215iHCEJ..J100199905-200005

17567BCUSHION, EXHAUST PIPE SUPPORT, NO.3

main17553-87603iHCEJ..J100199905-200005

main17567-87208iK3VE..J102,122200005-200512

9017910070

main90179-10070

9151261020

main91512-61020

9151581030

main91515-81030

9418560800

main94185-60800

12 parts on this diagram · 2 diagrams in section
