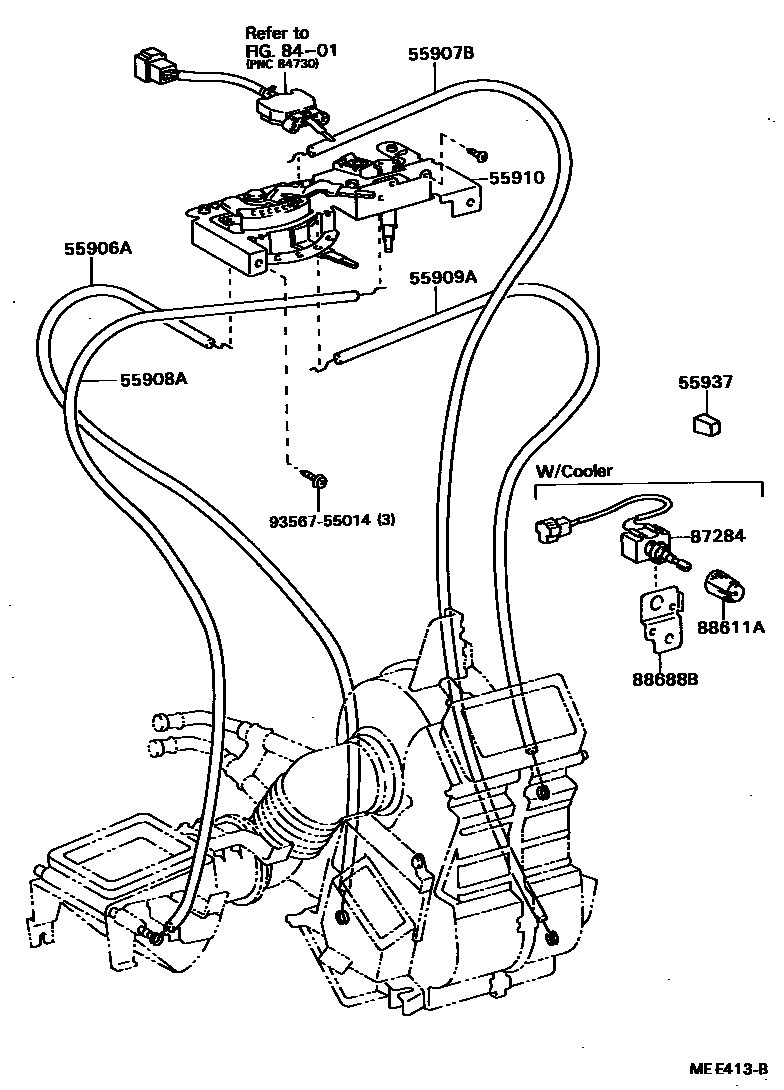

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-87602iLD2#198405-199002

55907BCABLE SUB-ASSY, TEMPERATURE DAMPER CONTROL

main55907-87603iLD2#198405-199002

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-87603iLD2#198405-199002

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-87601iLD2#198405-199002

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55902-87601iLD2#198405-198709

main55902-87603iLD2#198709-199002

55937KNOB, HEATER CONTROL LEVER

main55905-12070iLD2#198709-199002

main55937-87205iLD2#198405-198709

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87284RESISTOR SUB-ASSY, VARIABLE

main88622-87601iLD2#198405-199002

88611AKNOB, COOLER CONTROL SWITCH

main88623-87601iLD2#198405-198810

main88623-87602iLD2#198810-199002

88688BBRACKET, AIR CONDITIONER CONTROL

main88649-87612iLD2#198405-199002

9356755014

main93567-55014

11 parts on this diagram · 2 diagrams in section
