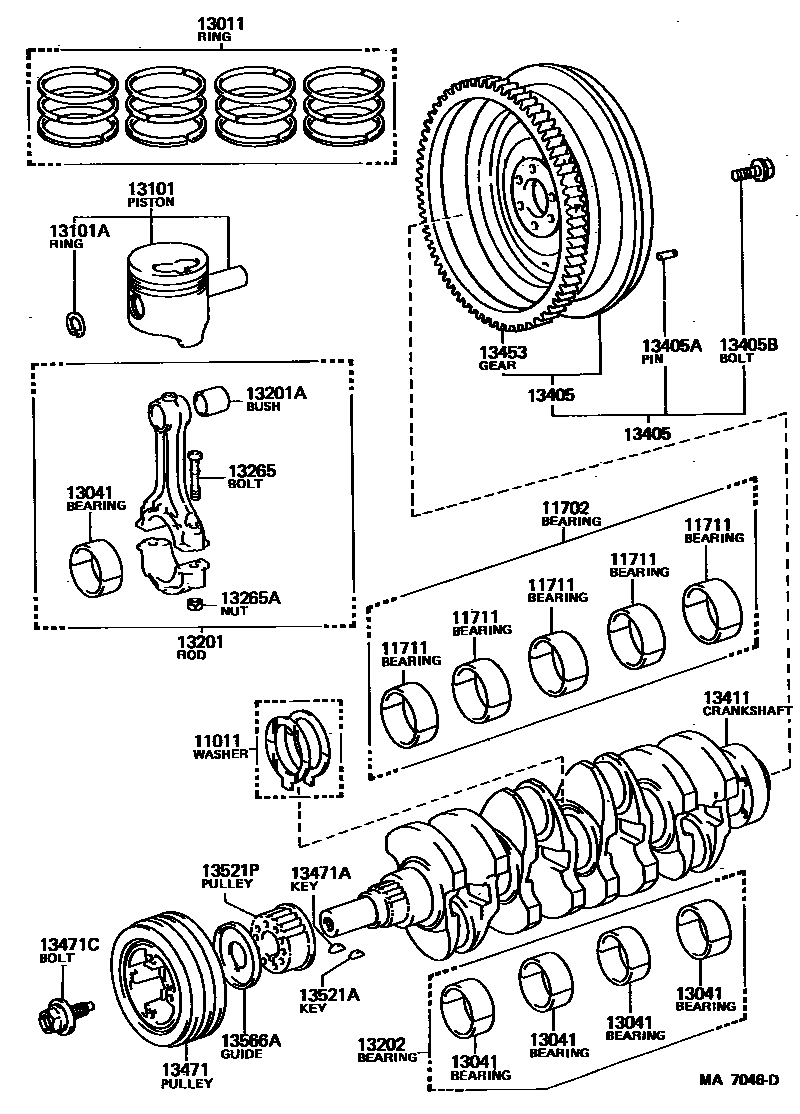

CRANKSHAFT & PISTON

11011WASHER SET, CRANKSHAFT THRUST

main11011-54010i2L#..LD2#198405-198808

main11011-54020i2L#..LD2#198808-199002

main11012-54010i2L#..LD2#198405-198808

main11012-54020i2L#..LD2#198808-199002

main11013-54010i2L#..LD2#198405-198808

main11013-54020i2L#..LD2#198808-199002

11702BEARING SET, CRANKSHAFT

main11704-54060i2L#..LD2#198405-198803

main11704-54061i2L#..LD2#198803-199002

main11705-54060i2L#..LD2#198405-198803

main11705-54061i2L#..LD2#198803-199002

11711BEARING, CRANKSHAFT

main11701-54060-01×5i2L#..LD2#198405-198803

MARK"1",MARK 1

main11701-54060-02×5i2L#..LD2#198405-198803

MARK"2",MARK 2

main11701-54060-03×5i2L#..LD2#198405-198803

MARK"3",MARK 3

main11701-54061-01×5i2L#..LD2#198803-199002

MARK"1",MARK 1

main11701-54061-02×5i2L#..LD2#198803-199002

MARK"2",MARK 2

main11701-54061-03×5i2L#..LD2#198803-199002

MARK"3",MARK 3

13011RING SET, PISTON

main13011-54060i2L#..LD20198405-198509

main13011-54061i2L#..LD2#198509-198710

main13011-54062i2L#..LD2#198710-199002

main13013-54060i2L#..LD20198405-198509

O/S 0.50

main13013-54061i2L#..LD2#198509-198710

main13013-54062i2L#..LD2#198710-199002

13041BEARING, CONNECTING ROD

main13041-54013-01×4i2L..LD20198405-198808

MARK"1",MARK 1

main13041-54013-02×4i2L..LD20198405-198808

MARK"2",MARK 2

main13041-54013-03×4i2L..LD20198405-198808

MARK"3",MARK 3

main13041-54024-01×4i2L..LD20198808-198911

MARK"1",MARK 1

main13041-54024-02×4i2L..LD20198808-198911

MARK"2",MARK 2

main13041-54024-03×4i2L..LD20198808-198911

MARK"3",MARK 3

main13041-54040-01×4i2LT..LD2#198409-198803

MARK"1",MARK 1

main13041-54040-02×4i2LT..LD2#198409-198803

MARK"2",MARK 2

main13041-54040-03×4i2LT..LD2#198409-198803

MARK"3",MARK 3

main13041-54041-01×4i2LT..LD2#198803-199002

MARK"1",MARK 1

main13041-54041-02×4i2LT..LD2#198803-199002

MARK"2",MARK 2

main13041-54041-03×4i2LT..LD2#198803-199002

MARK"3",MARK 3

13101PISTON SUB-ASSY, W/PIN

main13101-54030×4i2LT..LD2#198409-198801

main13101-54030-01×4i2LT..LD2#198801-199002

main13101-54030-02×4i2LT..LD2#198801-199002

main13101-54030-03×4i2LT..LD2#198801-199002

main13101-54060×4i2L..LD20198405-198801

main13101-54060-01×4i2L..LD20198801-198911

main13101-54060-02×4i2L..LD20198801-198911

main13101-54060-03×4i2L..LD20198801-198911

main13103-54030×4i2LT..LD2#198409-199002

main13103-54060×4i2L..LD20198405-198911

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-29003×8i2L..LD20198405-198911

main90521-31001×8i2LT..LD2#198409-199002

13201ROD SUB-ASSY, CONNECTING

main13201-59016×4i2L..LD20198405-198807

main13201-59017×4i2L..LD20198807-198911

main13201-59026×4i2LT..LD2#198409-198807

main13201-59027×4i2LT..LD2#198807-199002

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73083×4i2L..LD20198405-198807

main90999-73094×4i2LT..LD2#198409-198807

main90999-73117×4i2L..LD20198807-198911

main90999-73118×4i2LT..LD2#198807-199002

13202BEARING SET, CONNECTING ROD

main13204-54013i2L..LD20198405-198807

main13204-54024i2L..LD20198807-198911

main13204-54040i2LT..LD2#198409-198803

main13204-54041i2LT..LD2#198803-199002

main13205-54013i2L..LD20198405-198807

main13205-54024i2L..LD20198807-198911

main13205-54040i2LT..LD2#198409-198803

main13205-54041i2LT..LD2#198803-199002

13265BOLT, CONNECTING ROD

main13265-54011×8i2L#..LD2#198405-198807

main13265-54020×8i2L#..LD2#198807-199002

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90170-10005×8i2L#..LD2#198405-198807

main90179-10123×8i2L#..LD2#198807-199002

13405FLYWHEEL SUB-ASSY

main13405-54060i2L#..LD2#198805-199002

main13405-59066i2L#..LD2#198405-198805

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054×3i2L#..LD2#198405-199002

13405BBOLT, FLYWHEEL SETTING

main90105-12011×6i2L#..LD20198405-198501

*12-1.25PX29-19

main90105-12109×8i2L#..LD2#198501-199002

13411CRANKSHAFT

main13401-54021i2LT..LD2#198409-198805

main13401-54023i2LT..LD2#198805-199002

main13401-54030i2L..LD20198405-198805

main13401-54031i2L..LD20198805-198911

13453GEAR, FLYWHEEL RING

main13453-54010i2L#..LD2#198405-199002

N=101

13471PULLEY, CRANKSHAFT

main13408-54020i2L#..LD2#198405-199002

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main95161-20622i2L#..LD2#198405-199002

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-14005i2L#..LD2#198405-198910

*14-1.5PX40-31

main90119-14031i2L#..LD2#198910-199002

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main95161-20622i2L#..LD2#198405-199002

13521PPULLEY, CRANKSHAFT TIMING

main13521-54020i2L#..LD2#198405-199002

N=21

13566AGUIDE, TIMING BELT

main13566-54010i2L#..LD2#198405-198808

main13566-54040i2L#..LD2#198808-199002

23 parts on this diagram · 1 diagram in section
