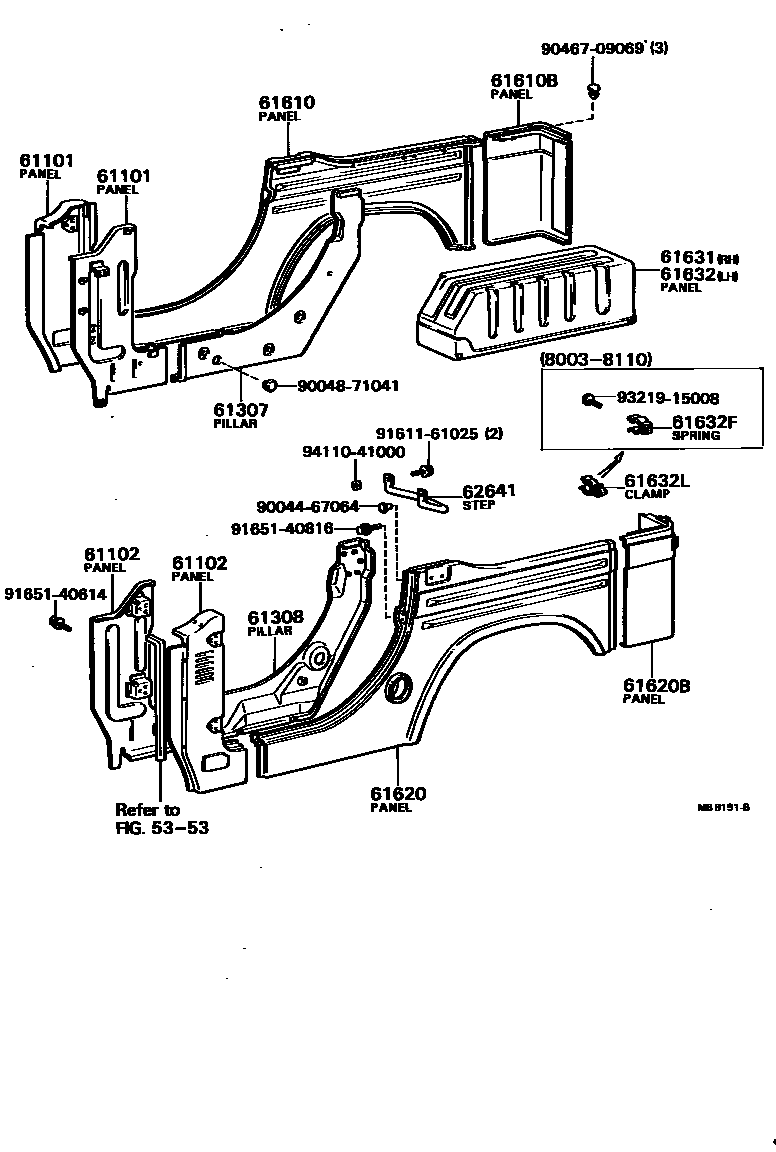

SIDE MEMBER
5353HOOD & FRONT FENDER
61101PANEL SUB-ASSY, COWL SIDE, RH
INNER
INNER
OUTER
61102PANEL SUB-ASSY, COWL SIDE, LH
INNER
INNER
OUTER
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
UPR
UPR
LWR
LWR
61308PILLAR SUB-ASSY, CENTER BODY, INNER LH
UPR
UPR
LWR
LWR
61610PANEL ASSY, REAR BODY SIDE, RH
61610BPANEL SUB-ASSY, REAR BODY CORNER, RH
61620PANEL ASSY, REAR BODY SIDE, LH
61620BPANEL SUB-ASSY, REAR BODY CORNER, LH
61631PANEL, QUARTER WHEEL HOUSE, RH
61632PANEL, QUARTER WHEEL HOUSE, LH
61632FSPRING, HANDLE SUPPORT
61632LCLAMP, JACK HANDLE
62641STEP, REAR
9004467064
main90044-67064
9004871041
main90048-71041
9046709069
main90467-09069
9161161025
main91611-61025
9165140614
main91651-40614
9165140816
main91651-40816
9321915008
main93219-15008
9411041000
main94110-41000
22 parts on this diagram · 3 diagrams in section
