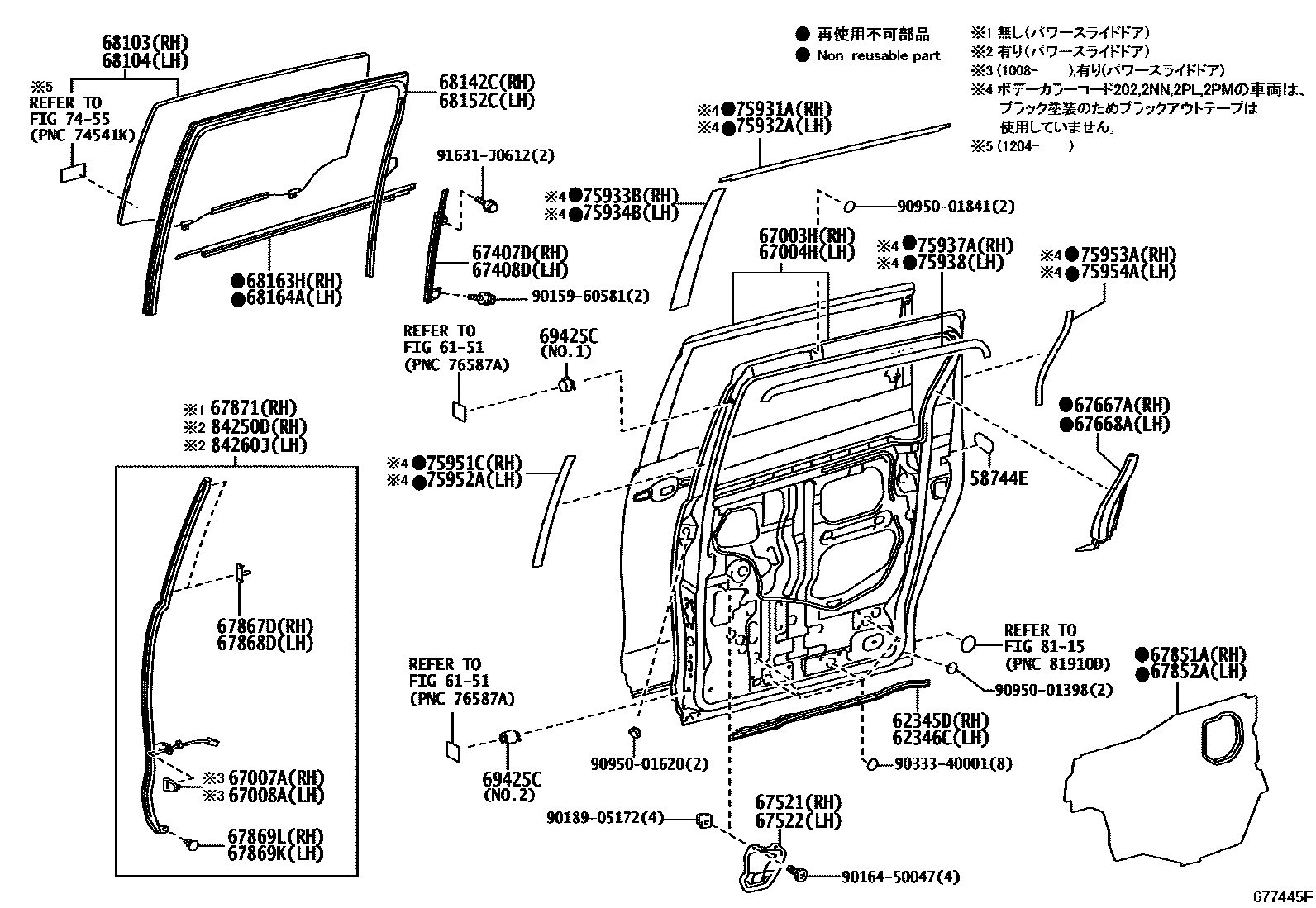

REAR DOOR PANEL & GLASS
58744EPROTECTOR, SLIDE DOOR PANEL, LH
6151SIDE MEMBER
62345DWEATHERSTRIP, SLIDE DOOR, NO.3 RH
62346CWEATHERSTRIP, SLIDE DOOR, NO.3 LH
67003HDOOR SUB-ASSY, SLIDE, RH
67004HDOOR SUB-ASSY, SLIDE, LH
67007ACOVER SUB-ASSY, SLIDE DOOR PANEL LOWER, RH
67008ACOVER SUB-ASSY, SLIDE DOOR PANEL LOWER, LH
67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67521COVER SUB-ASSY, SLIDE DOOR PANEL, RH
67522COVER SUB-ASSY, SLIDE DOOR PANEL, LH
67667AGARNISH, SLIDE DOOR WINDOW, RH
67668AGARNISH, SLIDE DOOR WINDOW, LH
67851ACOVER, SLIDE DOOR SERVICE HOLE, NO.1
67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67869KCLIP, DOOR WEATHERSTRIP, LH
67869LCLIP, REAR DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68163HWEATHERSTRIP, REAR DOOR GLASS, OUTER RH
68164AWEATHERSTRIP, REAR DOOR GLASS, OUTER LH
69425CCUSHION, SLIDE DOOR STOP
7455CAUTION PLATE
75931ATAPE, BLACK OUT, OUTER UPPER RH
75932ATAPE, BLACK OUT, OUTER UPPER LH
75933BTAPE, BLACK OUT, OUTER FRONT RH
75934BTAPE, BLACK OUT, OUTER FRONT LH
75937ATAPE, BLACK OUT, INNER UPPER RH
75938TAPE, BLACK OUT, INNER UPPER LH
75951CTAPE, BLACK OUT, INNER FRONT RH
75952ATAPE, BLACK OUT, INNER FRONT LH
75953ATAPE, BLACK OUT, INNER REAR RH
75954ATAPE, BLACK OUT, INNER REAR LH
8115REFLEX REFLECTOR
84250DSENSOR ASSY, POWER SLIDE DOOR, RH
84260JSENSOR ASSY, POWER SLIDE DOOR, LH
9015960581
main90159-60581
9016450047
main90164-50047
9018905172
main90189-05172
9033340001
main90333-40001
9095001398
main90950-01398
9095001620
main90950-01620
9095001841
main90950-01841
91631J0612
main91631-J0612
50 parts on this diagram · 2 diagrams in section
