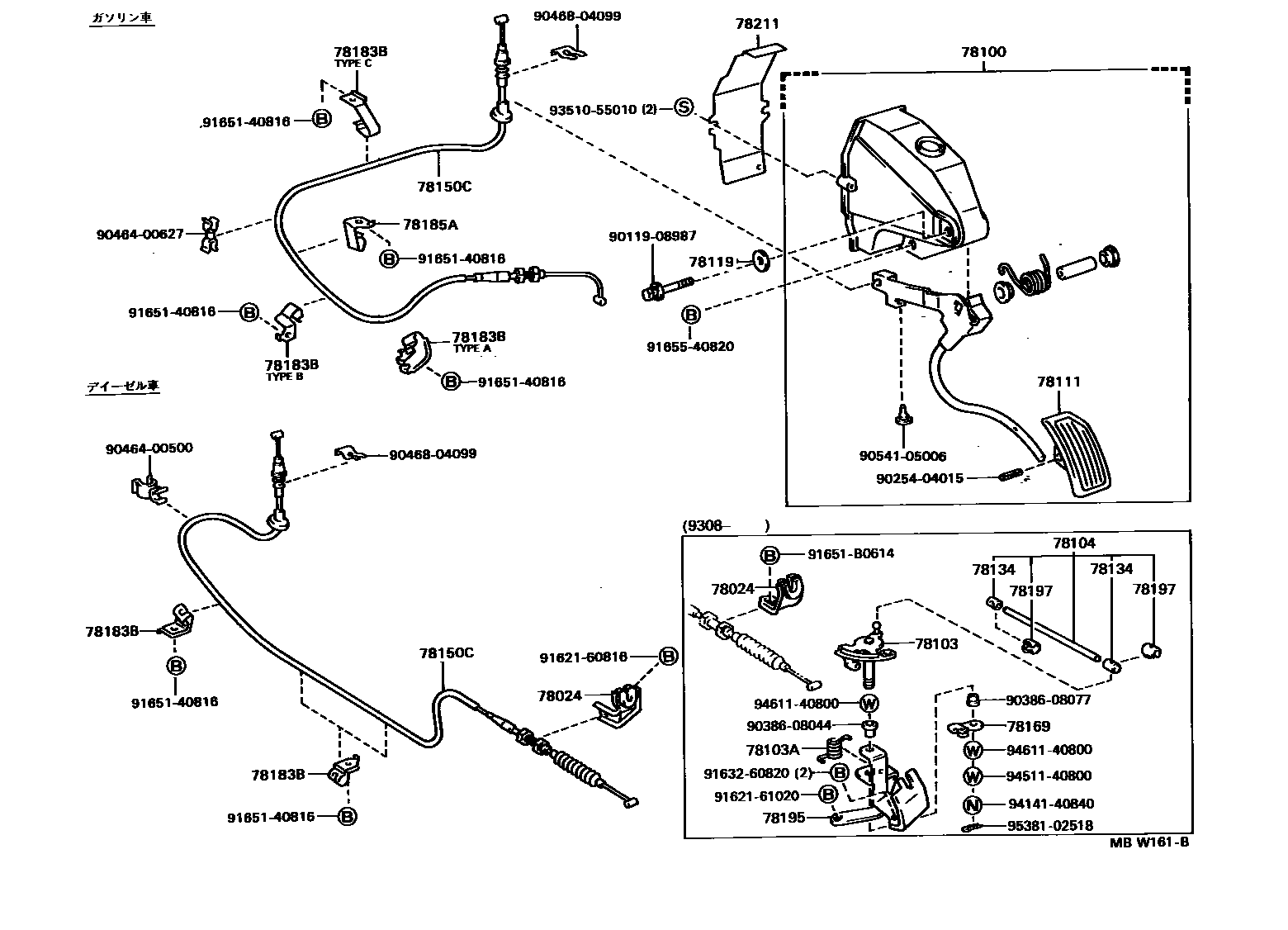

ACCELERATOR LINK

0001 1 0002 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-28010iCXR1#,2#199201-199308

main78024-32140iCXR1#,2#199308-199908

78100LINK ASSY, ACCELERATOR

main78105-28050iCXR1#,2#,TCR1#,2#199201-199203

main78105-28051iTCR1#,2#199203-199404

main78105-28052iTCR1#,2#199404-199912

main78105-28080iCXR1#,2#199203-199404

main78105-28081iCXR1#,2#199404-199908

78103ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1

main78103-28050iCXR1#,2#199308-199608

main78103-28051iCXR1#,2#199608-199908

78103ASPRING (FOR ACCELERATOR CONNECTING ROD, NO.1)

main90929-03005iCXR1#,2#199308-199908

78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2

main78104-28040iCXR1#,2#199308-199908

78111PEDAL, ACCELERATOR

main78111-28020iCXR1#,2#,TCR1#,2#199201-199912

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-95J00iCXR1#,2#,TCR1#,2#199201-199912

78134END, ACCELERATOR CONNECTING ROD

main78134-10010×2iCXR1#,2#199308-199908

78150CWIRE ASSY, ACCELERATOR FLEXIBLE

main78150-28010iCXR1#,2#199201-199203

main78150-28011iCXR1#,2#199203-199308

main78150-28012iCXR1#,2#199308-199908

main78150-28020iTCR1#,2#199201-199203

main78150-28021iTCR1#,2#199203-199912

78169HANGER, ACCELERATOR SPRING

main78169-28020iCXR1#,2#199308-199908

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-28010iTCR1#,2#199201-199912

main78183-28040iCXR1#,2#199201-199908

main78183-28060iCXR1#,2#199201-199203

main78183-28080×2iCXR1#,2#199201-199908

main78183-28090iTCR1#,2#199308-199912

main78183-28100iTCR1#,2#199201-199912

main78183-95D02iTCR10,2#..MTM199211-199608

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78183-28090iTCR1#,2#199201-199308

78195BRACKET, ACCELERATOR LINK

main78014-28030iCXR1#,2#199308-199608

main78014-28031iCXR1#,2#199608-199908

78197CLIP, ACCELERATOR JOINT BALL

main78197-10010×2iCXR1#,2#199308-199908

78211COVER, ACCELERATOR LINK ARM

main78211-28010iCXR1#,2#,TCR1#,2#199201-199912

9011908987

main90119-08987

9025404015

main90254-04015

9038608044

main90386-08044

9038608077

main90386-08077

9046400500

main90464-00500

9046400627

main90464-00627

9046804099

main90468-04099

9054105006

main90541-05006

9162160816

main91621-60816

9162161020

main91621-61020

9163260820

main91632-60820

9165140816

main91651-40816

91651B0614

main91651-B0614

9165540820

main91655-40820

9351055010

main93510-55010

9414140840

main94141-40840

9451140800

main94511-40800

9461140800

main94611-40800

9538102518

main95381-02518

34 parts on this diagram · 2 diagrams in section
