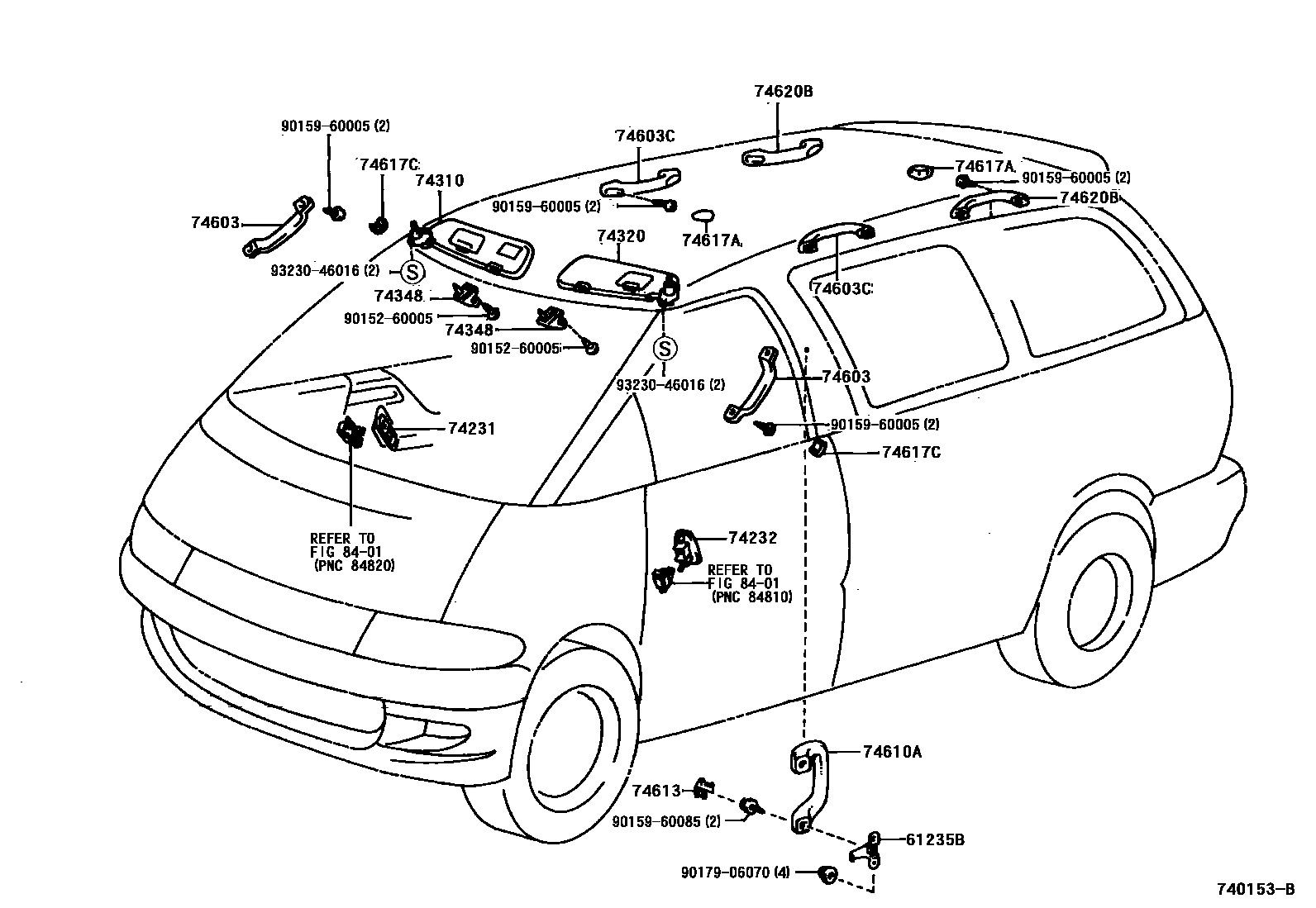

ARMREST & VISOR

61235BBRACKET, ASSIST GRIP

main61235-28010×2iCXR1#,2#,TCR1#,2#199308-199912

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-28010-03iCXR1#,2#,TCR1#,2#..G,S,X; CXR10,20,TCR10..D,F199201-199308

main74231-28010-05iCXR1#,2#,TCR1#,2#..G,X199201-199308

LIGHT GREIGE,TRIM4#

main74231-28011-B0iCXR10,20,TCR10..D,F199201-199308

main74231-28011-E1iCXR1#,2#,TCR1#,2#..G,X199201-199608

GREIGE,TRIM4#

main74231-28040-B0iCXR1#,2#,TCR1#,2#..G,S,X199201-199308

main74231-28040-E1iCXR1#,2#,TCR1#,2#..G,X199201-199308

main74231-28041-B1iCXR1#,2#,TCR1#,2#..AERAS,GLUX,XLUX199501-199804

GRAY,TRIM1#

main74231-28041-E2iCXR1#,2#,TCR1#,2#..GLUX,XLUX; TCR10,20..ATM..X;CXR1#,2#,TCR11,21..G,X199501-199608

main74231-28100iCXR10,20,TCR10,20..ATM..(X,XLUX)199712-199804

main74231-28170iCXR10,20,TCR10,20..ELU199801-199804

main74231-28171iCXR10,20,TCR10,20..ELU199804-199912

main74231-28180iCXR11,21,TCR11,21199801-199804

main74231-28181iCXR10,20,TCR10,20..ATM..X; CXR11,21,TCR11,21199804-199912

main74231-28190iCXR11,21,TCR11,21199801-199804

main74231-28191iCXR10,20,TCR10,20..ATM..X; CXR11,21,TCR11,21199804-199912

main74231-28211iCXR10,20,TCR10,20..ATM..(X,XLUX)199804-199912

main74231-28220-B0iCXR10,20,TCR10,20..X199804-199912

GRAY,TRIM1#

main74231-28230-B0iCXR10,20,TCR10,20..AERAS,X,XLUX199804-199912

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-28020-B0iCXR10,20,TCR10..D,F199201-199308

main74232-28020-E0iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199201-199608

GREIGE,TRIM4#

main74232-28060iCXR10,20,TCR10,20..ATM..(X,XLUX)199608-199712

main74232-28090iCXR10,20,TCR10,20..ELU199801-199804

main74232-28091iCXR10,20,TCR10,20..ELU199804-199912

main74232-28100iCXR11,21,TCR11,21199801-199804

main74232-28101iCXR10,20,TCR10,20..ATM..X; CXR11,21,TCR11,21199804-199912

main74232-28110-B0iCXR10,20,TCR10,20..AERAS,X,XLUX199801-199804

GRAY,TRIM1#

main74232-28140iCXR10,20,TCR10,20..ATM..(X,XLUX)199712-199804

main74232-95D01-03iCXR1#,2#,TCR1#,2#..G,S,X; CXR10,20,TCR10..D,F199201-199308

main74232-95D01-05iCXR1#,2#,TCR1#,2#..G,X199201-199308

LIGHT GREIGE,TRIM4#

74310VISOR ASSY, RH

main74310-28080-B2iCXR10,TCR1#..D,F,S199201-199308

main74310-28080-B3iCXR10..F199308-199501

main74310-28100-B2iCXR10,TCR1#..D,F,S199201-199308

LIGHT GRAY,TRIM1#

main74310-28100-B3iCXR10..F199308-199501

LIGHT GRAY,TRIM1#

main74310-28110-B1iCXR1#,TCR1#..G,X199201-199308

LIGHT GRAY,TRIM1#

main74310-28110-B2iCXR1#,TCR1#..G,GLUX,X,XLUX199308-199507

LIGHT GRAY,TRIM1#

main74310-28110-E0iCXR1#,TCR1#..G,X199201-199308

LIGHT GREIGE,TRIM4#

main74310-28110-E1iCXR1#,TCR1#..G,GLUX,X,XLUX199308-199507

LIGHT GREIGE,TRIM4#

main74310-28111-B2iCXR1#,TCR1#199507-199608

LT.GRAY,TRIM1#

main74310-28111-E1iCXR1#,TCR1#199507-199608

LT.GREIGE,TRIM4#

main74310-28120-B2iCXR20,TCR21..ATM..(F,S)199201-199308

main74310-28120-B3iCXR20..ATM..F199308-199501

main74310-28130-B1iCXR2#,TCR2#..ATM..(G,X)199201-199308

main74310-28130-B2iCXR2#,TCR2#..ATM..(G,GLUX,X,XLUX)199308-199507

main74310-28130-E0iCXR2#,TCR2#..ATM..(G,X)199201-199308

main74310-28130-E1iCXR2#,TCR2#..ATM..(G,GLUX,X,XLUX)199308-199507

main74310-28131-B2iCXR2#,TCR2#..ATM199507-199608

main74310-28131-E1iCXR2#,TCR2#..ATM199507-199608

main74310-28132-B2iCXR2#,TCR2#199608-199708

LT.GRAY,TRIM1#

main74310-28133-B2iCXR2#,TCR2#199708-199801

LT.GRAY,TRIM1#

main74310-28133-B3iCXR2#,TCR2#199801-199912

LT.GRAY,TRIM1#

main74310-28140-B2iCXR20,TCR21..ATM..(F,S)199201-199308

LIGHT GRAY,TRIM1#

main74310-28140-B3iCXR20..ATM..F199308-199501

LIGHT GRAY,TRIM1#

main74310-28150-B1iCXR2#,TCR2#..ATM..(G,X)199201-199308

LIGHT GRAY,TRIM1#

main74310-28150-B2iCXR2#,TCR2#..ATM..(G,GLUX,X,XLUX)199308-199507

LIGHT GRAY,TRIM1#

main74310-28150-E0iCXR2#,TCR2#..ATM..(G,X)199201-199308

LIGHT GREIGE,TRIM4#

main74310-28150-E1iCXR2#,TCR2#..ATM..(G,GLUX,X,XLUX)199308-199507

LIGHT GREIGE,TRIM4#

main74310-28151-B2iCXR2#,TCR2#..ATM199507-199608

LT.GRAY,TRIM1#

main74310-28151-E1iCXR2#,TCR2#..ATM199507-199608

LT.GREIGE,TRIM4#

main74310-28180-B2iCXR20,TCR21..MTM..(D,F,S)199201-199308

LIGHT GRAY,TRIM1#

main74310-28180-B3iCXR20..MTM..F199308-199501

LIGHT GRAY,TRIM1#

main74310-28190-B1iCXR2#,TCR2#..MTM..(G,X)199201-199308

LIGHT GRAY,TRIM1#

main74310-28190-B2iCXR20,TCR20..MTM..X199308-199507

LIGHT GRAY,TRIM1#

main74310-28190-E0iCXR2#,TCR2#..MTM..(G,X)199201-199308

LIGHT GREIGE,TRIM4#

main74310-28190-E1iCXR20,TCR20..MTM..X199308-199507

LIGHT GREIGE,TRIM4#

main74310-28191-B2iCXR20,TCR20..MTM199507-199608

LT.GRAY,TRIM1#

main74310-28191-E1iCXR20,TCR20..MTM199507-199608

LT.GREIGE,TRIM4#

main74310-28210-B1iCXR1#,TCR1#..G,X199201-199308

main74310-28210-B2iCXR1#,TCR1#..G,GLUX,X,XLUX199308-199507

main74310-28210-E0iCXR1#,TCR1#..G,X199201-199308

main74310-28210-E1iCXR1#,TCR1#..G,GLUX,X,XLUX199308-199507

main74310-28211-B2iCXR1#,TCR1#199507-199608

main74310-28211-E1iCXR1#,TCR1#199507-199608

main74310-28212-B2iCXR1#,TCR1#199608-199708

LT.GRAY,TRIM1#

main74310-28213-B2iCXR1#,TCR1#199708-199801

LT.GRAY,TRIM1#

main74310-28213-B3iCXR1#,TCR1#199801-199912

LT.GRAY,TRIM1#

main74310-28280-B2iCXR20,TCR21..MTM..(D,F,S)199201-199308

main74310-28280-B3iCXR20..MTM..F199308-199501

main74310-28290-B1iCXR2#,TCR2#..MTM..(G,X)199201-199308

main74310-28290-B2iCXR20,TCR20..MTM..X199308-199507

main74310-28290-E0iCXR2#,TCR2#..MTM..(G,X)199201-199308

main74310-28290-E1iCXR20,TCR20..MTM..X199308-199507

main74310-28291-B2iCXR20,TCR20..MTM199507-199608

main74310-28291-E1iCXR20,TCR20..MTM199507-199608

74320VISOR ASSY, LH

main74320-28080-B2iCXR10,20,TCR1#,21..D,F,S199201-199308

LIGHT GRAY,TRIM1#

main74320-28080-B3iCXR10,20..F199308-199501

LIGHT GRAY,TRIM1#

main74320-28090-B1iCXR1#,2#,TCR1#,2#..G,X199201-199308

LIGHT GRAY,TRIM1#

main74320-28090-B2iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199308-199608

LIGHT GRAY,TRIM1#

main74320-28090-E0iCXR1#,2#,TCR1#,2#..G,X199201-199308

LIGHT GREIGE,TRIM4#

main74320-28090-E1iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199308-199608

LIGHT GREIGE,TRIM4#

main74320-28091-B2iCXR1#,2#,TCR1#,2#199608-199708

LT.GRAY,TRIM1#

main74320-28092-B2iCXR1#,2#,TCR1#,2#199708-199801

LT.GRAY,TRIM1#

main74320-28092-B3iCXR1#,2#,TCR1#,2#199801-199912

LT.GRAY,TRIM1#

74348HOLDER, VISOR

main74348-12020-43×2iCXR1#,2#,TCR1#,2#199201-199308

LIGHT GRAY,TRIM1#

main74348-12020-45×2iCXR1#,2#,TCR1#,2#..G,X199201-199308

LIGHT GREIGE,TRIM4#

main74348-12020-B8×2iCXR1#,2#,TCR1#,2#199308-199509

GRAY,TRIM1#

main74348-12020-L1×2iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199308-199509

GREIGE,TRIM4#

main74348-26020-B1×2iCXR1#,2#,TCR1#,2#199509-199801

LT.GRAY,TRIM1#

main74348-26020-B4×2iCXR1#,2#,TCR1#,2#199801-199912

LT.GRAY,TRIM1#

main74348-26020-E1×2iCXR1#,2#,TCR1#,2#199509-199608

LT.GREIGE,TRIM4#

74603GRIP SUB-ASSY, ASSIST, FRONT

main74603-28030-B0×2iCXR1#,2#,TCR1#,2#199201-199801

LIGHT GRAY,TRIM1#

main74603-28030-B2×2iCXR1#,2#,TCR1#,2#199801-199912

LT.GRAY,TRIM1#

main74603-28030-E0×2iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199201-199608

LIGHT GREIGE,TRIM4#

74603CGRIP SUB-ASSY, ASSIST

main74603-95D00-03iCXR1#,2#,TCR1#,2#199201-199308

LIGHT GRAY,TRIM1#

main74603-95D00-05iCXR1#,2#,TCR1#,2#..G,X199201-199308

LIGHT GREIGE,TRIM4#

main74603-95D00-B0iCXR1#,2#,TCR1#,2#199801-199912

LT.GRAY,TRIM1#

main74603-95D00-B8iCXR1#,2#,TCR1#,2#199308-199801

GRAY,TRIM1#

main74603-95D00-L1iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199308-199608

GREIGE,TRIM4#

main74603-95D01-03iCXR1#,2#,TCR1#,2#199201-199308

main74603-95D01-05iCXR1#,2#,TCR1#,2#..G,X199201-199308

main74603-95D01-B0iCXR1#,2#,TCR1#,2#199801-199912

main74603-95D01-B8iCXR1#,2#,TCR1#,2#199308-199801

main74603-95D01-L1iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199308-199608

74610AGRIP SUB-ASSY, ASSIST

main74610-28020-B0iCXR1#,2#,TCR1#,2#199308-199801

GRAY,TRIM1#

main74610-28020-B1iCXR1#,2#,TCR1#,2#199801-199912

LT.GRAY,TRIM1#

main74610-28020-E0iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199308-199608

GREIGE,TRIM4#

74613PLUG, ASSIST GRIP

main74617-28040-B0iCXR1#,2#,TCR1#,2#199308-199801

main74617-28040-B1iCXR1#,2#,TCR1#,2#199801-199912

main74617-28040-E0iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199308-199608

main74617-28050-B0iCXR1#,2#,TCR1#,2#199308-199801

main74617-28050-B1iCXR1#,2#,TCR1#,2#199801-199912

main74617-28050-E0iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199308-199608

74617APLUG, ASSIST GRIP

main74617-95D00-03×8iCXR1#,2#,TCR1#,2#199201-199308

LIGHT GRAY,TRIM1#

main74617-95D00-05×8iCXR1#,2#,TCR1#,2#..G,X199201-199308

LIGHT GREIGE,TRIM4#

main74617-95D00-B1×8iCXR1#,2#,TCR1#,2#199801-199912

LT.GRAY,TRIM1#

main74617-95D00-B8×8iCXR1#,2#,TCR1#,2#199308-199801

GRAY,TRIM1#

main74617-95D00-L1×8iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199308-199608

GREIGE,TRIM4#

74617CPLUG, ASSIST GRIP

main74617-28030-B0×4iCXR1#,2#,TCR1#,2#199201-199801

LIGHT GRAY,TRIM1#

main74617-28030-B2×4iCXR1#,2#,TCR1#,2#199801-199912

LT.GRAY,TRIM1#

main74617-28030-E0×4iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199201-199608

LIGHT GREIGE,TRIM4#

74620BGRIP ASSY, ASSIST, REAR

main74603-95D00-03×2iCXR1#,2#,TCR1#,2#199201-199308

LIGHT GRAY,TRIM1#

main74603-95D00-05×2iCXR1#,2#,TCR1#,2#..G,X199201-199308

LIGHT GREIGE,TRIM4#

main74603-95D00-B0×2iCXR1#,2#,TCR1#,2#199801-199912

LT.GRAY,TRIM1#

main74603-95D00-B8×2iCXR1#,2#,TCR1#,2#199308-199801

GRAY,TRIM1#

main74603-95D00-L1×2iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199308-199608

GREIGE,TRIM4#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015260005

main90152-60005

9015960005

main90159-60005

9015960085

main90159-60085

9017906070

main90179-06070

9323046016

main93230-46016

19 parts on this diagram · 1 diagram in section
