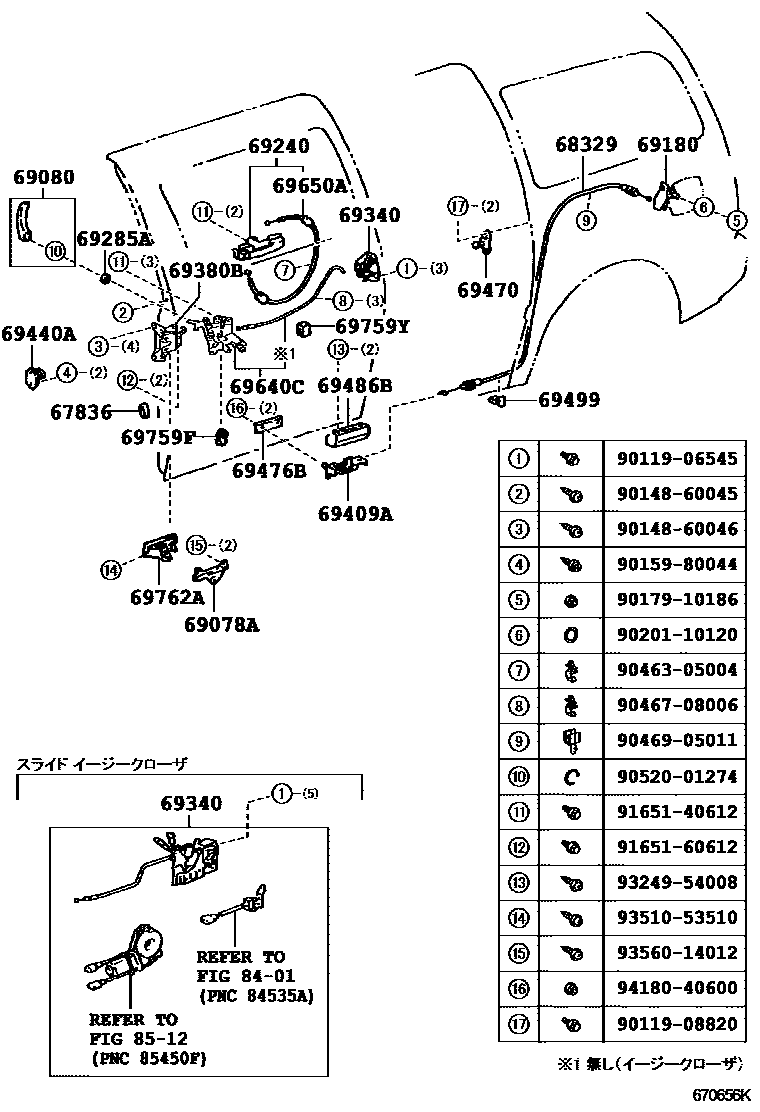

REAR DOOR LOCK & HANDLE

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-95D00iCXR1#,2#,TCR1#,2#199201-199801

68329CABLE, SLIDE DOOR HALF OPEN STOPPER

main68329-28010iCXR1#,2#,TCR1#,2#199201-199912

69078AKNOB SUB-ASSY, DOOR LOCK CONTROL, LH

main69078-95D00-03iCXR1#,2#,TCR1#,2#199201-199308

LIGHT GRAY,TRIM1#

main69078-95D00-05iCXR1#,2#,TCR1#,2#..G,X199201-199308

GREIGE,TRIM4#

main69078-95D00-B0iCXR1#,2#,TCR1#,2#..AERAS,F,G,GLUX,X,XLUX199308-199912

LIGHT GRAY,TRIM1#

main69078-95D00-B2iCXR10,20,TCR10,20..ELU199801-199912

LT.BLUISH GRAY,TRIM1#

main69078-95D00-E2iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199308-199608

LIGHT GREIGE,TRIM4#

69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH

main69070-95D00-03iCXR1#,2#,TCR1#,2#199201-199308

GRAY,TRIM1#

main69070-95D00-06iCXR1#,2#,TCR1#,2#..G,X199201-199308

LIGHT GREIGE,TRIM4#

main69070-95D00-B0iCXR1#,2#,TCR1#,2#199308-199801

GRAY,TRIM1#

main69070-95D00-B8iCXR1#,2#,TCR1#,2#..AERAS,G,X,XLUX199801-199912

BLUISH GRAY,TRIM1#

main69070-95D00-C0iCXR10,20,TCR10,20..ELU199801-199912

BLACK,TRIM1#

main69070-95D00-E2iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199308-199608

GREIGE,TRIM4#

69180CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER

main69180-28010iCXR1#,2#,TCR1#,2#199201-199912

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69230-28020-A0iCXR10,20..X;TCR10,20..ATM..X199304-199307

main69230-28020-A1iCXR10,20,TCR10,20..ATM..X199312-199407

main69230-28020-A2iTCR1#,2#..ELU,G,X,XLUX199801

main69230-28020-A3iCXR10,20,TCR10,20..ATM..X199804-199912

main69230-28020-B0iCXR11,21,TCR11,21..G199201-199308

WARM GRRY OPAL,193

main69230-28020-B1iCXR11,21,TCR11,21199308-199801

WARM GRAY OPAL,193

main69230-28020-B2iCXR1#,2#,TCR1#,2#..ELU,G,XLUX199801

main69230-28020-B3iCXR1#,2#,TCR1#,2#..ELU,G199801-199912

SILVER ME,199

main69230-28020-B4iCXR10,20,TCR10,20..ATM..X199804-199912

main69230-28020-D0iCXR10,20..X;TCR10,20..ATM..X199304-199307

main69230-28020-D1iCXR11,21,TCR11,21..G199201-199308

DEEP RED MICA,3H8

main69230-28020-D2iCXR1#,2#,TCR1#,2#..ELU,G,GLUX199608-199912

SUPER RED MICA,3J7

main69230-28020-D3iCXR11,21,TCR11,21199308-199608

DEEP RED MICA,3H8

main69230-28020-F0iCXR11,21,TCR11,21..G199201-199308

PALE YELLOW PEARE MI,573

main69230-28020-F1iCXR11,21,TCR11,21199501-199801

PL.YELLOW OP,574

main69230-28020-G2iCXR1#,2#,TCR1#,2#..ELU,G,GLUX199608-199912

GREEN ME.,6P9

main69230-28020-H0iCXR11,21,TCR11,21..G199201-199308

LIGHT TURQUOISE M.M,750

main69230-28020-H1iCXR11,21,TCR11,21199308-199608

LIGHT TURQUOISE M.M,750

main69230-28020-H2iCXR11,21,TCR11,21199308-199801

DARK TEAL GREEN M.M,751

main69230-28020-H3iCXR1#,2#,TCR1#,2#..ELU,G199801-199912

DK.TURQUOISE MC.,760

main69230-28020-J2iCXR11,21,TCR11,21..G199201-199308

BLUEISH GRAY M,8H5

main69230-28020-J4iCXR11,21,TCR11,21199308-199501

BLUISH GRAY M,8H5

main69230-28020-J5iCXR1#,2#,TCR1#,2#..ELU,G,GLUX199501-199912

DK.BLUE M.M.,8K0

main69230-95D00iCXR10,20,TCR1#,2#..AERAS,D,F,S,X,XLUX199201-199912

69285APLATE, DOOR VENT WINDOW CONTROL HANDLE

main69285-22010-08iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX; CXR10,20,TCR10,20..AERAS199608-199801

NATURAL WHITE,193 ,3J7 ,574 ,6P9 ,751 ,8K0; NATURAL WHITE,3J7

69340LOCK ASSY, REAR DOOR, LH

main69300-28030iCXR1#,2#,TCR1#,2#..GLUX,XLUX; CXR11,21,TCR11,21..G199501-199611

main69300-28031iCXR1#,2#,TCR1#,2#..ELU,GLUX,XLUX; CXR11,21,TCR11,21..G199611-199912

main69340-95D00iCXR10,20,TCR10,20..AERAS,X199801-199912

69380BLOCK ASSY, SLIDE DOOR, FRONT LH

main69380-28020iCXR1#,2#,TCR1#,2#..G,S,X199201-199501

main69380-95D00iCXR1#,2#,TCR1#,2#..AERAS,D,F,G,S,X199201-199801

69409ASTOPPER SUB-ASSY, SLIDE DOOR HALF OPEN

main69409-28010iCXR1#,2#,TCR1#,2#199201-199912

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-95D00iCXR1#,20,TCR10,20199801-199912

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-28050iCXR1#,2#,TCR1#,2#..ELU,GLUX,XLUX; CXR11,21,TCR11,21..G199501-199912

main69470-95D00iCXR10,20,TCR10,20..AERAS,X199801-199912

69476BPLATE, SLIDE DOOR HALF OPEN STOPPER

main69476-28010iCXR1#,2#,TCR1#,2#199201-199912

69486BCOVER, SLIDE DOOR HALF OPEN STOPPER

main69486-28010iCXR1#,2#,TCR1#,2#199201-199912

69499CLIP, SLIDE DOOR HALF OPEN STOPPER CABLE

main69499-28010iCXR1#,2#,TCR1#,2#199201-199912

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-28090iCXR1#,2#,TCR1#,2#..GLUX,XLUX; CXR11,21,TCR11,21..G199501-199611

main69640-28091iCXR1#,2#,TCR1#,2#..ELU,GLUX,XLUX; CXR11,21,TCR11,21..G199611-199912

main69640-28100iCXR11,21,TCR11,21199308-199501

main69640-95D00iCXR10,20..D199201-199308

main69640-95D01iCXR1#,2#,TCR1#,2#..AERAS,F,G,S,X199201-199801

main69640-95D02iCXR11,21,TCR11,21199308-199501

69650ACABLE ASSY, SLIDE DOOR LOCK CONTROL

main69650-95D00iCXR1#,2#,TCR1#,2#199201-199912

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-20110iCXR1#,20,TCR10,20199801-199912

69759YSILENCER, REAR DOOR LOCK LINK

main69759-95500×3iCXR1#,2#,TCR1#,2#199201-199308

69762ABEZEL, DOOR LOCK CONTROL KNOB, LH

main69762-95D00-03iCXR1#,2#,TCR1#,2#199201-199308

LIGHT GRAY,TRIM1#

main69762-95D00-05iCXR1#,2#,TCR1#,2#..G,X199201-199308

LIGHT GREIGE,TRIM4#

main69762-95D00-B0iCXR1#,2#,TCR1#,2#..AERAS,F,G,GLUX,X,XLUX199308-199912

LIGHT GRAY,TRIM1#

main69762-95D00-B1iCXR10,20,TCR10,20..ELU199801-199912

LT.BLUISH GRAY,TRIM1#

main69762-95D00-E2iCXR1#,2#,TCR1#,2#..G,GLUX,X,XLUX199308-199608

LIGHT GREIGE,TRIM4#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8512AUTOMATIC DOOR

→ Go to FIG 85-12

9011906545

main90119-06545

9011908820

main90119-08820

9014860045

main90148-60045

9014860046

main90148-60046

9015980044

main90159-80044

9017910186

main90179-10186

9020110120

main90201-10120

9046305004

main90463-05004

9046708006

main90467-08006

9046905011

main90469-05011

9052001274

main90520-01274

9165140612

main91651-40612

9165160612

main91651-60612

9324954008

main93249-54008

9351053510

main93510-53510

9356014012

main93560-14012

9418040600

main94180-40600

39 parts on this diagram · 1 diagram in section
