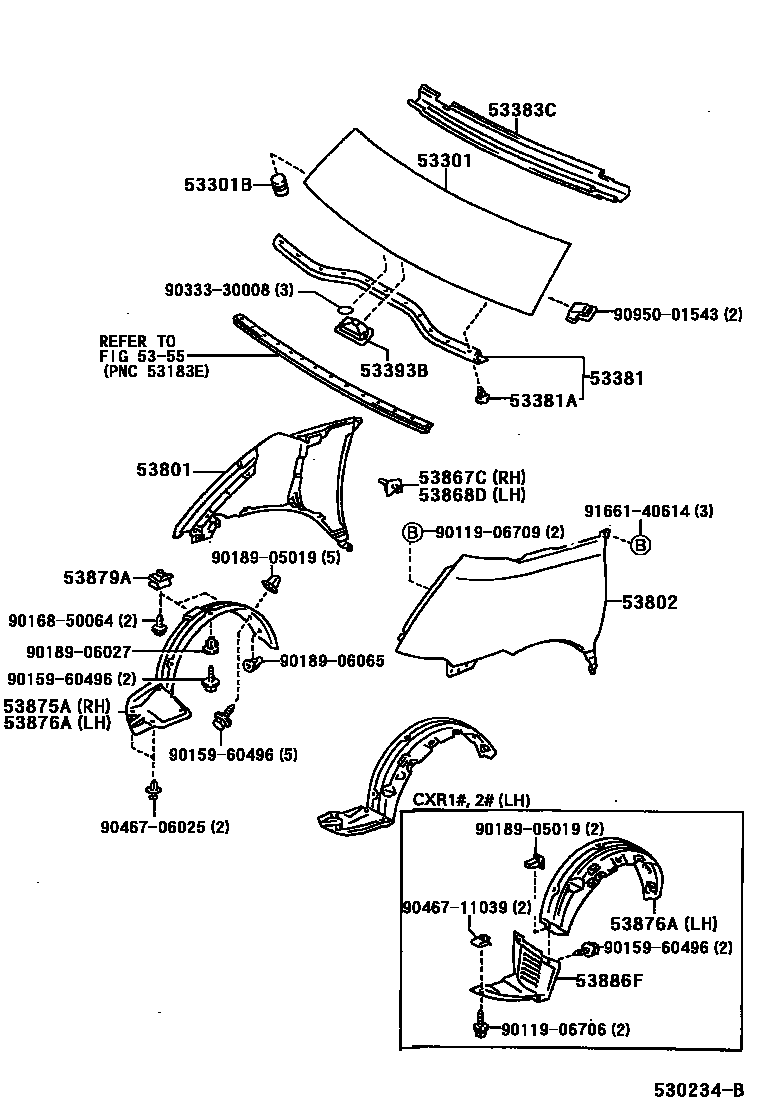

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-28010iCXR1#,2#,TCR1#,2#199201-199501

main53301-28011iCXR1#,2#,TCR1#,2#199501-199912

main53301-28020iCXR1#,2#,TCR1#,2#199201-199501

main53301-28021iCXR1#,2#,TCR1#,2#199501-199912

53301BCUSHION, HOOD BUMPER

main90541-15004iCXR1#,2#,TCR1#,2#199201-199912

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-28010iCXR1#,2#199201-199908

main53381-28030iTCR1#,2#199608-199912

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iCXR1#,2#,TCR1#,2#199201-199912

53383CSEAL, HOOD TO COWL TOP

main53383-28010iCXR1#,2#,TCR1#,2#199201-199912

53393BPROTECTOR, HOOD, FRONT

main53393-28010iCXR1#,2#,TCR1#,2#199201-199912

5355FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-55

53801FENDER SUB-ASSY, FRONT RH

main53801-28030iCXR1#,2#,TCR1#,2#199201-199912

53802FENDER SUB-ASSY, FRONT LH

main53802-28030iCXR1#,2#,TCR1#,2#199201-199912

53867CRETAINER, FRONT SIDE PANEL, RH

main53867-28010iCXR1#,2#,TCR1#,2#199201-199912

53868DRETAINER, FRONT SIDE PANEL, LH

main53867-28010iCXR1#,2#,TCR1#,2#199201-199912

53875ALINER, FRONT FENDER, RH

main53875-28010iCXR1#,2#,TCR1#,2#199201-199501

main53875-28020iCXR1#,2#,TCR1#,2#199501-199608

main53875-28040iCXR1#,2#,TCR1#,2#199608-199912

53876ALINER, FRONT FENDER, LH

main53876-28010iTCR1#,2#199201-199501

main53876-28020iCXR1#,2#199201-199908

main53876-28030iTCR1#,2#199501-199608

main53876-28050iTCR1#,2#199608-199912

53879ARETAINER, FRONT FENDER LINER

main53879-14010iCXR1#,2#,TCR1#,2#199201-199912

53886FSHIELD, FRONT FENDER SPLASH, REAR LH

main53886-28020iCXR1#,2#199201-199501

main53886-28040iCXR1#,2#199501-199608

main53886-28070iCXR1#,2#199608-199908

9011906706

main90119-06706

9011906709

main90119-06709

9015960496

main90159-60496

9016850064

main90168-50064

9018905019

main90189-05019

9018906027

main90189-06027

9018906065

main90189-06065

9033330008

main90333-30008

9046706025

main90467-06025

9046711039

main90467-11039

9095001543

main90950-01543

9166140614

main91661-40614

27 parts on this diagram · 1 diagram in section
