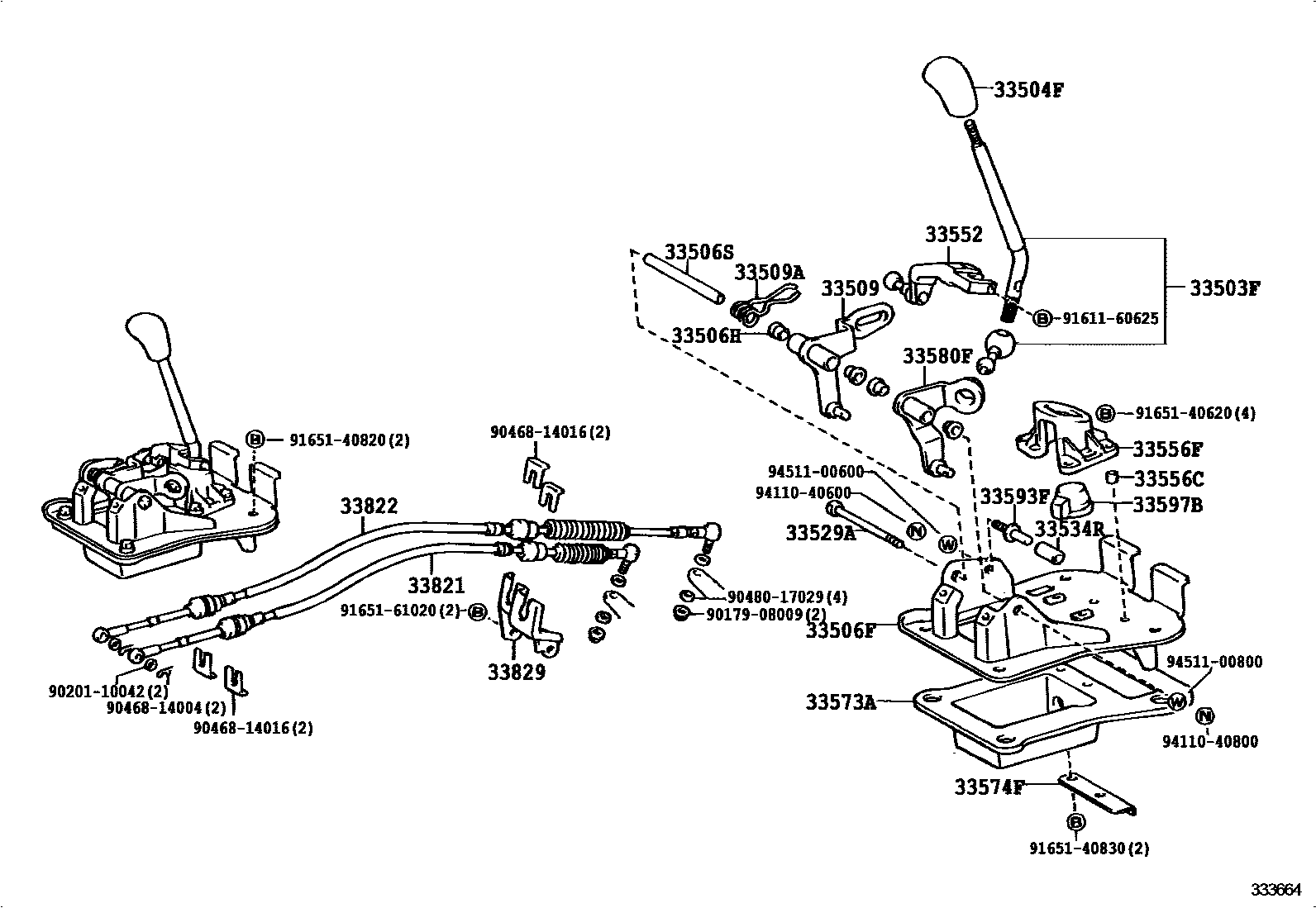

SHIFT LEVER & RETAINER

0001 1G53 0002 1W56

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-28120iCXR1#,2#..MTM199201-199308

main33055-28121iCXR10,20..MTM199308-199908

main33055-28130iTCR10,2#..MTM199201-199308

main33055-28131iTCR10,20..MTM199308-199608

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-B1iCXR1#,2#,TCR10,2#..MTM..(EFI,TD)199201-199608

GRAY,TRIM1#

main33504-12180-E2iCXR1#,2#,TCR10,2#..MTM..(G,X)..(EFI,TD)199201-199608

GREIGE,TRIM4#

main33504-20110-B1iCXR10,20..MTM199308-199801

BLUISH GRAY,TRIM1#

main33504-20110-E2iCXR10,20..MTM..X199308-199608

MI.GRAIGE,TRIM4#

main33504-20110-P0iCXR10,20..MTM199801-199908

SHADOW GRAY,TRIM1#

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-28160iTCR10,2#..MTM199201-199608

main33506-28170iCXR1#,2#..MTM199201-199908

33506HBUSH (FOR SHIFT LEVER RETAINER)

main90386-12013×4iTCR10,2#..MTM199201-199302

main90386-12034×4iTCR10,2#..MTM199303-199608

33506SCOLLAR, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main90387-08113iTCR10,2#..MTM199201-199608

33509CRANK SUB-ASSY, SELECTING BELL, NO.1

main33509-28010iTCR10,2#..MTM199201-199608

main33509-28020iCXR1#,2#..MTM199201-199908

33509ASPRING, TORSION (FOR SELECTING BELL CRANK)

main90508-30008iTCR10,2#..MTM199201-199212

main90949-03001iCXR1#,2#..MTM199201-199908

main90949-03014iTCR10,2#..MTM199212-199608

33529APLATE, SHIFT LEVER HOUSING, NO.2

main33529-28090×4iTCR10,2#..MTM199201-199608

33534RCUSHION (FOR SELECTING BELLCRANK NO.1)

main90540-08024iTCR10,2#..MTM199201-199608

33552ARM, SHIFT LEVER

main33552-28011iTCR10,2#..MTM199201-199608

33556CCOLLAR (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90387-06054×4iTCR10,2#..MTM199201-199608

main90387-08129iCXR1#,2#..MTM199201-199908

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-27020iCXR1#,2#..MTM199201-199908

main33556-28050iTCR10,2#..MTM199201-199608

33573ACOVER, CONTROL SHAFT DUST, LWR

main33573-28020iTCR10,2#..MTM199201-199608

33574FRETAINER, DUST SEAL (FOR FLOOR SHIFT)

main33574-28020iTCR10,2#..MTM199201-199608

33580FBELLCRANK ASSY, SHIFTING (FOR FLOOR SHIFT)

main33580-28030iTCR10,2#..MTM199201-199608

33593FHOLDER, SPRING (FOR FLOOR SHIFT)

main33593-28070iTCR10,2#..MTM199201-199608

33597BSEAT, SHIFT LEVER, NO.1 (FOR FLOOR SHIFT)

main33597-28010iTCR10,2#..MTM199201-199608

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-28090iTCR10,2#..MTM199201-199608

main33821-28110iCXR1#,2#..MTM199201-199908

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-28090iTCR10,2#..MTM199201-199608

main33822-28110iCXR1#,2#..MTM199201-199908

33829SUPPORT, TRANSMISSION CONTROL CABLE

main33829-28021iTCR10,2#..MTM199201-199608

main33829-28040iCXR1#,2#..MTM199201-199908

9017908009

main90179-08009

9020110042

main90201-10042

9046814004

main90468-14004

9046814016

main90468-14016

9048017029

main90480-17029

9161160625

main91611-60625

9165140620

main91651-40620

9165140820

main91651-40820

9165140830

main91651-40830

9165161020

main91651-61020

9411040600

main94110-40600

9411040800

main94110-40800

9451100600

main94511-00600

9451100800

main94511-00800

34 parts on this diagram · 2 diagrams in section
