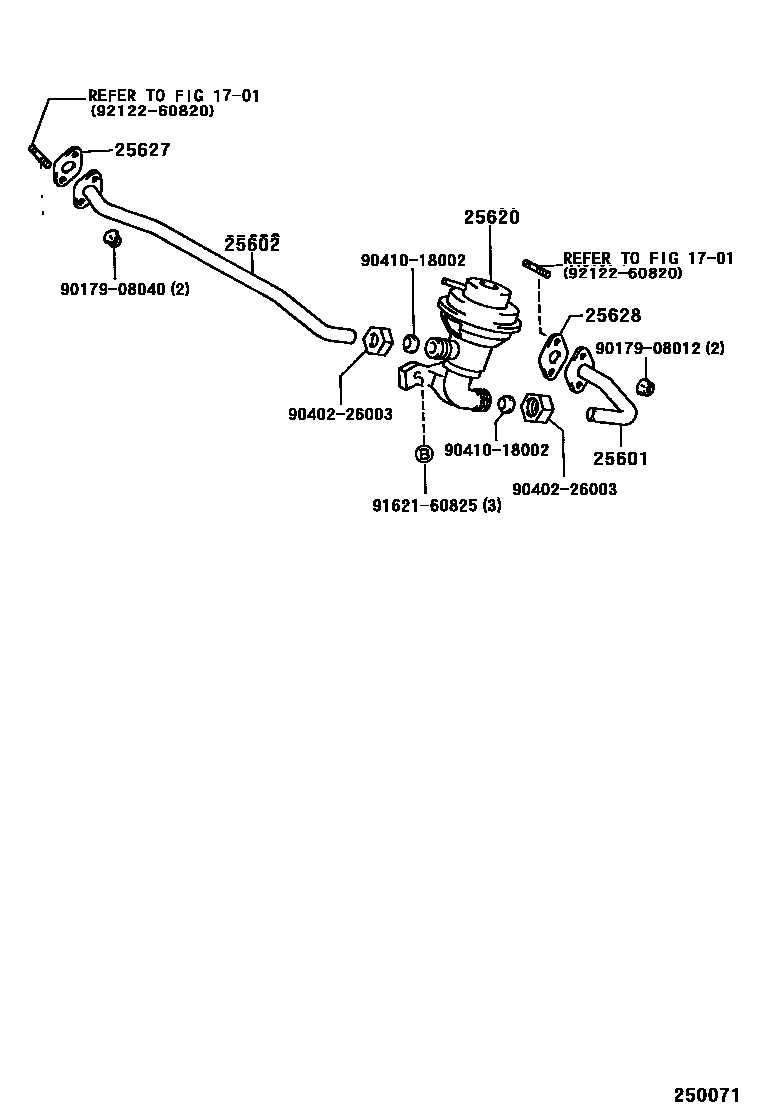

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1701MANIFOLD

→ Go to FIG 17-01

25601PIPE SUB-ASSY, EGR, NO.1

main25601-64060i3CT#..CXR1#,2#199201-199707

main25601-64061i3CTE..CXR1#,2#199707-199908

main25601-76010i2TZFE..TCR1#,2#199201-199608

25602PIPE SUB-ASSY, EGR, NO.2

main25602-64010i3CT#..CXR1#,2#199201-199908

25620VALVE ASSY, EGR

main25620-64090i3CT#..CXR1#,2#199201-199608

main25620-64190i3CTE..CXR1#,2#199608-199908

main25620-76010i2TZFE..TCR1#,2#199201-199608

25627GASKET, EGR VALVE

main25627-64050i3CT#..CXR1#,2#199201-199908

main25627-76010i2TZFE..TCR1#,2#199201-199608

25628GASKET, EGR INLET

main25628-64030i3CT#..CXR1#,2#199201-199908

main25628-76010i2TZFE..TCR1#,2#199201-199608

9017908012

main90179-08012

9017908040

main90179-08040

9040226003

main90402-26003

9041018002

main90410-18002

9162160825

main91621-60825

11 parts on this diagram · 2 diagrams in section
