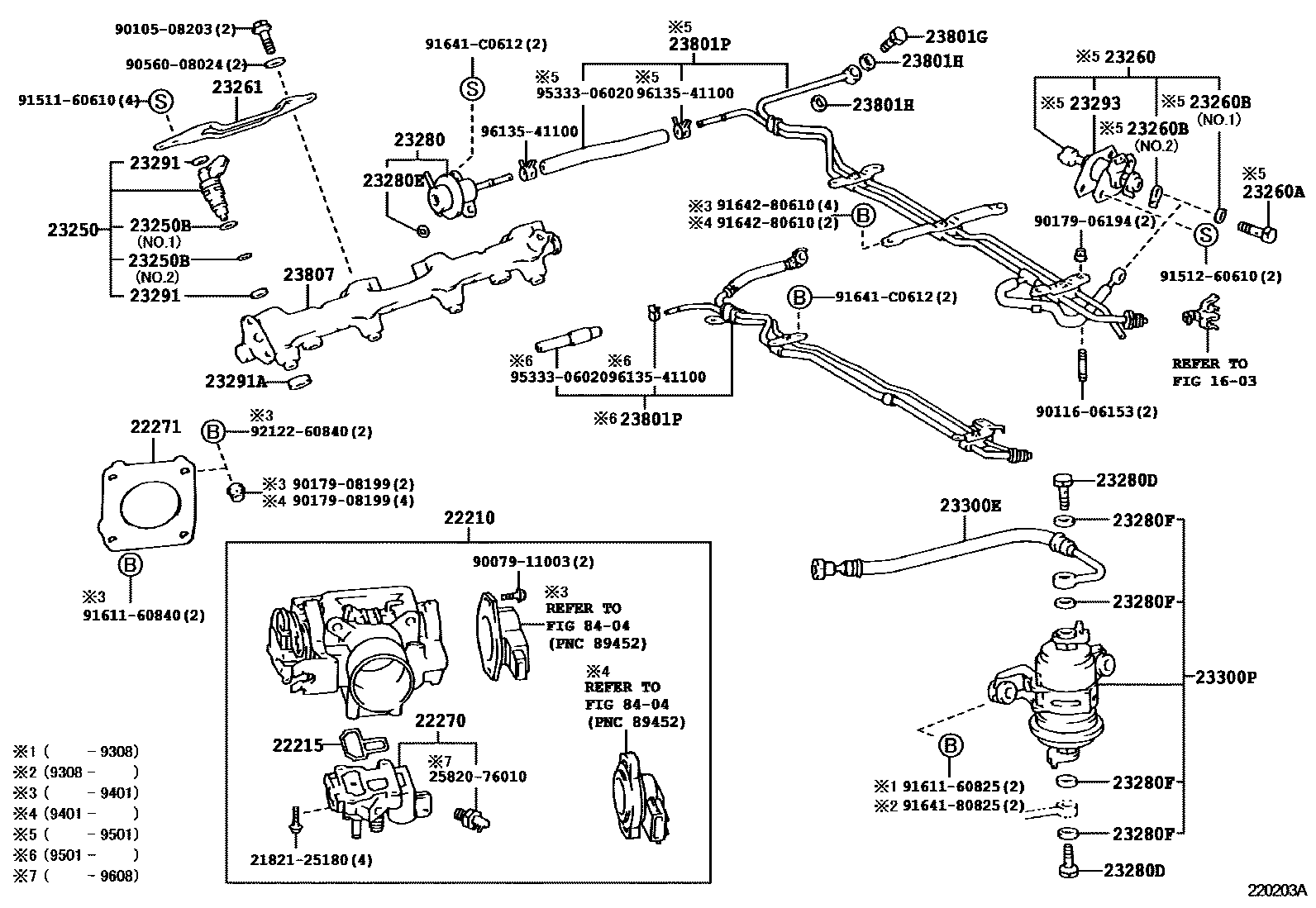

FUEL INJECTION SYSTEM

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22210BODY ASSY, THROTTLE

main22210-76021i2TZFE..TCR1#,2#199201-199608

main22210-76060i2TZFE..TCR1#,2#199608-199912

22215GASKET, THROTTLE BODY COVER

main22215-76010i2TZFE..TCR1#,2#199201-199912

22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)

main22270-76010i2TZFE..TCR1#,2#199201-199608

main22270-76030i2TZFE..TCR1#,2#199608-199912

22271GASKET, THROTTLE BODY

main22271-76010i2TZFE..TCR1#,2#199201-199912

23250INJECTOR ASSY, FUEL

main23209-79045i2TZFE..TCR1#,2#199201-199912

23250BRING, O(FOR FUEL INJECTOR)

main90301-14006i2TZFE..TCR1#,2#199201-199912

main90301-17007i2TZFE..TCR1#,2#199201-199912

23260INJECTOR ASSY, COLD START FUEL

main23260-79205i2TZFE..TCR1#,2#199201-199501

23260ABOLT, UNION

main90401-08003i2TZFE..TCR1#,2#199201-199501

23260BGASKET

main90430-08014i2TZFE..TCR1#,2#199201-199501

main90430-08015i2TZFE..TCR1#,2#199201-199501

23261COVER, INJECTOR

main23261-76010i2TZFE..TCR1#,2#199201-199912

23280REGULATOR ASSY, FUEL PRESSURE

main23280-76010i2TZFE..TCR1#,2#199201-199912

23280DBOLT, UNION(FOR FUEL PIPE OR HOSE SET)

main90401-12097i2TZFE..TCR1#,2#199201-199912

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i2TZFE..TCR1#,2#199201-199812

main90301-07024i2TZFE..TCR1#,2#199812-199912

23280FGASKET(FOR FUEL PRESSURE REGULATOR)

main90430-12026i2TZFE..TCR1#,2#199201-199912

23291INSULATOR, INJECTOR VIBRATION

main23291-75020i2TZFE..TCR1#,2#199201-199912

23291AINSULATOR, INJECTOR VIBRATION

main23291-76010i2TZFE..TCR1#,2#199201-199912

23293GASKET, COLD START INJECTOR

main23293-75010i2TZFE..TCR1#,2#199201-199501

23300EHOSE, FUEL

main90923-01391i2TZFE..TCR1#,2#199201-199912

23300PFILTER, FUEL(FOR EFI)

main23300-79285i2TZFE..TCR1#,2#199201-199912

23801GBOLT, UNION(FOR FUEL PIPE)

main90401-12097i2TZFE..TCR1#,2#199201-199912

23801HGASKET(FOR FUEL PIPE)

main90430-12026i2TZFE..TCR1#,2#199201-199912

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-76020i2TZFE..TCR1#,2#199201-199501

main23801-76030i2TZFE..TCR1#,2#199501-199608

main23801-76040i2TZFE..TCR1#,2#199608-199912

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-76010i2TZFE..TCR1#,2#199201-199912

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

2182125180SCREW, 2ND THROTTLE VALVE SET

main21821-25180

2582076010VALVE ASSY, BIMETAL, NO.2

main25820-76010

9007911003

main90079-11003

9010508203

main90105-08203

9011606153

main90116-06153

9017906194

main90179-06194

9017908199

main90179-08199

9056008024

main90560-08024

9151160610

main91511-60610

9151260610

main91512-60610

9161160825

main91611-60825

9161160840

main91611-60840

9164180825

main91641-80825

91641C0612

main91641-C0612

9164280610

main91642-80610

9212260840

main92122-60840

9533306020

main95333-06020

9613541100

main96135-41100

43 parts on this diagram · 2 diagrams in section
