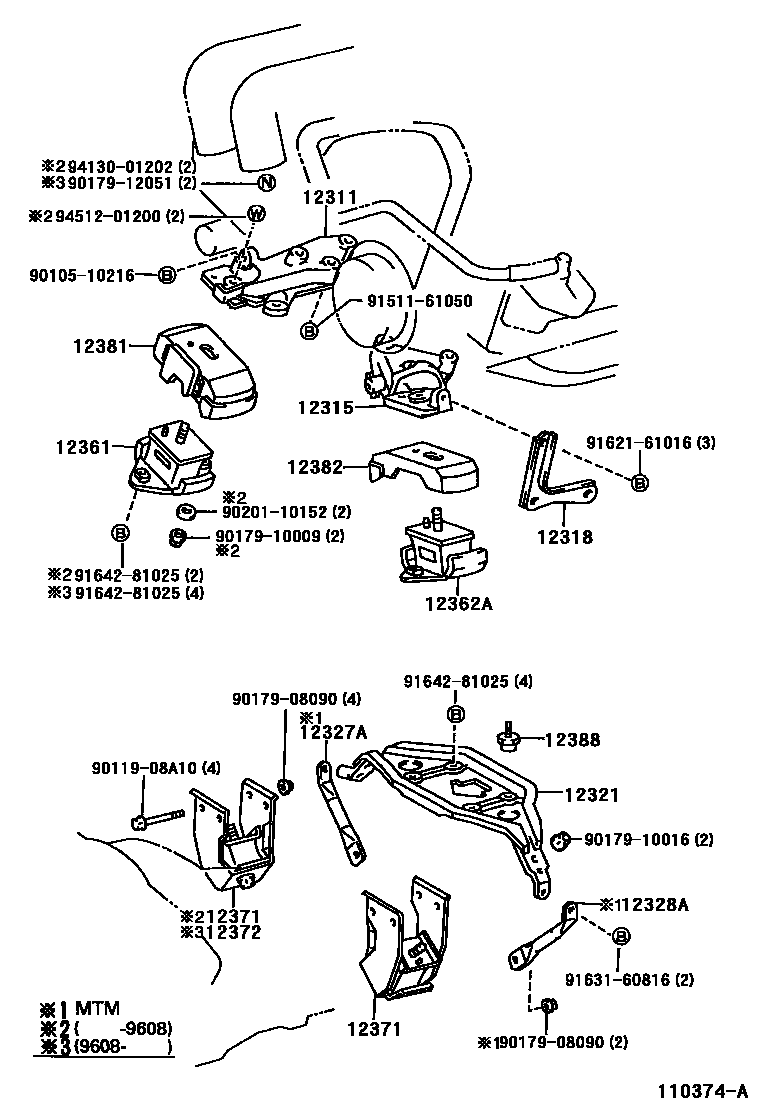

MOUNTING

0001 1 0002 1 0003 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-64140i3CT#..CXR1#,2#199201-199604

main12311-64141i3CTE..CXR1#,2#199604-199908

main12311-76040i2TZFE..TCR1#,2#199201-199604

main12311-76041i2TZFE..TCR1#,2#199604-199912

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-64070i3CT#..CXR1#,2#199201-199604

main12315-64071i3CTE..CXR1#,2#199604-199908

main12315-76040i2TZFE..TCR1#,2#199201-199604

main12315-76041i2TZFE..TCR1#,2#199604-199608

main12315-76050i2TZFE..TCR1#,2#199608-199912

12318STAY, ENGINE MOUNTING, LH

main12318-64070i3CT#..CXR1#,2#199201-199908

main12318-76010i2TZFE..TCR1#,2#199201-199912

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-64220i3CT#..CXR1#,2#..MTM199201-199908

main12321-76040i2TZFE..TCR1#,2#..ATM199201-199912

main12321-76050i2TZFE..TCR10,2#..MTM199201-199608

12327ASTAY, ENGINE MOUNTING, NO.2 RH

main12327-64010i3CT#..CXR1#,2#..MTM199201-199908

main12327-76010i2TZFE..TCR10,2#..MTM199201-199608

12328ASTAY, ENGINE MOUNTING, NO.2 LH

main12328-64010i3CT#..CXR1#,2#..MTM199201-199908

main12328-76010i2TZFE..TCR10,2#..MTM199201-199608

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-64230i3CT..CXR1#,2#199201-199203

main12361-64231i3CT#..CXR1#,2#199203-199410

main12361-64232i3CTE..CXR1#,2#199410-199508

main12361-64233i3CTE..CXR1#,2#199508-199604

main12361-64234i3CTE..CXR1#,2#199604-199608

main12361-64310i3CTE..CXR1#,2#199608-199908

main12361-76040i2TZFE..TCR1#,2#199201-199307

main12361-76041i2TZFE..TCR1#,2#199307-199508

main12361-76042i2TZFE..TCR1#,2#199508-199604

main12361-76043i2TZFE..TCR1#,2#199604-199608

main12361-76050i2TZFE..TCR1#,2#199608-199912

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

main12362-64160i3CT..CXR1#,2#199201-199203

main12362-64161i3CT#..CXR1#,2#199203-199410

main12362-64162i3CTE..CXR1#,2#199410-199508

main12362-64163i3CTE..CXR1#,2#199508-199604

main12362-64164i3CTE..CXR1#,2#199604-199608

main12362-64250i3CTE..CXR1#,2#199608-199908

main12362-76010i2TZFE..TCR1#,2#199201-199307

main12362-76011i2TZFE..TCR1#,2#199307-199508

main12362-76012i2TZFE..TCR1#,2#199508-199604

main12362-76013i2TZFE..TCR1#,2#199604-199608

main12362-76020i2TZFE..TCR1#,2#199608-199912

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-64230×2i3CT#..CXR1#,2#..MTM199201-199603

main12371-64231i3CTE..CXR10,20..MTM199603-199908

main12371-64260×2i3CT#..CXR1#,2#..ATM199201-199603

main12371-64261i3CTE..CXR1#,2#..ATM199603-199908

main12371-76040i2TZFE..TCR1#,2#199201-199310

main12371-76041i2TZFE..TCR1#,2#199310-199604

main12371-76042i2TZFE..TCR1#,2#199604-199705

main12371-76043i2TZFE..TCR1#,2#199705-199912

12372INSULATOR, ENGINE MOUNTING, REAR NO.2

main12372-64230i3CTE..CXR10,20..MTM199603-199908

main12372-64240i3CTE..CXR1#,2#..ATM199603-199908

main12372-76010i2TZFE..TCR1#,2#199201-199310

main12372-76011i2TZFE..TCR1#,2#199310-199604

main12372-76012i2TZFE..TCR1#,2#199604-199705

main12372-76013i2TZFE..TCR1#,2#199705-199912

12381STABILIZER, ENGINE MOUNTING

main12381-64050i3CT#..CXR1#,2#199201-199410

main12381-64052i3CTE..CXR1#,2#199410-199504

main12381-64053i3CTE..CXR1#,2#199504-199604

main12381-64054i3CTE..CXR1#,2#199604-199608

main12381-64080i3CTE..CXR1#,2#199608-199908

main12381-76020i3CTE..CXR1#,2#199408-199410

main12381-76021i3CTE..CXR1#,2#199410-199501

main12381-76022i2TZFE..TCR1#,2#199604-199608

main12381-76030i2TZFE..TCR1#,2#199608-199912

12382STABILIZER, ENGINE MOUNTING, LH

main12381-76022i2TZFE..TCR1#,2#; 3CTE..CXR1#,2#199604-199608

main12381-76030i2TZFE..TCR1#,2#199608-199912

main12382-76010i2TZFE..TCR1#,2#199201-199604

main12382-76011i3CTE..CXR1#,2#199410-199504

12388STOPPER, ENGINE MOUNTING BRACKET, REAR

main12388-76010×2i3CT#..CXR1#,2#199201-199908

9010510216

main90105-10216

9011908A10

main90119-08A10

9017908090

main90179-08090

9017910009

main90179-10009

9017910016

main90179-10016

9017912051

main90179-12051

9020110152

main90201-10152

9151161050

main91511-61050

9162161016

main91621-61016

9163160816

main91631-60816

9164281025

main91642-81025

9413001202

main94130-01202

9451201200

main94512-01200

26 parts on this diagram · 3 diagrams in section
