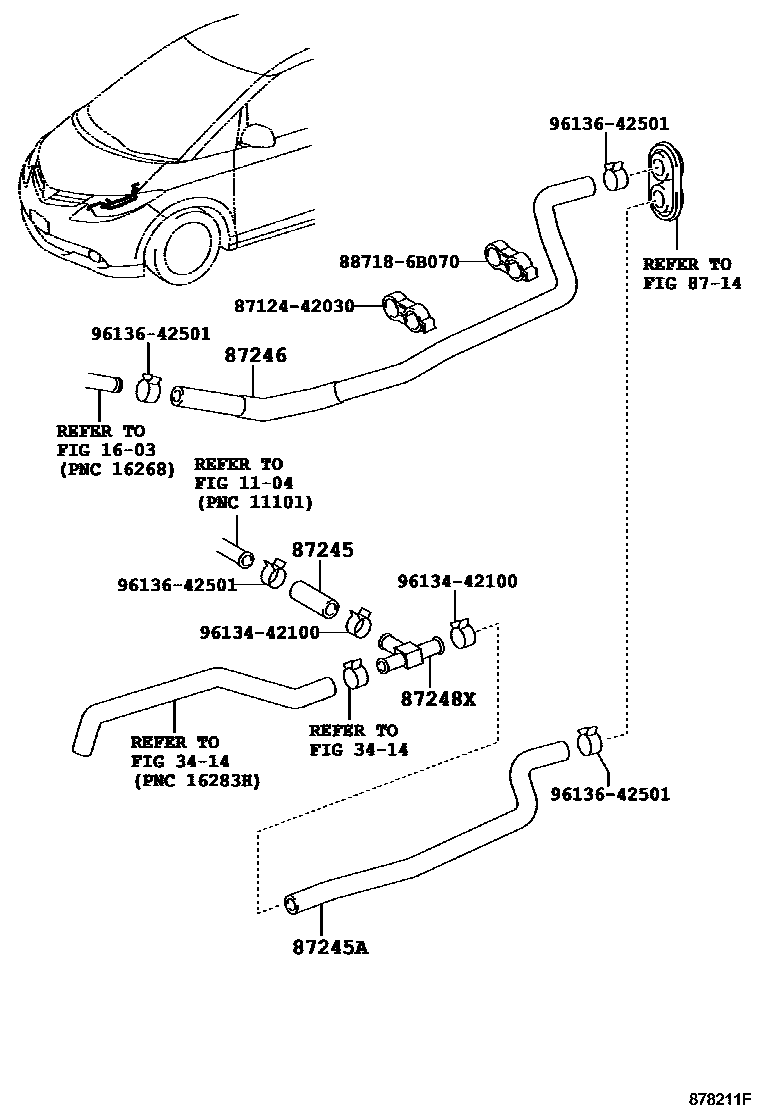

HEATING & AIR CONDITIONING - WATER PIPING

0001 1����,��(�����) 0002 1����,��(�����) 0003 1����,��(�����) 0004 1����,��(�����) 0005 1��

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

3414OIL COOLER & TUBE(CVT)

→ Go to FIG 34-14

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87245-63080iACR5#..CBU200601-201605

87245AHOSE, HEATER WATER, INLET A

main87209-28A30iGSR5#..G..CBU200601-200812

main87209-28A30iGSR5#..G..CBU200601-200812

main87209-28A30iGSR5#..G..CBU200601-201111

main87209-28A31iGSR5#..G..CBU201112-201204

main87209-28A31iGSR5#..G201204-201605

main87209-28A90iACR5#..(AERAS,X)..CBU200601-201111

main87209-28A91iACR5#..G201112-201204

main87209-28A91iACR5#..(AEPR,AERAS)..CBU201605

main87209-28A91iACR5#..G201204-201605

main87209-28B10iACR5#..(AERAS,X)..CBU200601-201111

main87209-28B11iACR5#..(AEPR,AERAS)..CBU201112-201605

main87245-28B40iGSR5#..AERAS..CBU200601-201605

87246HOSE, HEATER WATER, OUTLET

main87209-28A20iGSR5#..G..CBU200601-200812

main87209-28A20iGSR5#..G..CBU200601-200812

main87209-28A20iGSR5#..G..CBU200601-201111

main87209-28A21iGSR5#..G..CBU201112-201204

main87209-28A21iGSR5#..G201204-201605

main87209-28B60iACR5#..(AERAS,X)..CBU200601-201111

main87209-28B61iACR5#..G201204-201605

main87209-28B61iACR5#..AEPG,AESM201605

main87209-28B61iACR5#..G201112-201204

main87245-28B30iGSR5#..AERAS..CBU200601-201605

main87245-28C60iACR5#..(AERAS,X)..CBU200601-201605

87248XPIPE, HEATER WATER

main87248-20380iACR5#..CBU200601-201111

main87248-33030iACR5#..CBU201112-201605

8712442030CLAMP, HEATER

main87124-42030

887186B070PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-6B070

9613442100

main96134-42100

9613642501

main96136-42501

12 parts on this diagram · 5 diagrams in section
