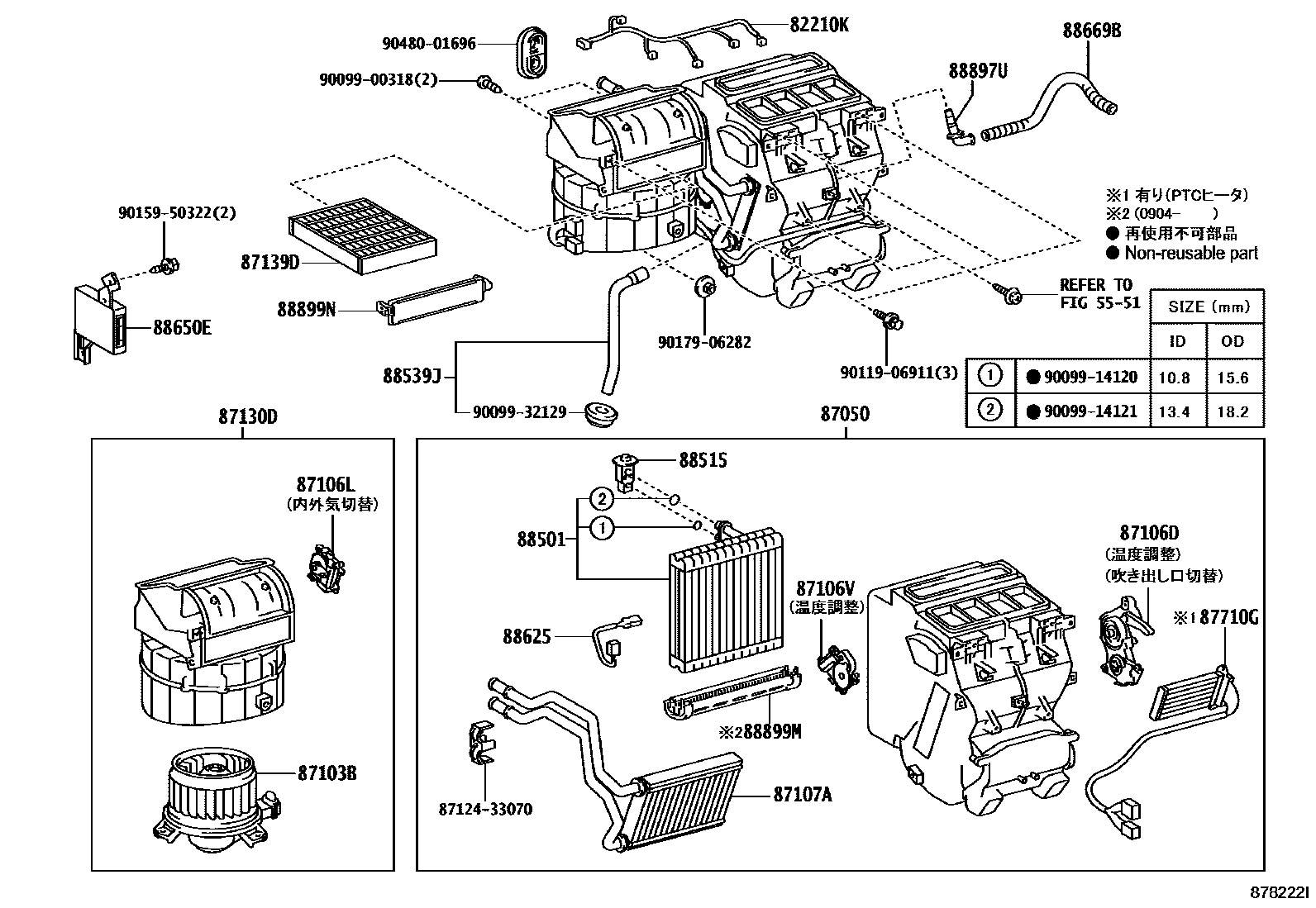

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1���� 0002 1��(���) 0003 1��(�����)

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

82210KHARNESS ASSY, AIR CONDITIONER

main82212-28030iACR5#..CBU201605

main82212-33010iACR5#,GSR5#..CBU200601-200701

87050RADIATOR ASSY, AIR CONDITIONER

main87050-28630supersedes 87050-28622iACR5#,GSR5#..CBU200601-200701

main87050-28631supersedes 87050-28622iACR5#,GSR5#..CBU200702-200708

main87050-28632supersedes 87050-28720iACR5#,GSR5#..CBU200812-201204

main87050-28740supersedes 87050-28720iACR5#..CBU201605

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-28150iACR5#..CBU201605

main87103-33100iACR5#,GSR5#..CBU200812-201204

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-28190iACR5#,GSR5#..CBU200601-200701

main87106-28191iACR5#,GSR5#..CBU201204-201605

87106LSERVO SUB-ASSY, DAMPER

main87106-33280iACR5#,GSR5#..CBU200601-200812

87106VSERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2)

main87106-33260iACR5#,GSR5#..CBU200601-200701

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-33120iACR5#,GSR5#..CBU200601-200701

87130DBLOWER ASSY

main87130-28550supersedes 87130-28540iACR5#,GSR5#..CBU201204-201605

main87130-28551supersedes 87130-28541iACR5#..CBU201605

87139DELEMENT, AIR REFINER

main87139-30040iACR5#,GSR5#..CBU200812-201204

main87139-50060iACR5#,GSR5#..CBU200812-201203

main87139-50100iACR5#,GSR5#..CBU201204-201605

main87139-52040iACR5#..CBU201605

87710GQUICK HEATER ASSY

main87710-28090iACR5#,GSR5#..CBU200601-200807

main87710-28091iACR5#,GSR5#..CBU200808-200812

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-28400iACR5#,GSR5#..CBU200709-200812

main88501-33120iACR5#,GSR5#..CBU200601-200702

main88501-33190iACR5#,GSR5#..CBU200702-200708

main88501-48310iACR5#,GSR5#..CBU200904-201007

main88501-48311iACR5#,GSR5#..CBU201007-201204

88515VALVE, COOLER EXPANSION

main88515-28240iACR5#,GSR5#..CBU201204-201605

main88515-33020iACR5#,GSR5#..CBU200601-200812

88539JHOSE, DRAIN COOLER

main88539-28280iACR5#,GSR5#..CBU200601-200812

88625THERMISTOR, COOLER, NO.1

main88625-33190iACR5#,GSR5#..CBU200601-200812

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-28A60iACR5#..(AERAS,X)..CBU201204-201303

main88650-28A61iACR5#..(AERAS,X)..CBU201304-201308

main88650-28A63iACR5#..(AERAS,X)..CBU201308-201409

main88650-28A64iACR5#..(AERAS,X)..CBU201409-201605

main88650-28A70iACR5#..(AERAS,X)..CBU200812-200903

main88650-28A71iACR5#..(AERAS,X)..CBU200904-200910

main88650-28A72iACR5#..(AERAS,X)..CBU200911-201204

main88650-28A90supersedes 88650-28B51iACR5#,GSR5#..(AERAS,X)..CBU; ACR5#,GSR5#..G..CBU; GSR5#..AERAS..CBU200601-200812

main88650-28A91iACR5#,GSR5#..(AERAS,X)..CBU; ACR5#,GSR5#..G..CBU200904-200910

main88650-28A92iACR5#,GSR5#..(AERAS,X)..CBU; ACR5#,GSR5#..G..CBU200911-201204

main88650-28B53iGSR5#..AERAS201308-201409

main88650-28B54iGSR5#..AERAS201409-201605

main88650-28B60iACR5#,GSR5#..(AERAS,X)..CBU; ACR5#,GSR5#..07S..AERAS..CBU; ACR5#,GSR5#..G201204-201303

main88650-28B61iACR5#,GSR5#..(AERAS,X)..CBU; ACR5#,GSR5#..07S..AERAS..CBU; ACR5#,GSR5#..G201304-201308

main88650-28B63iACR5#,GSR5#..(AERAS,X)..CBU; ACR5#,GSR5#..07S..AERAS..CBU; ACR5#,GSR5#..G201308-201409

main88650-28B64iACR5#,GSR5#..(AERAS,X)..CBU; ACR5#,GSR5#..G201409-201605

main88650-28D40iACR5#..AEPG,AESM201605

main88650-28C90iACR5#..07S..AERAS..CBU201409-201605

main88650-28D20supersedes 88650-28D10iACR5#..(AEPR,AERAS)..CBU201605

88669BHOSE, COOLER AIR

main88669-33090iACR5#,GSR5#..CBU200601-200812

88897UPIPE, ASPIRATOR

main88897-33030iACR5#,GSR5#..CBU200601-200812

88899MPLATE, COVER(FOR AIR FILTER)

main88899-33050iACR5#,GSR5#..CBU200904-201204

88899NPLATE, COVER

main88899-33040iACR5#,GSR5#..CBU200601-200812

8712433070CLAMP, HEATER

main87124-33070

9009900318

main90099-00318

9009914120

main90099-14120

9009914121

main90099-14121

9009932129

main90099-32129

9011906911

main90119-06911

9015950322

main90159-50322

9017906282

main90179-06282

9048001696

main90480-01696

29 parts on this diagram · 3 diagrams in section
