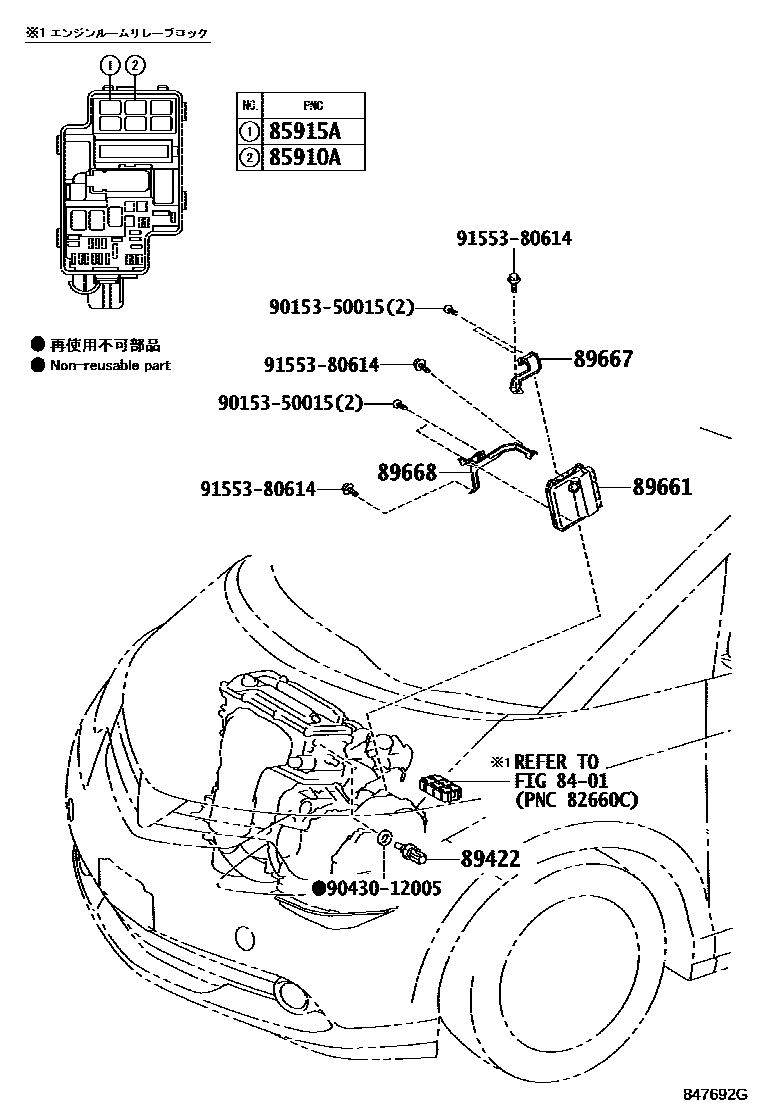

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02027iACR5#,GSR5#..CBU200601-201605

85915ARELAY, MAIN

main90987-02027iACR5#,GSR5#..CBU200601-201605

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-0D010iACR5#..CBU200710-200803

main89422-33030iACR5#..CBU200601-200803

main89422-33030iGSR5#..CBU200601-201605

89661COMPUTER, ENGINE CONTROL

main89661-28B10iACR50..CBU200912-201104

main89661-28B11iACR50..CBU201105-201110

main89661-28B12iACR50..CBU201111-201204

main89661-28B40iACR50..CBU200601-200808

main89661-28B41iACR50..CBU200809-200912

main89661-28B50iACR55..CBU200601-200808

main89661-28B51iACR55..CBU200809-200912

main89661-28B90iGSR50..CBU200601-200706

main89661-28C00iGSR55..CBU200601-200706

main89661-28C80iGSR50..CBU200706-200812

main89661-28C90iGSR55..CBU200706-200812

main89661-28D20iGSR50..CBU200812-201105

main89661-28D21iGSR50201106-201605

main89661-28D30iGSR55..CBU200812-201105

main89661-28D31iGSR55201106-201605

main89661-28D80iACR55..CBU200912-201104

main89661-28D81iACR55..CBU201105-201111

main89661-28D82iACR55..CBU201112-201204

main89661-28E50iACR50..CBU201204-201301

main89661-28E60iACR55..CBU201204-201301

main89661-28F80iACR50..CBU201302-201605

main89661-28F90iACR55..CBU201302-201605

main89661-28G40iACR50..CBU201605

main89661-28G50iACR55..CBU201605

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-28130iACR5#,GSR5#..CBU200601-201605

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-28130iACR5#,GSR5#..CBU200601-201605

9015350015

main90153-50015

9043012005

main90430-12005

9155380614

main91553-80614
