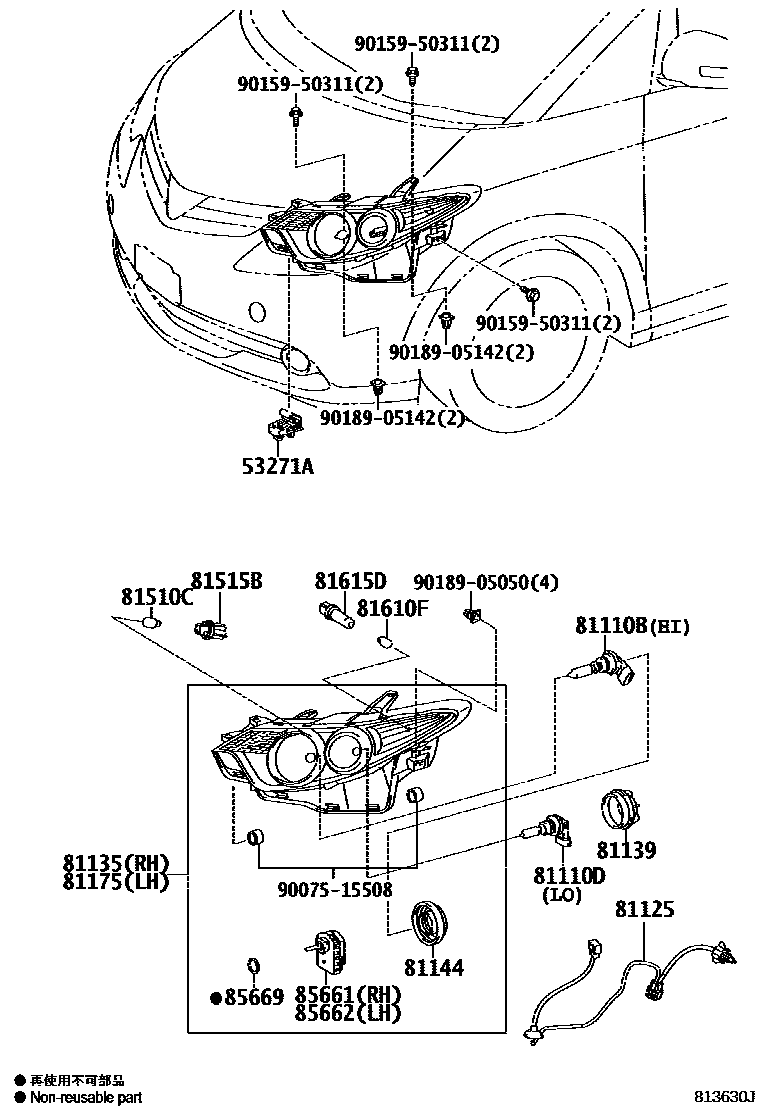

HEADLAMP

0001 1������������� 0002 1����������������� 0003 1��������� �������� & W(AFS) 0004 1 0005 1 0006 1 0007 1

53271ABRACKET, HEADLAMP MOUNTING

main53271-44010×2iACR5#,GSR5#..CBU200601-200812

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2iACR5#..X..CBU200601-200812

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13046×2iACR5#,GSR5#..(AERAS,G)..CBU200601-200812

main90981-13075×2iACR5#..X..CBU200601-200812

81125CORD, HEADLAMP

main81125-28A00×2iACR5#..X..CBU200601-200812

main81125-28A10×2iACR5#,GSR5#..(AERAS,G)..CBU200601-200812

main81125-28C10×2iACR5#..X..CBU201204-201605

main81125-28C70×2iACR5#,GSR5#..(AERAS,G)..CBU200812-201204

main81125-28G20×2iACR5#..CBU201605

81135UNIT ASSY, HEADLAMP, RH

main81105-28G20iACR5#..CBU201605-201707

main81105-28G21iACR5#..CBU201707

main81130-28A00iACR5#..X..CBU200601-200812

main81130-28C10iACR5#..X..CBU200812-201101

main81130-28C11iACR5#..X..CBU201204-201605

main81145-28A10iACR5#,GSR5#..G..CBU200601-200812

main81145-28C20iACR5#,GSR5#..G..CBU200812-200911

main81145-28C21iACR5#,GSR5#..G..CBU200911-201101

main81145-28C22iACR5#,GSR5#..G201204-201605

main81145-28C70iACR5#,GSR5#..AERAS..CBU200812-201101

main81145-28C71iACR5#,GSR5#..AERAS..CBU201101-201204

main81145-28A80iACR5#,GSR5#..AERAS..CBU; GSR5#..AERAS..CBU200601-200812

main81145-28C00iGSR5#..07S..AERAS200706-200812

main81145-28F90iACR5#..07S..AERAS..CBU201409-201605

81139COVER, HEADLAMP SOCKET

main81135-3A150×2iACR5#,GSR5#..CBU200812-201204

main81189-28A10×2iACR5#,GSR5#..CBU200601-200812

81144COVER, HEADLAMP, NO.1

main81112-47380×2iACR5#..CBU201605

main90075-65006×2iACR5#,GSR5#..CBU200601-200812

81175UNIT ASSY, HEADLAMP, LH

main81106-28G20iACR5#..CBU201605-201707

main81106-28G21iACR5#..CBU201707

main81170-28A00iACR5#..X..CBU200601-200812

main81170-28C10iACR5#..X..CBU200812-201101

main81170-28C11iACR5#..X..CBU201101-201204

main81185-28A10iACR5#,GSR5#..G..CBU200601-200812

main81185-28C20iACR5#,GSR5#..G..CBU200812-200911

main81185-28C21iACR5#,GSR5#..G..CBU200911-201101

main81185-28C22iACR5#,GSR5#..G201204-201605

main81185-28C70iACR5#,GSR5#..AERAS..CBU200812-201101

main81185-28C71iACR5#,GSR5#..AERAS..CBU201101-201204

main81185-28A80supersedes 81185-28F40iACR5#,GSR5#..AERAS..CBU; GSR5#..AERAS..CBU200601-200812

main81185-28C00iGSR5#..07S..AERAS200706-200812

main81185-28F90iACR5#..07S..AERAS..CBU201409-201605

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iACR5#,GSR5#..CBU200812-201204

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iACR5#,GSR5#..CBU200601-200812

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iACR5#,GSR5#..CBU200601-200812

81615DSOCKET, CLEARANCE LAMP

main90075-60077×2iACR5#,GSR5#..CBU200812-201204

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iACR5#..X..CBU200601-200812

main85661-12020iACR5#..CBU201605

main85661-28010supersedes 85661-12020iACR5#,GSR5#..AERAS..CBU; ACR5#,GSR5#..G..CBU; GSR5#..AERAS..CBU200601-200812

main85661-28011iACR5#,GSR5#..G201204-201605

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iACR5#..X..CBU200812-201204

main85661-12020iACR5#..CBU201605

main85691-28010supersedes 85661-12020iACR5#,GSR5#..G..CBU200812-200911

main85691-28011iACR5#,GSR5#..G201204-201605

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iACR5#,GSR5#..CBU200601-200812

9007515508

main90075-15508

9015950311

main90159-50311

9018905050

main90189-05050

9018905142

main90189-05142

19 parts on this diagram · 7 diagrams in section
