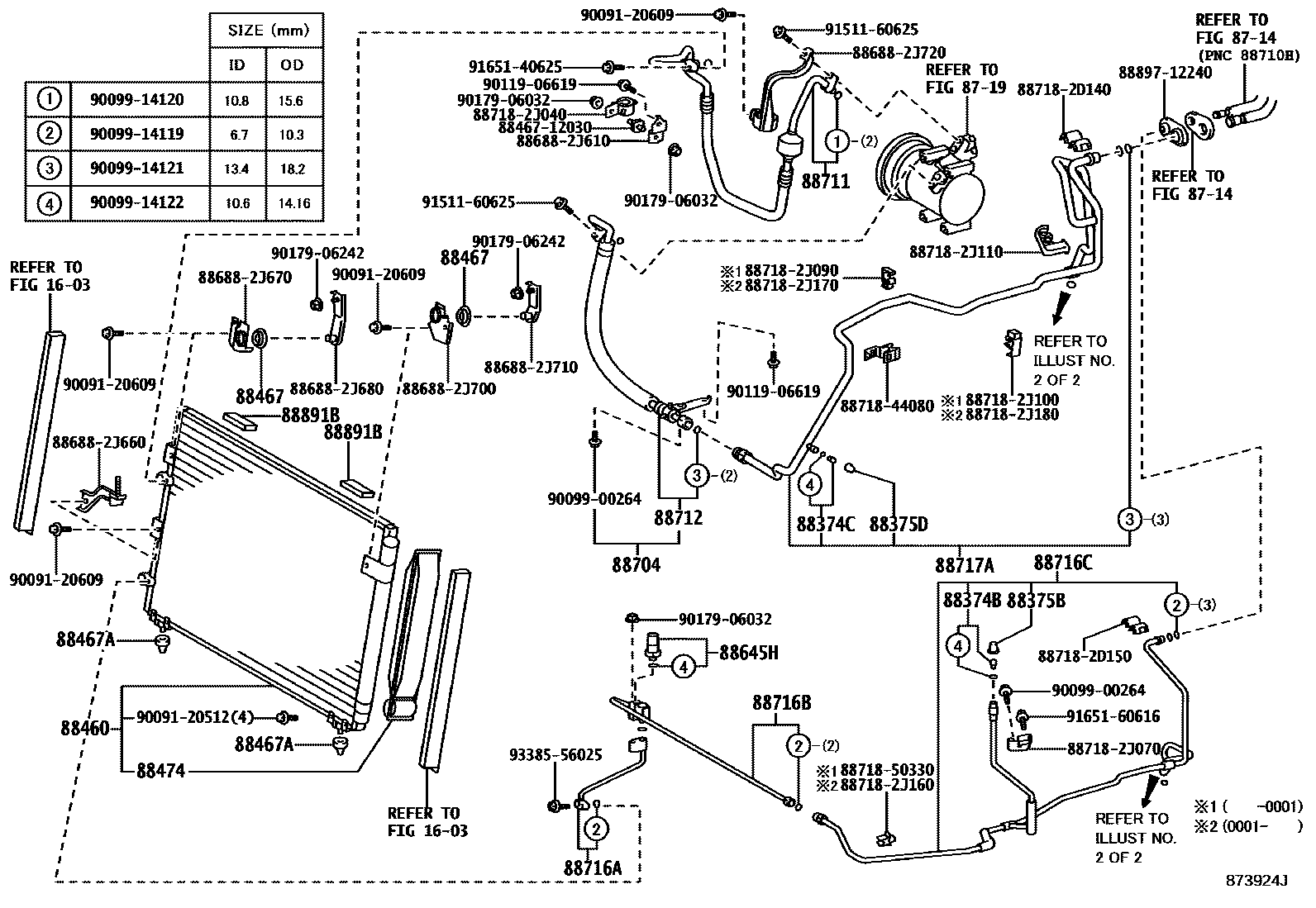

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1���� 0002 1���� 0003 1���� 0004 1���� 0005 1�� 0006 1��

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iACR30,40,MCR30,40199912-200304

88374CVALVE, SERVICE, NO.2

main88374-30010iACR30,40,MCR30,40199912-200304

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iACR30,40,MCR30,40199912-200304

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iACR30,40,MCR30,40199912-200304

88460CONDENSER ASSY, COOLER

main88460-28550iACR30,40,MCR30,40199912-200601

88467CUSHION, COOLER CONDENSER, NO.1

main88467-28050iACR30,40,MCR30,40199912-200601

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-28040iACR30,40,MCR30,40199912-200601

88474DRYER, COOLER

main88474-47010iACR30,40,MCR30,40199912-200304

88645HSWITCH, PRESSURE NO.1

main88645-60030iACR30,40,MCR30,40199912-200304

88704HOSE SUB-ASSY, SUCTION

main88704-28090iMCR30,40199912-200304

main88704-28100iACR30,40200002-200304

main88704-28170iACR30,40200304-200601

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-28090iMCR30,40200304-200601

main88711-2J130iMCR30,40199912-200304

main88711-2J140iACR30,40200002-200304

main88711-2J190iACR30,40200304-200601

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-28200iMCR30,40200304-200601

main88712-28660iMCR30,40199912-200304

main88712-28670iACR30,40200002-200304

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-2R860iACR30,40,MCR30,40199912-200601

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88710-2R360iMCR30,40200304-200601

main88710-2R840iACR30,40200304-200601

main88716-2R870iACR30,40,MCR30,40199912-200304

88716CPIPE, COOLER REFRIGERANT LIQUID, C

main88710-2R411iMCR30,40200304-200601

main88710-2X060iACR30,40200304-200601

main88716-2X010iMCR30,40199912-200001

main88716-2X020iACR30,40200002-200304

main88716-2X200iMCR30,40200001-200304

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88710-2R810iMCR30200304-200601

main88710-2R820iMCR40200304-200601

main88717-2R110iMCR30199912-200304

main88717-2R120iMCR40199912-200304

main88717-2R130iACR30200002-200304

main88717-2R150iACR40200002-200304

main88717-2R380iACR30200304-200601

main88717-2R390iACR40200304-200601

88891BPACKING B (FOR COOLER)

main88578-28350iACR30,40,MCR30,40199912-200601

8846712030CUSHION, COOLER CONDENSER, NO.1

main88467-12030

886882J610BRACKET, COOLER DIAPHRAGM

main88688-2J610

886882J660BRACKET, COOLER DIAPHRAGM

main88688-2J660

886882J670BRACKET, COOLER DIAPHRAGM

main88688-2J670

886882J680BRACKET, COOLER DIAPHRAGM

main88688-2J680

886882J700BRACKET, COOLER DIAPHRAGM

main88688-2J700

886882J710BRACKET, COOLER DIAPHRAGM

main88688-2J710

886882J720BRACKET, COOLER DIAPHRAGM

main88688-2J720

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

887182J040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2J040

887182J070PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2J070

887182J090PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2J090

887182J100PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2J100

887182J110PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2J110

887182J160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2J160

887182J170PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2J170

887182J180PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2J180

8871844080PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-44080

8871850330PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-50330

8889712240VALVE, COOLER MAGNET

main88897-12240

9009120512

main90091-20512

9009120609

main90091-20609

9009900264

main90099-00264

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009914122

main90099-14122

9011906619

main90119-06619

9017906032

main90179-06032

9017906242

main90179-06242

9151160625

main91511-60625

9165140625

main91651-40625

9165160616

main91651-60616

9338556025

main93385-56025

55 parts on this diagram · 6 diagrams in section
