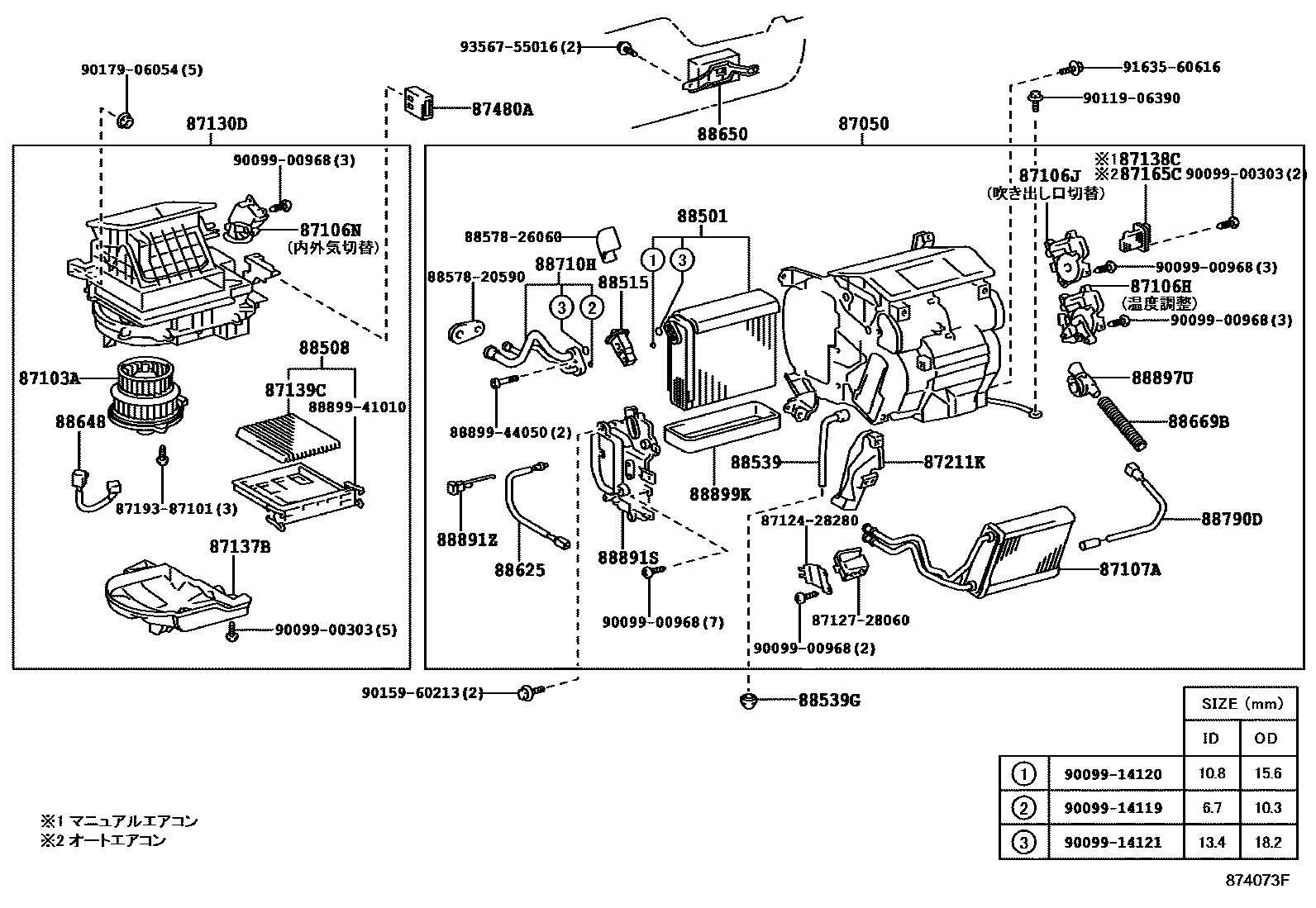

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1���� 0002 1���� 0003 1�� 0004 1��

87050RADIATOR ASSY, AIR CONDITIONER

main87050-28240iMCR30,40199912-200304

main87050-28250iACR30,40..AERAS,G,X200002-200304

main87050-28260iACR30,40..AERAS,G,X200002-200304

main87050-28280iACR30,40..J200002-200304

main87050-28290iACR30,40..J200002-200304

main87050-28470iACR30,40200304-200601

main87050-28480iACR30,40200304-200601

main87050-28490iMCR30,40200304-200601

87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN

main87103-28070iACR30,40,MCR30,40199912-200304

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-28120iACR30,40,MCR30,40199912-200304

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-28110iACR30,40,MCR30,40199912-200304

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-28150iACR30,40,MCR30,40199912-200304

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-28220iACR30,40,MCR30,40200304-200601

main87107-28230iACR30,40200002-200304

87130DBLOWER ASSY

main87130-28430iACR30,40,MCR30,40199912-200304

87137BCOVER, HEATER BLOWER

main87137-28010iACR30,40,MCR30,40200304-200601

87138CRESISTOR, BLOWER

main87138-28210iACR30,40..J200002-200304

87139CFILTER, CLEAN AIR

main87139-28010iACR30,40,MCR30,40199912-200304

main87139-47020iACR30,40,MCR30,40199912-200304

87165CCONTROL, BLOWER MOTOR

main87165-32010iACR30,40,MCR30,40200304-200601

87211KDUCT, AIR

main87211-28190iACR30,40,MCR30,40200304-200601

87480AAMPLIFIER ASSY, HEATER

main87480-28010iACR30,40..J200002-200304

main87480-28020iACR30,40..J200002-200304

main87480-28030iACR30,40..J200002-200304

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-28310iACR30,40,MCR30,40199912-200304

88508FILTER SUB-ASSY, CLEAN AIR

main88508-20120iACR30,40,MCR30,40199912-200304

88515VALVE, COOLER EXPANSION

main88515-28150iACR30,40,MCR30,40199912-200107

main88515-28160iMCR30,40200107-200109

main88515-28180iACR30,40200304-200601

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-28240iACR30,40,MCR30,40199912-200304

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26022iACR30,40,MCR30,40200304-200601

88625THERMISTOR, COOLER, NO.1

main88625-48030iACR30,40200304-200601

main88625-52020iACR30,40,MCR30,40199912-200304

88648WIRING, COOLER, NO.1

main88648-28280iACR30,40,MCR30,40200304-200601

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-28780iACR30,40..J200002-200304

88669BHOSE, COOLER AIR

main88669-28030iACR30,40,MCR30,40..AERAS,G,X199912-200304

88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-2R500iACR30,40,MCR30,40199912-200304

88790DTHERMISTOR ASSY

main88790-20080iMCR30,40199912-200304

88891SCOVER, COOLER, NO.1

main88891-28070iACR30,40,MCR30,40199912-200304

88891ZBRACKET, COOLER THERMISTOR

main88891-32100iACR30,40,MCR30,40199912-200104

main88891-44100iMCR30,40200107-200109

main88891-50060iACR30,40200107-200109

88897UPIPE, ASPIRATOR

main88897-12210iACR30,40,MCR30,40..AERAS,G,X199912-200304

88899KPLATE, COVER

main88899-47030iACR30,40,MCR30,40199912-200304

8712428280CLAMP, HEATER

main87124-28280

8712728060PACKING, HEATER AIR DAMPER

main87127-28060

8719387101

main87193-87101

8857820590PAKING, COOLER AIR DUCT

main88578-20590

8857826060PAKING, COOLER AIR DUCT

main88578-26060

8889941010COVER, EVAPORATOR

main88899-41010

8889944050COVER, EVAPORATOR

main88899-44050

9009900303

main90099-00303

9009900968

main90099-00968

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906390

main90119-06390

9015960213

main90159-60213

9017906054

main90179-06054

9163560616

main91635-60616

9356755016

main93567-55016

45 parts on this diagram · 4 diagrams in section
