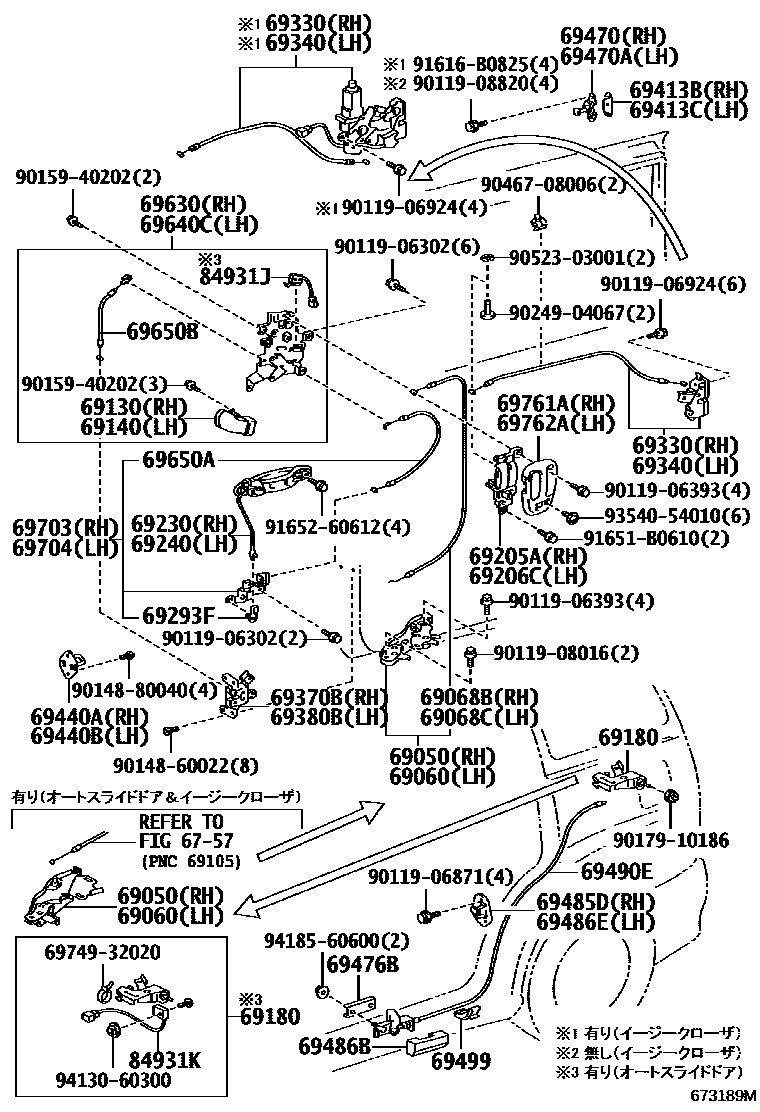

REAR DOOR LOCK & HANDLE

6757REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-57

69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH

main69050-28010iACR30,40,MCR30,40199912-200304

main69050-28030iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

69060LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH

main69060-28040iACR30,40,MCR30,40200304

main69060-28050iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

69068BCABLE SUB-ASSY, CENTER DOOR REMOTE CONTROL, NO.2

main69068-28010iACR30,40,MCR30,40199912-200304

69068CCABLE SUB-ASSY, CENTER DOOR REMOTE CONTROL, NO.2

main69068-28010iACR30,40,MCR30,40199912-200304

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-28030iACR30,40,MCR30,40..AERAS,AERSS,G,X200304-200601

main69130-28050iACR30,40,MCR30,40200304-200601

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-28080iACR30,40,MCR30,40199912-200304

main69140-28090iACR30,40,MCR30,40199912-200304

69180CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER

main69180-28040iACR30,40,MCR30,40199912-200003

main69180-28041iACR30,40,MCR30,40200003-200103

main69180-28050iACR30,40,MCR30,40199912-200003

main69180-28051iACR30,40,MCR30,40200003-200103

main69180-28060iACR30,40,MCR30,40200103-200304

main69180-28070iACR30,40,MCR30,40200103-200304

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69207-28010-B0iACR30,40,MCR30,40..AERAS; ACR30,40,MCR30,40..G,J,X199912-200304

BLUISH GRAY,TRIM1#; BLUISH GRAY,TRIM11

main69207-28010-B1iACR30,40,MCR30,40..AERAS200204-200304

main69207-28010-B2iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

DK.GRAY,TRIM1#

main69207-28010-E0iACR40..G,X;ACR30,MCR30,40..G,J,X200304-200601

SANDAL WOOD,TRIM0#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69208-28010-B0iACR30,40,MCR30,40..AERAS; ACR30,40,MCR30,40..G,J,X199912-200304

BLUISH GRAY,TRIM1#; BLUISH GRAY,TRIM11

main69208-28010-B1iACR30,40,MCR30,40..G,J,X199912-200304

DK.CHARCOAL,TRIM12

main69208-28010-B2iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

DK.GRAY,TRIM1#

main69208-28010-E0iACR40..G,X;ACR30,MCR30,40..G,J,X200304-200601

SANDAL WOOD,TRIM0#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-28060iACR30,40..J200304-200601

main69230-28070-A0iACR30,40,MCR30,40..AERAS,G,X199912-200304

WHITE PM.,042

main69230-28070-B0iACR30,40,MCR30,40..G,X200304-200601

SILVER ME.,1C0

main69230-28070-B1iACR30,40,MCR30,40..AERAS200304-200305

main69230-28070-B2iACR30,40,MCR30,40..AERAS,AERSS200304-200601

GRAY ME.,1D2

main69230-28070-C0iACR30,40,MCR30,40..AERAS,G,X200104-200304

BLACK MC.CC.,210

main69230-28070-C1iACR30,40,MCR30,40..AERAS200204-200304

main69230-28070-D0iACR30,40,MCR30,40..AERAS,G,X199912-200304

RED MC.,3J7

main69230-28070-D1iACR30,40,MCR30,40..G,X199912-200304

BORDEAUX MC.,3P2

main69230-28070-D3iACR30,40,MCR30,40..X200109-200204

main69230-28070-E0iACR30,40,MCR30,40..G,X200304-200601

BEIGE ME.,4R4

main69230-28070-F0iACR30,40,MCR30,40..G,X199912-200104

CHAMPAGNE ME.,583

main69230-28070-G0iACR30,40,MCR30,40..G,X199912-200304

DK.GREEN MC.,6Q7

main69230-28070-G1iACR30,40,MCR30,40..G,X200304-200601

LT.GREEN M.M.,6T4

main69230-28070-J0iACR30,40,MCR30,40..G,X200304-200601

DK.BLUE MC.,8P4

main69230-28070-J1iACR30,40,MCR30,40..G,X199912-200304

GRAYISH BLUE ME.,8P6

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-28090iACR30,40,MCR30,40..J,X199912-200304

main69240-28100-A0iACR30,40,MCR30,40..AERAS,G,X199912-200304

WHITE PM.,042

main69240-28100-B0iACR30,40,MCR30,40..AERAS200409

main69240-28100-B1iACR30,40,MCR30,40..AERAS200206-200304

main69240-28100-B2iACR30,40,MCR30,40..AERAS,AERSS200304-200601

GRAY ME.,1D2

main69240-28100-C0iACR30,40,MCR30,40..AERAS,G,X200104-200304

BLACK MC.CC.,210

main69240-28100-C1iACR30,40,MCR30,40..AERAS200204-200304

main69240-28100-D0iACR30,40,MCR30,40..AERAS,G,X199912-200304

RED MC.,3J7

main69240-28100-D1iACR30,40,MCR30,40..G,X199912-200304

BORDEAUX MC.,3P2

main69240-28100-D3iACR30,40,MCR30,40..X200109-200204

main69240-28100-E0iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),BEIGE ME.,4R4

main69240-28100-F0iACR30,40,MCR30,40..AERAS,G,X200104-200304

CHAMPAGNE ME.,583

main69240-28100-G0iACR30,40,MCR30,40..G,X199912-200304

DK.GREEN MC.,6Q7

main69240-28100-G1iACR30,40,MCR30,40..G,X200304-200601

LT.GREEN M.M.,6T4

main69240-28100-J0iACR30,40,MCR30,40..G,X200304-200601

DK.BLUE MC.,8P4

main69240-28100-J1iACR30,40,MCR30,40..G,X199912-200304

GRAYISH BLUE ME.,8P6

69293FSNAP, DOOR OUTSIDE HANDLE

main69293-22010iACR30,40,MCR30,40200304

main69293-22020iACR30,40,MCR30,40200304

69330LOCK ASSY, REAR DOOR, RH

main69200-28011iACR30,40,MCR30,40199912-200111

main69200-28012iACR30,40,MCR30,40200111-200304

main69330-28050iACR30,40,MCR30,40..AERAS,J,X199912-200111

main69330-28051iACR30,40,MCR30,40..AERAS,J,X200111-200304

69340LOCK ASSY, REAR DOOR, LH

main69300-28050iACR30,40,MCR30,40199912-200111

main69300-28051iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

main69340-28140iACR30,40,MCR30,40..AERAS,J,X199912-200111

main69340-28141iACR30,40,MCR30,40..AERAS,J,X200111-200304

69370BLOCK ASSY, SLIDE DOOR, FRONT RH

main69370-28060iACR30,40,MCR30,40199912-200304

69380BLOCK ASSY, SLIDE DOOR, FRONT LH

main69380-28060iACR30,40,MCR30,40199912-200304

69413BSHIM, DOOR LOCK STRIKER

main69413-28020iACR30,40,MCR30,40200304-200601

69413CSHIM, DOOR LOCK STRIKER, LH

main69413-28020iACR30,40,MCR30,40200304-200601

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-28050iACR30,40,MCR30,40199912-200304

69440BPLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-28050iACR30,40,MCR30,40199912-200304

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-28050iACR30,40,MCR30,40199912-200007

main69470-28080iACR30,40,MCR30,40..AERAS,AERSS,J,X200304

main69470-28090iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

main69470-95D00iACR30,40,MCR30,40..AERAS,J,X199912-200008

69470APLATE ASSY, SLIDE DOOR LOCK STRIKER, LH

main69470-28050iACR30,40,MCR30,40199912-200007

main69470-28080iACR30,40,MCR30,40..AERAS,AERSS,J,X200304

main69470-28090iACR30,40,MCR30,40200007-200304

main69470-95D00iACR30,40,MCR30,40..AERAS,J,X199912-200008

69476BPLATE, SLIDE DOOR HALF OPEN STOPPER

main69476-28010iACR30,40,MCR30,40199912-200304

69485DSTRIKER, SLIDE DOOR OPEN, RH

main69485-28010iACR30,40,MCR30,40199912-200304

main69485-28030iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

69486BCOVER, SLIDE DOOR HALF OPEN STOPPER

main69486-28040iACR30,40,MCR30,40199912-200304

69486ESTRIKER, SLIDE DOOR OPEN, LH

main69486-28020iACR30,40,MCR30,40199912-200304

main69486-28030iACR30,40,MCR30,40199912-200304

69490ESTOPPER ASSY, SLIDE DOOR HALF OPEN

main69490-28020iACR30,40,MCR30,40199912-200003

main69490-28021iACR30,40,MCR30,40200003-200304

69499CLIP, SLIDE DOOR HALF OPEN STOPPER CABLE

main69499-28010iACR30,40,MCR30,40199912-200304

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-28120iACR30,40,MCR30,40199912-200304

main69630-28140iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-28200iACR30,40,MCR30,40199912-200304

main69640-28210iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

69650ACABLE ASSY, SLIDE DOOR LOCK CONTROL

main69650-28040×2iACR30,40,MCR30,40199912-200105

main69650-28041×2iACR30,40,MCR30,40200304

69650BCABLE ASSY, SLIDE DOOR LOCK CONTROL

main69650-28120×2iACR30,40,MCR30,40199912-200304

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69703-28010iACR30,40,MCR30,40200304

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69704-28010iACR30,40,MCR30,40200304

69761ABEZEL, DOOR LOCK CONTROL KNOB, RH

main69761-28010-B0iACR30,40,MCR30,40..AERAS; ACR30,40,MCR30,40..G,J,X199912-200010

BLUISH GRAY,TRIM1#; BLUISH GRAY,TRIM11

main69761-28010-B1iACR30,40,MCR30,40..G,J,X199912-200010

DK.CHARCOAL,TRIM12

main69761-28011-B0iACR30,40,MCR30,40..AERAS; ACR30,40,MCR30,40..G,J,X200010-200304

BLUISH GRAY,TRIM1#; BLUISH GRAY,TRIM11

main69761-28011-B1iACR30,40,MCR30,40..G,J,X200010-200304

DK.CHARCOAL,TRIM12

main69761-28011-B2iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

DK.GRAY,TRIM1#

main69761-28011-E0iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),SANDAL WOOD,TRIM0#

69762ABEZEL, DOOR LOCK CONTROL KNOB, LH

main69762-28010-B0iACR30,40,MCR30,40..AERAS; ACR30,40,MCR30,40..G,J,X199912-200010

BLUISH GRAY,TRIM1#; BLUISH GRAY,TRIM11

main69762-28010-B1iACR30,40,MCR30,40..G,J,X199912-200010

DK.CHARCOAL,TRIM12

main69762-28011-B0iACR30,40,MCR30,40..AERAS; ACR30,40,MCR30,40..G,J,X200010-200304

BLUISH GRAY,TRIM1#; BLUISH GRAY,TRIM11

main69762-28011-B1iACR30,40,MCR30,40..G,J,X200010-200304

DK.CHARCOAL,TRIM12

main69762-28011-B2iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

DK.GRAY,TRIM1#

main69762-28011-E0iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),SANDAL WOOD,TRIM0#

84931JSWITCH, DOOR CONTROL

main84931-28100iACR30,40,MCR30,40199912-200304

84931KSWITCH, DOOR CONTROL

main84931-28070iACR30,40,MCR30,40199912-200304

6974932020CLAMP, FRONT DOOR LOCK LINK

main69749-32020

9011906302

main90119-06302

9011906393

main90119-06393

9011906871

main90119-06871

9011906924

main90119-06924

9011908016

main90119-08016

9011908820

main90119-08820

9014860022

main90148-60022

9014880040

main90148-80040

9015940202

main90159-40202

9017910186

main90179-10186

9024904067

main90249-04067

9046708006

main90467-08006

9052303001

main90523-03001

91616B0825

main91616-B0825

91651B0610

main91651-B0610

9165260612

main91652-60612

9354054010

main93540-54010

9413060300

main94130-60300

9418560600

main94185-60600

59 parts on this diagram · 1 diagram in section
