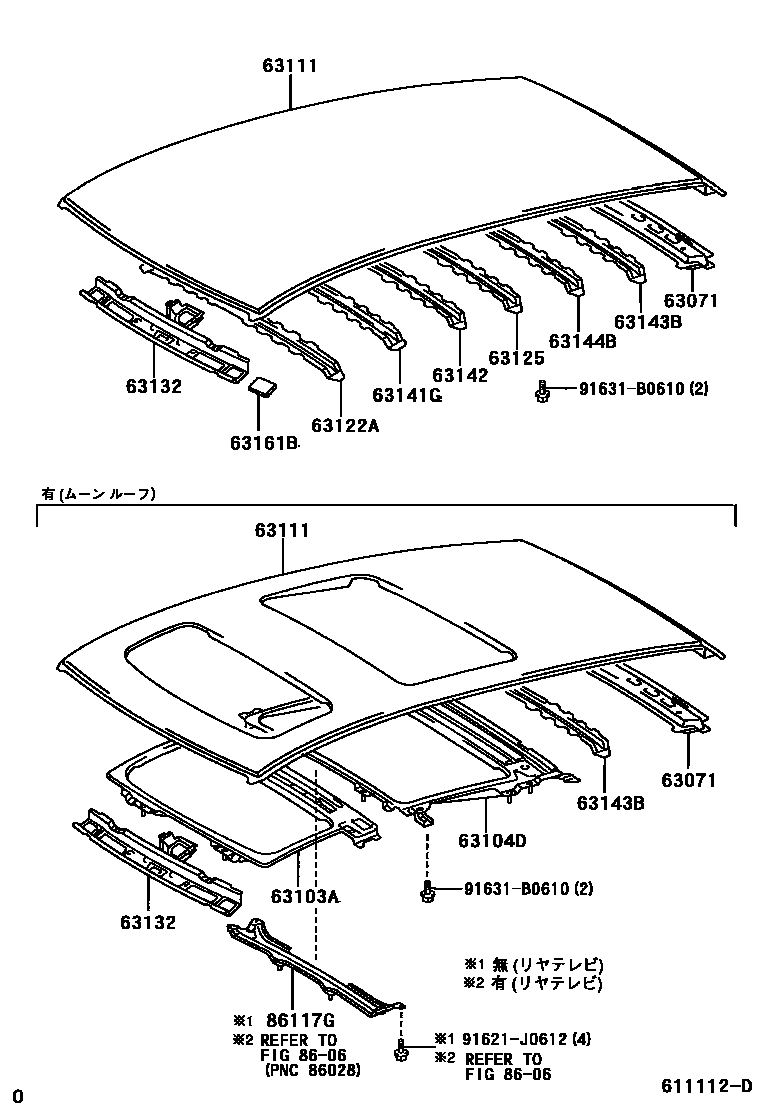

ROOF PANEL & BACK PANEL

0001 1�-� ���� 0002 1�-� �-� 0004 1�-� �-�

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-28020iACR30,40,MCR30,40199912-200304

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-28030iACR30,40,MCR30,40199912-200304

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-28050iACR30,40,MCR30,40199912-200304

63111PANEL, ROOF

main63111-28170iACR30,40,MCR30,40199912-200304

main63111-28190iACR30,40,MCR30,40200104-200304

main63111-28210iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

main63111-28220iACR30,40,MCR30,40200104-200304

63122AREINFORCEMENT, ROOF PANEL, FRONT

main63122-28060iACR30,40,MCR30,40200304

63125REINFORCEMENT, ROOF PANEL, NO.2

main63125-28050iACR30,40,MCR30,40199912-200304

63132PANEL, WINDSHIELD HEADER, INNER

main63102-28010iACR30,40,MCR30,40200304

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63103-28040iACR30,40,MCR30,40200104-200304

main63103-28070iACR30,40,MCR30,40..AERAS,AERSS,G200304

main63141-28110iACR30,40,MCR30,40199912-200304

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-28060iACR30,40,MCR30,40199912-200304

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-28050iACR30,40,MCR30,40199912-200304

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-28050iACR30,40,MCR30,40199912-200304

63161BPLATE, ROOF HEADER PANEL, NO.1

main61815-28010×2iACR30,40,MCR30,40200112-200304

main61815-32020×2iACR30,40,MCR30,40199912-200112

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

86117GBRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-28060iACR30,40,MCR30,40199912-200304

main86117-28061iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

91621J0612

main91621-J0612

91631B0610

main91631-B0610

16 parts on this diagram · 3 diagrams in section
