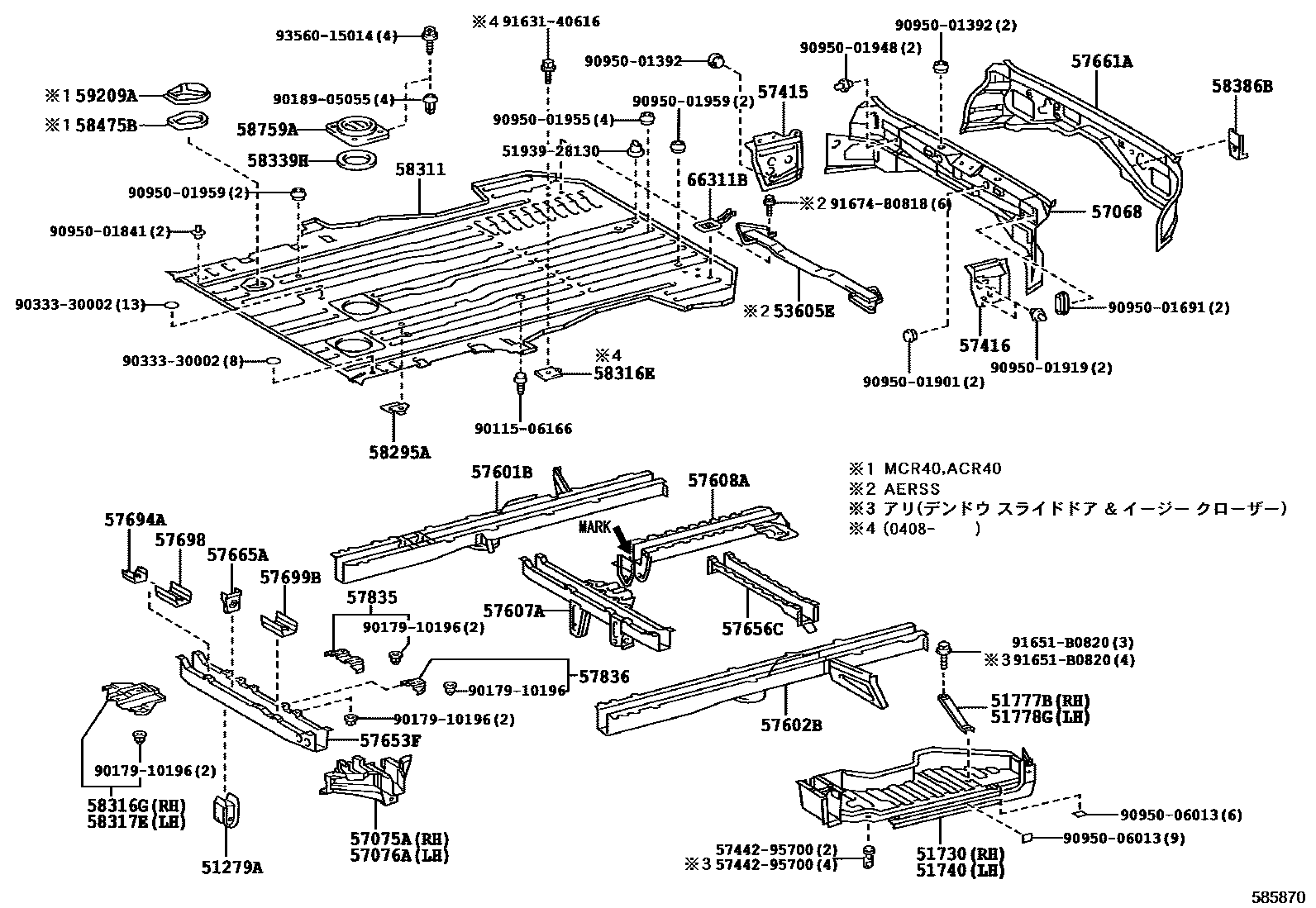

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1����� ��� ���

51279ABRACKET, DIFFERENTIAL SUPPORT

main51279-28020iACR40,MCR40199912-200205

main51279-28021iACR40,MCR40200205-200304

51730STEP ASSY, REAR FLOOR, RH

main51730-28030iACR30,40,MCR30,40199912-200304

main51730-28040iACR30,MCR30..J,X;ACR30,MCR30..07S200102-200104

main51730-28060iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

51740STEP ASSY, REAR FLOOR, LH

main51740-28030iACR30,40,MCR30,40199912-200304

main51740-28050iACR30,40,MCR30,40199912-200304

51777BSTAY, STEP PLATE

main51777-28010iACR30,40,MCR30,40199912-200304

main51777-28020iACR30,40,MCR30,40..AERAS,AERSS,G,X200304

51778GSTAY, STEP PLATE, LH

main51778-28010iACR30,40,MCR30,40199912-200304

main51778-28020iACR30,40,MCR30,40199912-200304

53605EBRACE SUB-ASSY, REAR SUSPENSION, UPPER

main53605-28010iACR30,40,MCR30,40..AERSS200304

57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57068-28240iACR30,40,MCR30,40199912-200511

main57068-28250iACR30,MCR30200511

57075ABRACKET SUB-ASSY, REAR SUSPENSION ARM, RH

main57075-28010iACR30,40,MCR30,40199912-200304

main57075-28030iACR30,40,MCR30,40200304

57076ABRACKET SUB-ASSY, REAR SUSPENSION ARM, LH

main57076-28010iACR30,40,MCR30,40199912-200304

main57076-28030iACR30,40,MCR30,40200304

57415RAIL, FLOOR SIDE, REAR RH

main57415-28080iACR30,40,MCR30,40199912-200304

57416RAIL, FLOOR SIDE, REAR LH

main57416-28090iACR30,40,MCR30,40199912-200304

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-28030iACR30,40,MCR30,40199912-200304

main57601-28080iACR30,40,MCR30,40..AERSS200304

mainC304122030iACR30,40,MCR30,40..AERAS,G,X200408

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-28020iACR30,40,MCR30,40199912-200302

main57602-28040iACR30,40,MCR30,40..J,X;ACR30,40,MCR30,40..07S..G199912-200302

main57602-28040iACR30,40,MCR30,40200302-200304

main57602-28070iACR30,40,MCR30,40..AERSS200304

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-28380iACR30,MCR30199912-200007

main57607-28390iACR30,MCR30200007-200211

main57607-28391iACR30,MCR30200211-200404

main57607-28392iACR30,MCR30200405-200601

main57607-28400iACR40,MCR40199912-200211

main57607-28402iACR40,MCR40200211-200601

57608AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4

main57608-28190iACR30,MCR30199912-200304

main57608-28200iACR40,MCR40199912-200205

main57608-28201iACR40,MCR40200205-200304

main57608-28201iACR40,MCR40200304

57653FMEMBER, REAR FLOOR CROSS, NO.2

main57653-28070iACR30,40,MCR30,40..08S;ACR30,40,MCR30,40..07S..G199912-200105

main57653-28100iACR30,40,MCR30,40200104-200211

main57653-28120iACR30,40,MCR30,40200211-200304

57656CMEMBER, REAR FLOOR CROOS, NO.5

main57656-28040iACR30,40,MCR30,40199912-200304

57661APANEL, REAR FLOOR REAR CROSS, OUTER

main57661-28020iACR30,40,MCR30,40199912-200304

57665AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2

main57665-28030iACR40,MCR40199912-200304

57694AREINFORCEMENT, FUEL TANK SUPPORT, NO.2

main57694-28020iACR30,40,MCR30,40199912-200304

57698REINFORCEMENT, FUEL TANK

main57698-28010iACR30,40,MCR30,40199912-200304

57699BREINFORCE, FUEL TANK MOUNTING BRACKET, NO.3

main57699-28010iACR30,40,MCR30,40199912-200304

57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1

main57835-28100iACR30,40,MCR30,40199912-200304

57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2

main57836-28070iACR30,40,MCR30,40199912-200304

58295AREINFORCEMENT, SEAT BELT ANCHOR FLOOR

main58295-28030iACR30,40,MCR30,40..07S..(AERAS,G)199912-200304

58311PAN, REAR FLOOR

main58311-28870iACR30..J200002-200201

main58311-28871iACR30..J200201-200210

main58311-28872iACR30..J200210-200301

main58311-28873iACR30..J200301-200304

main58311-28880iACR30,MCR30..07S..AERAS200104-200201

main58311-28881iACR30,MCR30..07S..AERAS200201-200210

main58311-28882iACR30,MCR30..07S..AERAS200210-200301

main58311-28883iACR30,MCR30..07S..AERAS200301-200304

main58311-2J010iACR30..J200002-200201

main58311-2J011iACR30..J200201-200210

main58311-2J012iACR30..J200210-200301

main58311-2J013iACR30..J200301-200304

main58311-2J020iACR30,MCR30..07S199912-200201

main58311-2J021iACR30,MCR30..07S200201-200210

main58311-2J022iACR30,MCR30..07S200210-200301

main58311-2J023iACR30,MCR30..07S200301-200304

main58311-2J040iACR40..J200002-200201

main58311-2J041iACR40..J200201-200210

main58311-2J042iACR40..J200210-200301

main58311-2J043iACR40..J200301-200304

main58311-2J050iACR40..J200002-200201

main58311-2J051iACR40..J200201-200210

main58311-2J052iACR40..J200210-200301

main58311-2J053iACR40..J200301-200304

main58311-2J060iACR40,MCR40..07S199912-200201

main58311-2J061iACR40,MCR40..07S200201-200210

main58311-2J062iACR40,MCR40..07S200210-200301

main58311-2J063iACR40,MCR40..07S200301-200304

main58311-2J070iACR30,MCR30..08S..(AERAS,X)199912-200201

main58311-2J071iACR30,MCR30..08S..(AERAS,X)200201-200210

main58311-2J072iACR30,MCR30..08S..(AERAS,X)200210-200301

main58311-2J073iACR30,MCR30..08S..(AERAS,X)200301-200304

main58311-2J080iACR30,MCR30..08S..(AERAS,G,X)199912-200201

main58311-2J081iACR30,MCR30..08S..(AERAS,G,X)200201-200210

main58311-2J082iACR30,MCR30..08S..(AERAS,G,X)200210-200301

main58311-2J083iACR30,MCR30..08S..(AERAS,G,X)200301-200304

main58311-2J090iACR40,MCR40..08S..(AERAS,X)199912-200201

main58311-2J091iACR40,MCR40..08S..(AERAS,X)200201-200210

main58311-2J092iACR40,MCR40..08S..(AERAS,X)200210-200301

main58311-2J093iACR40,MCR40..08S..(AERAS,X)200301-200304

main58311-2J100iACR40,MCR40..08S..(AERAS,G,X)199912-200201

main58311-2J101iACR40,MCR40..08S..(AERAS,G,X)200201-200210

main58311-2J102iACR40,MCR40..08S..(AERAS,G,X)200210-200301

main58311-2J103iACR40,MCR40..08S..(AERAS,G,X)200301-200304

main58311-2J110iACR30,MCR30..08S..(AERAS,X)199912-200201

main58311-2J111iACR30,MCR30..08S..(AERAS,X)200201-200210

main58311-2J112iACR30,MCR30..08S..(AERAS,X)200210-200301

main58311-2J113iACR30,MCR30..08S..(AERAS,X)200301-200304

main58311-2J120iACR30..J200002-200201

main58311-2J121iACR30..J200201-200210

main58311-2J122iACR30..J200210-200301

main58311-2J123iACR30..J200301-200304

main58311-2J130iACR30..08S..(AERAS,G,X)200002-200201

main58311-2J130iMCR30..08S199912-200201

main58311-2J131iACR30,MCR30..08S..(AERAS,G,X)200201-200210

main58311-2J132iACR30,MCR30..08S..(AERAS,G,X)200210-200301

main58311-2J133iACR30,MCR30..08S..(AERAS,G,X)200301-200304

main58311-2J140iACR30..J200002-200201

main58311-2J141iACR30..J200201-200210

main58311-2J142iACR30..J200210-200301

main58311-2J143iACR30..J200301-200304

main58311-2J150iACR30,MCR30..07S199912-200201

main58311-2J151iACR30,MCR30..07S200201-200210

main58311-2J152iACR30,MCR30..07S200210-200301

main58311-2J153iACR30,MCR30..07S200301-200304

main58311-2J160iACR40,MCR40..08S..(AERAS,X)199912-200201

main58311-2J161iACR40,MCR40..08S..(AERAS,X)200201-200210

main58311-2J162iACR40,MCR40..08S..(AERAS,X)200210-200301

main58311-2J163iACR40,MCR40..08S..(AERAS,X)200301-200304

main58311-2J170iACR40..J200002-200201

main58311-2J171iACR40..J200201-200210

main58311-2J172iACR40..J200210-200301

main58311-2J173iACR40..J200301-200304

main58311-2J180iMCR40..08S199912-200201

main58311-2J180iACR40..08S..(AERAS,G,X)200002-200201

main58311-2J181iACR40,MCR40..08S..(AERAS,G,X)200201-200210

main58311-2J182iACR40,MCR40..08S..(AERAS,G,X)200210-200301

main58311-2J183iACR40,MCR40..08S..(AERAS,G,X)200301-200304

main58311-2J190iACR40..J200002-200201

main58311-2J191iACR40..J200201-200210

main58311-2J192iACR40..J200210-200301

main58311-2J193iACR40..J200301-200304

main58311-2J200iACR40,MCR40..07S..G199912-200201

main58311-2J200iACR40,MCR40..07S..AERAS200104-200201

main58311-2J201iACR40,MCR40..07S200201-200210

main58311-2J202iACR40,MCR40..07S200210-200301

main58311-2J203iACR40,MCR40..07S200301-200304

main58311-2J210iACR30,MCR30..J,X199912-200201

main58311-2J211iACR30,MCR30..J,X200201-200210

main58311-2J212iACR30,MCR30..J,X200210-200301

main58311-2J213iACR30,MCR30..J,X200301-200304

main58311-2J213iACR30,MCR30..07S..AERAS200304

main58311-2J220iACR30,MCR30..J,X;ACR30,MCR30..07S..G199912-200201

main58311-2J221iACR30,MCR30..J,X;ACR30,MCR30..07S..G200201-200210

main58311-2J222iACR30,MCR30..J,X;ACR30,MCR30..07S..G200210-200301

main58311-2J223iACR30,MCR30..07S..(AERAS,G)200304

main58311-2J223iACR30,MCR30..J,X;ACR30,MCR30..07S..G200301-200304

main58311-2J230iACR40,MCR40..J,X;ACR40,MCR40..07S..G199912-200201

main58311-2J231iACR40,MCR40..J,X;ACR40,MCR40..07S..G200201-200210

main58311-2J232iACR40,MCR40..J,X;ACR40,MCR40..07S..G200210-200301

main58311-2J233iACR40,MCR40..J,X;ACR40,MCR40..07S..G200301-200304

main58311-2J233iACR40,MCR40..07S..(AERAS,G)200304

main58311-2J240iACR40,MCR40..J,X199912-200201

main58311-2J241iACR40,MCR40..J,X200201-200210

main58311-2J242iACR40,MCR40..J,X200210-200301

main58311-2J243iACR40,MCR40..J,X200301-200304

main58311-2J243iACR40,MCR40..07S..AERAS200304

main58311-2J340iACR30,MCR30..07S..AERAS200104-200201

main58311-2J341iACR30,MCR30..07S..AERAS200201-200210

main58311-2J342iACR30,MCR30..07S..AERAS200210-200301

main58311-2J343iACR30,MCR30..07S..AERAS200301-200304

main58311-2J350iACR40,MCR40..07S..AERAS200104-200201

main58311-2J351iACR40,MCR40..07S..AERAS200201-200210

main58311-2J352iACR40,MCR40..07S..AERAS200210-200301

main58311-2J353iACR40,MCR40..07S..AERAS200301-200304

main58311-2J360iACR40,MCR40..07S..AERAS200104-200201

main58311-2J361iACR40,MCR40..07S..AERAS200201-200210

main58311-2J362iACR40,MCR40..07S..AERAS200210-200301

main58311-2J363iACR40,MCR40..07S..AERAS200301-200304

main58311-2J370iACR30,MCR30..07S..G200104-200112

main58311-2J380iACR30,MCR30..07S..G200104-200112

main58311-2J390iACR40,MCR40..07S..G200104-200201

main58311-2J391iMCR40..07S..G200201-200210

main58311-2J392iMCR40..07S..G200210-200301

main58311-2J393iMCR40..07S..G200301-200304

main58311-2J400iACR40,MCR40..07S..G200104-200201

main58311-2J401iMCR40..07S..G200201-200210

main58311-2J402iMCR40..07S..G200210-200301

main58311-2J403iMCR40..07S..G200301-200304

main58311-2J450iACR30,MCR30..AERSS200304

main58311-2J470iACR30,MCR30..AERSS200304

main58311-2J490iACR30,MCR30..08S..(AERAS,X)200304

main58311-2J500iACR30,MCR30..AERSS200304

main58311-2J510iACR30,MCR30..07S..AERAS200304

main58311-2J520iACR30,MCR30..08S..(AERAS,G,X)200304

main58311-2J530iACR30,MCR30..AERSS200304

main58311-2J540iACR30,MCR30..07S..(AERAS,G)200304

main58311-2J550iACR30,MCR30..07S..AERAS200304

main58311-2J560iACR30,MCR30..07S..(AERAS,G)200304

main58311-2J570iACR40,MCR40..AERSS200304

main58311-2J580iACR40,MCR40..AERSS200304

main58311-2J590iACR40,MCR40..08S..(AERAS,X)200304

main58311-2J600iACR40,MCR40..AERSS200304

main58311-2J610iACR40,MCR40..07S..AERAS200304

main58311-2J620iACR40,MCR40..08S..(AERAS,G,X)200304

main58311-2J630iACR40,MCR40..AERSS200304

main58311-2J640iACR40,MCR40..07S..(AERAS,G)200304

main58311-2J650iACR40,MCR40..07S..AERAS200304

main58311-2J660iACR40,MCR40..07S..(AERAS,G)200304

main58311-2J670iMCR40..07S..G200304

main58311-D1150iACR30,MCR30..08S..(AERAS,X)200408

main58311-D1160iACR30,MCR30..08S..(AERAS,G,X)200408

main58311-D1170iACR30..X200408

main58311-D1180iACR30..X200408

main58311-D1190iACR40,MCR40..08S..(AERAS,X)200408

main58311-D1200iACR40,MCR40..08S..(AERAS,G,X)200408

main58311-D1210iACR40..X200408

main58311-D1220iACR40..X200408

main58311-D1250iACR30..X;ACR30,MCR30..07S..AERAS200408

main58311-D1260iACR30..X;ACR30,MCR30..07S..(AERAS,G)200408

main58311-D1270iACR30..X;ACR30,MCR30..07S..AERAS200408

main58311-D1280iACR30..X;ACR30,MCR30..07S..(AERAS,G)200408

main58311-D1290iACR40..X;ACR40,MCR40..07S..AERAS200408

main58311-D1300iACR40..X;ACR40,MCR40..07S..(AERAS,G)200408

main58311-D1310iACR40..X;ACR40,MCR40..07S..AERAS200408

main58311-D1320iACR40..X;ACR40,MCR40..07S..(AERAS,G)200408

mainC3111D1041iACR30,MCR30..08S..(AERAS,X)200408

mainC3111D1051iACR30,MCR30..08S..(AERAS,G,X)200408

mainC3111D1061iACR40,MCR40..08S..(AERAS,X)200408

mainC3111D1071iACR40,MCR40..08S..(AERAS,G,X)200408

mainC3111D1081iACR30..X200408

mainC3111D1091iACR30..X200408

mainC3111D1101iACR40..X200408

mainC3111D1151iACR40..X200408

58316ERETAINER, REAR SEAT SET

mainC519622020iACR30,40,MCR30,40..AERAS,G,X200408

58316GRETAINER, REAR SEAT, NO.1

main58316-28020iACR30,40,MCR30,40199912-200301

main58316-28021iACR30,40,MCR30,40200301-200304

58317ERETAINER, REAR SEAT, NO.2

main58317-28030iACR30,40,MCR30,40..AERAS,G,X199912-200301

main58317-28031iACR30,40,MCR30,40..AERAS,G,X200301-200304

main58317-28050iACR30,40,MCR30,40..J,X;ACR30,40,MCR30,40..07S..G199912-200301

main58317-28051iACR30,40,MCR30,40..07S..(AERAS,G)200304

main58317-28051iACR30,40..X200408

main58317-28051iACR30,40,MCR30,40..J,X;ACR30,40,MCR30,40..07S..G200301-200304

58339HPACKING, REAR FLOOR SERVICE HOLE

main58337-28010iACR30,40,MCR30,40199912-200304

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-28010iACR30,40,MCR30,40199912-200304

58475BPACKING, INSPECTION HOLE COVER

main58475-28020iACR40,MCR40200203-200304

main58475-95J00iACR40,MCR40199912-200203

58759ACOVER, FUEL TANK INSPECTION HOLE

main58759-28010iACR30,40,MCR30,40199912-200304

59209ACOVER SUB-ASSY, INSPECTION HOLE

main59209-95J00iACR40,MCR40199912-200304

66311BHOOK, ROPE

main66310-28020-A0iACR40..G,X;ACR30,MCR30,40..G,J,X200304-200601

IVORY,TRIM0#

main66310-28020-A0iACR30,40,MCR30,40..AERAS200312-200409

G-EDITION *(E),*(F),IVORY,TRIM0#

main66310-28020-B2iACR30,40,MCR30,40..AERAS199912-200304

LT. BLUISH GRAY,TRIM1#

main66310-28020-B2iACR30,40,MCR30,40..G,J,X199912-200304

LT. BLUISH GRAY,TRIM11

main66310-28020-B3iACR30,40,MCR30,40..AERAS200204-200304

main66310-28020-B3iACR30,40,MCR30,40..G,J,X199912-200304

MD.CHARCOAL,TRIM12

main66310-28020-B4iACR30,40,MCR30,40..AERAS,AERSS,J200304-200601

MD.GRAY,TRIM1#

5193928130CUP, SPARE TIRE CARRIER WINCH

main51939-28130

5744295700PLUG, STEP PANEL HOLE

main57442-95700

9011506166

main90115-06166

9017910196

main90179-10196

9018905055

main90189-05055

9033330002

main90333-30002

9095001392

main90950-01392

9095001691

main90950-01691

9095001841

main90950-01841

9095001901

main90950-01901

9095001919

main90950-01919

9095001948

main90950-01948

9095001955

main90950-01955

9095001959

main90950-01959

9095006013

main90950-06013

9163140616

main91631-40616

91651B0820

main91651-B0820

9167480818

main91674-80818

9356015014

main93560-15014

54 parts on this diagram · 2 diagrams in section
