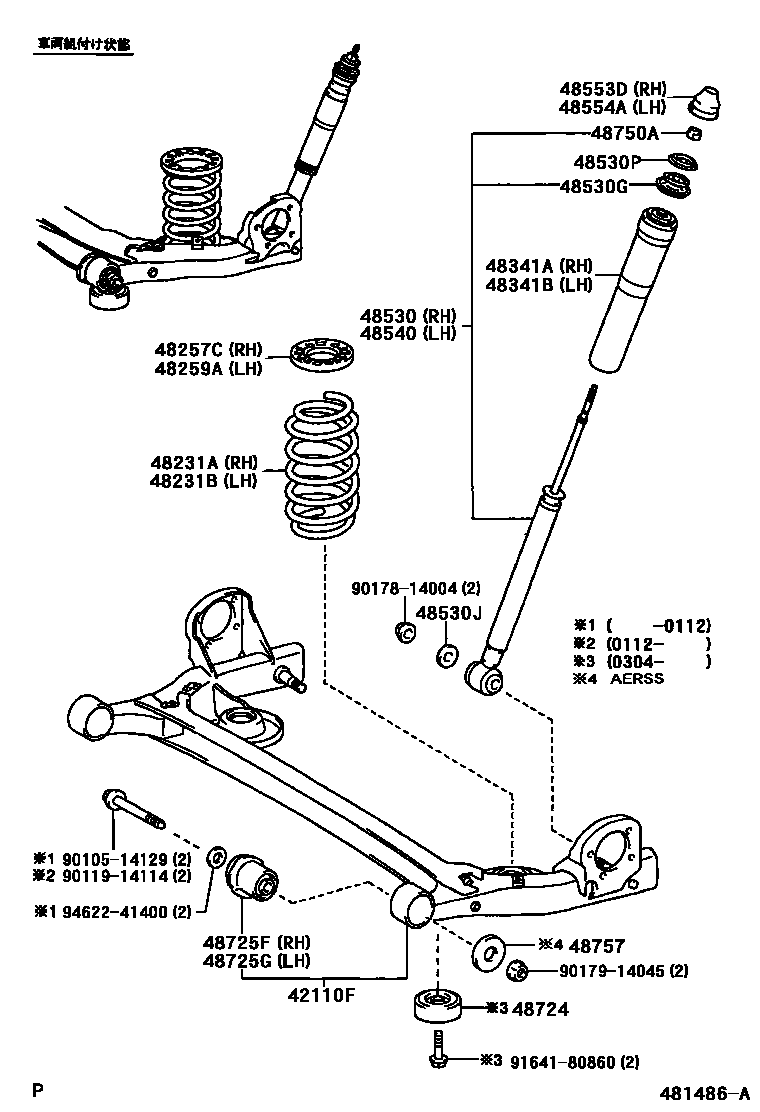

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1��(��� ����-�)

42110FBEAM ASSY, REAR AXLE

main42110-28500iACR30,MCR30199912-200304

main42110-28501iACR30,MCR30..AERAS,G,J,X200304

main42110-28520iACR40,MCR40199912-200304

main42110-28521iACR40,MCR40..AERAS,G,J,X200304

main42110-28570iACR30,40,MCR30,40..AERSS200304-200401

main42110-28571iACR30,40,MCR30,40..AERSS200401

48231ASPRING, COIL, REAR RH

main48231-28A00iACR30,MCR30..AERSS200304

main48231-28A10iACR40,MCR40..AERSS200304

main48231-28A30iACR30,MCR30..07S..(AERAS,G); ACR30..X200304

main48231-28A40iACR40,MCR40..07S..(AERAS,G); ACR40..X200304

main48231-2J020iACR30,MCR30..AERAS,G,J,X200304

main48231-2J030iACR30,MCR30..08S..(G,J,X)200104-200304

main48231-2J050iACR40,MCR40..AERAS,G,J,X200304

48231BSPRING, COIL, REAR LH

main48231-28A00iACR30,MCR30..AERSS200304

main48231-28A10iACR40,MCR40..AERSS200304

main48231-28A30iACR30,MCR30..07S..(AERAS,G); ACR30..X200304

main48231-28A40iACR40,MCR40..07S..(AERAS,G); ACR40..X200304

main48231-2J020iACR30,MCR30199912-200304

main48231-2J030iACR30,MCR30..08S..(G,J,X)200104-200304

main48231-2J050iACR40,MCR40199912-200304

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-28060iACR30,40,MCR30,40199912-200304

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-28060iACR30,40,MCR30,40199912-200304

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-28100iACR30,40,MCR30,40199912-200304

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-28100iACR30,40,MCR30,40200304

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-29925iACR30,MCR30199912-200304

main48531-29935iACR40,MCR40199912-200304

main48531-80708iACR30,MCR30..AERAS,G,J,X200304-200601

main48531-80710iACR40,MCR40..AERAS,G,J,X200304-200601

main48531-80711iACR30,MCR30..AERSS200304-200601

main48531-80712iACR40,MCR40..AERSS200304-200601

mainC145029015iACR30,MCR30..08S200304-200601

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90905-40019×2iACR30,40,MCR30,40199912-200304

48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)

main90560-14028×2iACR30,40,MCR30,40200312

main90948-02060×2iACR30,40,MCR30,40199912-200304

48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)

main90948-02159×2iACR30,40,MCR30,40199912-200304

main90948-02192×2iACR30,40,MCR30,40200304

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-29925iACR30,MCR30199912-200304

main48531-29935iACR40,MCR40199912-200304

main48531-80708iACR30,MCR30..AERAS,G,J,X200304-200601

main48531-80710iACR40,MCR40..AERAS,G,J,X200304-200601

main48531-80711iACR30,MCR30..AERSS200304-200601

main48531-80712iACR40,MCR40..AERSS200304-200601

mainC146029015iACR30,MCR30..08S200304-200601

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-28010iACR30,40,MCR30,40199912-200304

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-28010iACR30,40,MCR30,40199912-200304

48724DAMPER, LWR CONTROL ARM DYNAMIC

main48724-44010×2iACR30,40,MCR30,40200304

48725FBUSH, REAR AXLE CARRIER, RH

main48725-28050iACR30,40,MCR30,40199912-200304

main48725-28070iACR30,40,MCR30,40..AERSS200304

main48725-58010iACR30,40,MCR30,40..AERAS,G,J,X200304

48725GBUSH, REAR AXLE CARRIER, LH

main48725-28050iACR30,40,MCR30,40199912-200304

main48725-28070iACR30,40,MCR30,40..AERSS200304

main48725-58010iACR30,40,MCR30,40..AERAS,G,J,X200304

48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main90170-12045×2iACR30,40,MCR30,40200112-200304

main90177-12002×2iACR30,40,MCR30,40200003-200112

main94187-11200×2iACR30,40,MCR30,40199912-200003

48757ATTACHMENT, REAR SUSPENSION ARM

main48757-28010×2iACR30,40,MCR30,40..AERSS200304

9010514129

main90105-14129

9011914114

main90119-14114

9017814004

main90178-14004

9017914045

main90179-14045

9164180860

main91641-80860

9462241400

main94622-41400

25 parts on this diagram · 2 diagrams in section
