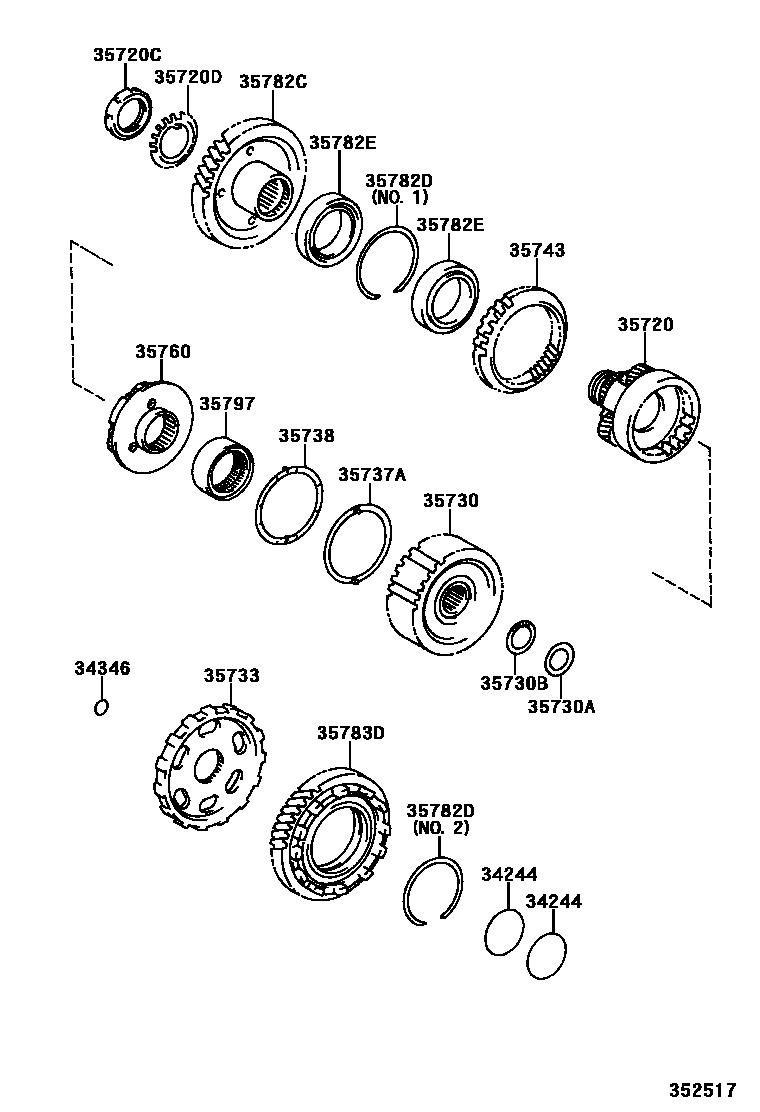

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

34244RING, UNDERDRIVE CLUTCH DRUM OIL SEAL

main34244-21010×2iACR30,40,MCR30,40200304-200601

34346RING, UNDERDRIVE OUTPUT SHAFT OIL SEAL

main34346-21011iACR30200304

main34346-28010iACR30; ACR40,MCR40200304

35720GEAR ASSY, FRONT PLANETARY

main35720-21030iMCR30200304-200407

main35720-28030iMCR30,40199912-200207

main35720-28040iACR30,40200002-200207

main35720-28070iMCR30200407

main35720-28080iACR30; ACR40200207-200304

main35720-44010iACR30200304

35720CNUT (FOR FRONT PLANETARY GEAR)

main90179-46001iACR30,40,MCR30,40199912-200304

35720DWASHER (FOR FRONT PLANETARY GEAR)

main90209-46001iACR30,40,MCR30,40199912-200304

35730GEAR ASSY, REAR PLANETARY SUN

main35730-21010iACR30200304

main35730-28010iACR30,40,MCR30,40199912-200203

main35730-28020iACR30; ACR40,MCR40200304

35730ARACE, THRUST BEARING (FOR REAR PLANETARY SUN GEAR)

main35789-21010iACR30,40,MCR30,40199912-200304

35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)

main90374-33003iMCR30200304-200407

35733GEAR, PARKING LOCK

main35733-21010iACR40,MCR30,40200304

main35733-32030iACR30200002-200304

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-21010iACR30200304

main35737-28010iACR30; ACR40,MCR40200304

35738WASHER, PLANETARY CARRIER THRUST, NO.2

main35737-21010iACR30200304

main35737-28010iACR30,40,MCR30,40199912-200203

main35737-28020iACR30; ACR40,MCR40200304

35743GEAR, FRONT PLANETARY RING

main35743-21010iMCR30200304-200407

main35743-28010iMCR30200407

35760GEAR ASSY, REAR PLANETARY

main35760-28010iACR30; ACR40,MCR40200304

main35760-33030iACR30200304

35782CGEAR, COUNTER DRIVE

main35782-21010iMCR30200304-200407

main35782-28010iACR40,MCR40200304

main35782-28020iACR30200304

main35782-32031iACR30200304

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-84001iACR30,40,MCR30,40199912-200304

main90520-89002iACR30,40,MCR30,40199912-200304

main90520-89004iACR30,40,MCR30,40200304-200601

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90366-60009×2iACR30,40,MCR30,40199912-200304

35783DGEAR, COUNTER DRIVEN

main35783-21010iMCR30200304-200403

main35783-21020iMCR30200403-200407

main35783-28010iMCR30200407

main35783-28020iACR30200304

main35783-32031iACR30200304-200502

main35783-33040iACR30200502

35797RACE, 1 WAY CLUTCH INNER

main35797-21010iACR30,40,MCR30,40200304

18 parts on this diagram · 1 diagram in section
