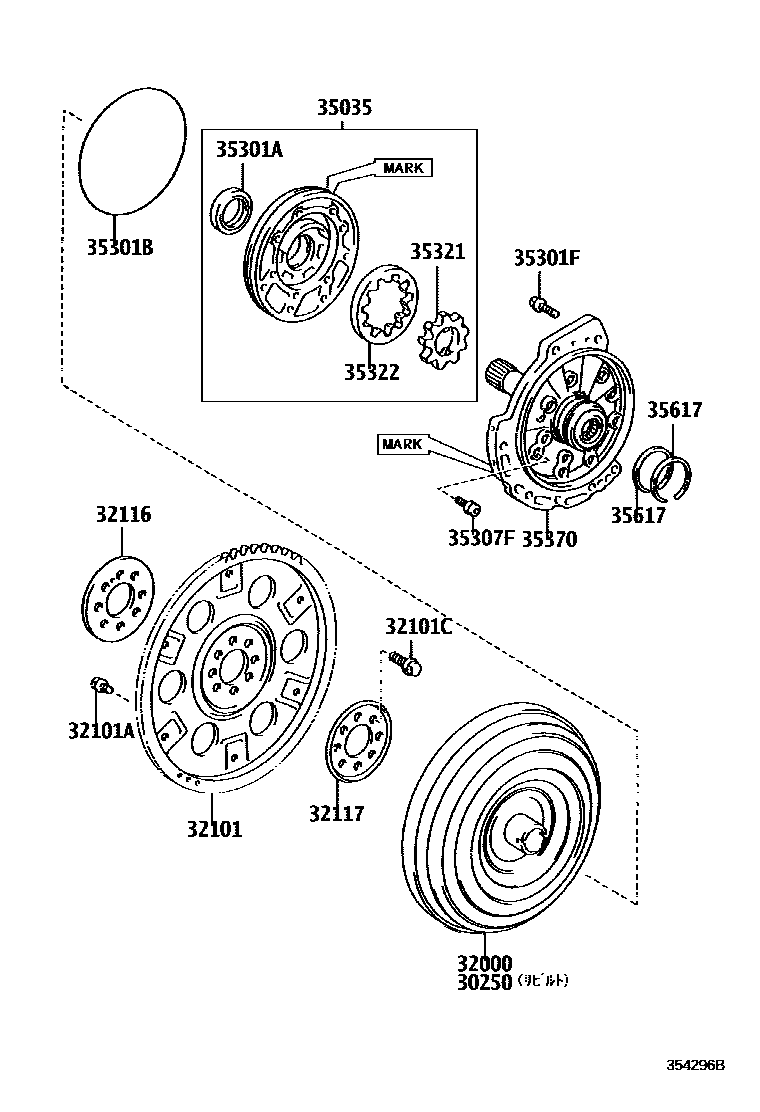

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1U140E,U140F 0002 1U140F,U241E

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-28140iMCR40200304-200601

main30250-28150iACR30,40200002-200304

32000CONVERTER ASSY, TORQUE

main32000-28140iMCR30200407-200601

main32000-28150iACR30; ACR40200304-200601

main32000-44030iACR30200304-200307

main32000-44060iACR30200307-200601

main32000-48011iMCR30200304-200407

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-28040iACR30,40200304

main32101-33010iMCR30,40199912-200211

main32101-48010iMCR30,40200211-200304

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iACR30,40,MCR30,40199912-200304

main90119-09025×5iACR30,40,MCR30,40199912-200304

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×8iMCR30,40199912-200304

main90105-12184×8iACR30,40200304

32116SPACER, DRIVE PLATE, FRONT

main32116-20050iACR30,40200304

main32116-32020iMCR30,40200304

32117SPACER, DRIVE PLATE, REAR

main32117-20060iACR30,40200304

main32117-32020iMCR30,40199912-200304

35035BODY SUB-ASSY, FR OIL PUMP & GEAR

main35035-21020iACR30200304

main35035-28010iACR30,40,MCR30,40200304

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38064iACR30,40,MCR30,40199912-200111

main90311-38083iACR30,40,MCR30,40200111-200304

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99099iACR30,40,MCR30,40199912-200304

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08050×7iACR30200403-200601

main90105-08198×7iACR30200403-200601

35307FBOLT (FOR STATOR SHAFT)

main90148-60027×11iACR30,40,MCR30,40199912-200304

35321GEAR, FRONT OIL PUMP DRIVE

main35321-21060iMCR30200304-200407

main35321-21070iACR30200304

main35321-21080iMCR30200304-200407

main35321-21090iMCR30200304-200407

main35321-21100iACR30200304

main35321-28060iACR30,40,MCR30,40200304

main35321-28070iACR30,40,MCR30,40200304

main35321-28080iACR30,40,MCR30,40200304

main35321-28090iACR30,40,MCR30,40199912-200304

main35321-28100iACR30,40,MCR30,40199912-200304

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-21060iACR30200304

main35322-21070iMCR30200304-200407

main35322-21080iACR30200304

main35322-21090iACR30200304

main35322-21100iACR30200304

main35322-28060iACR30,40,MCR30,40200304

main35322-28070iACR30,40,MCR30,40199912-200304

main35322-28080iACR30,40,MCR30,40200304

main35322-28090iACR30,40,MCR30,40199912-200304

main35322-28100iACR30,40,MCR30,40199912-200304

35370SHAFT ASSY, STATOR

main35370-21020iACR30200304

main35370-28010iACR30,40,MCR30,40199912-200304

35617RING, CLUTCH DRUM OIL SEAL

main35613-21010×2iACR30,40,MCR30,40199912-200304

16 parts on this diagram · 2 diagrams in section
