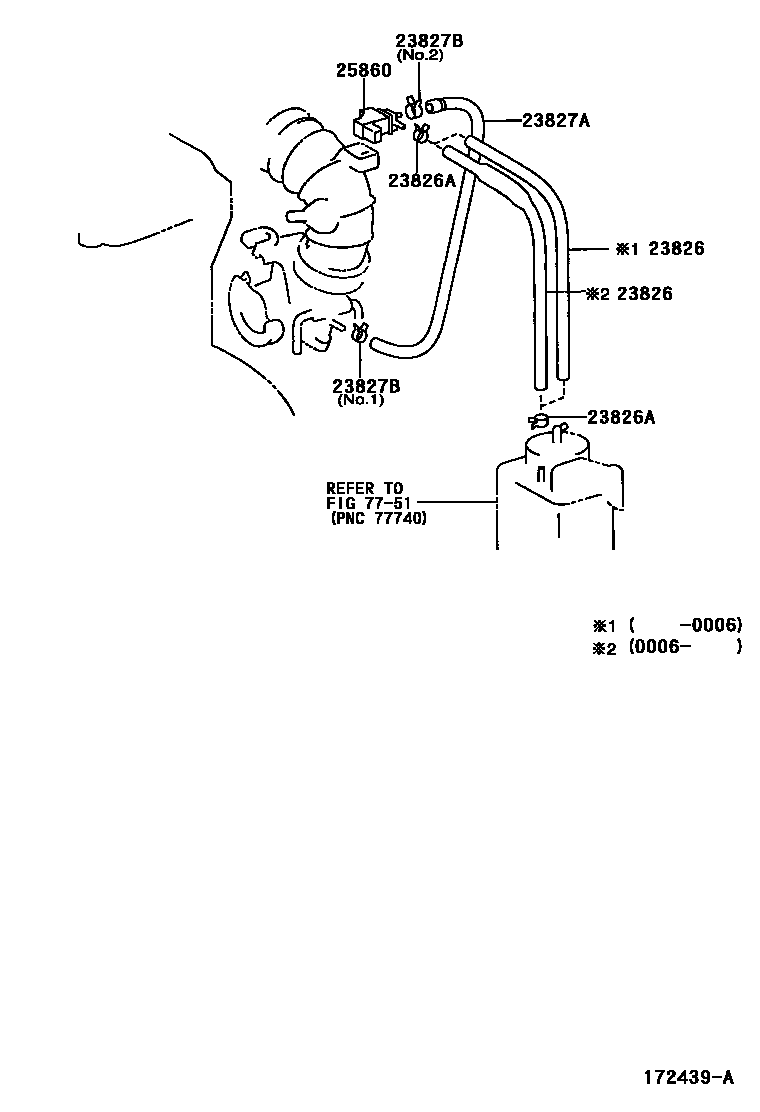

VACUUM PIPING

0001 1 0002 1 0003 1

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-20060i1MZFE..MCR30,40200304

main23826-28060i2AZFE..ACR30,40200006-200304

main95326-07028i2AZFE..ACR30,40200002-200006

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main96132-41100×2i2AZFE..ACR30,40200002-200006

main96132-41300×2i1MZFE..MCR30,40199912-200304

main96132-51300×2i1MZFE..MCR30,40; 2AZFE..ACR30,40200304

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-20030i1MZFE..MCR30,40199912-200304

main23827-28010i2AZFE..ACR30,40200002-200304

main23827-28190i2AZFE..ACR30,40200304

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-41000i2AZFE..ACR30,40200002-200304

main96132-51100i2AZFE..ACR30,40200002-200304

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-28010i2AZFE..ACR30,40200002-200304

main25860-28110i2AZFE..ACR30,40200304

main25860-62010×2i1MZFE..MCR30,40199912-200304

7751FUEL TANK & TUBE

→ Go to FIG 77-51

6 parts on this diagram · 3 diagrams in section
