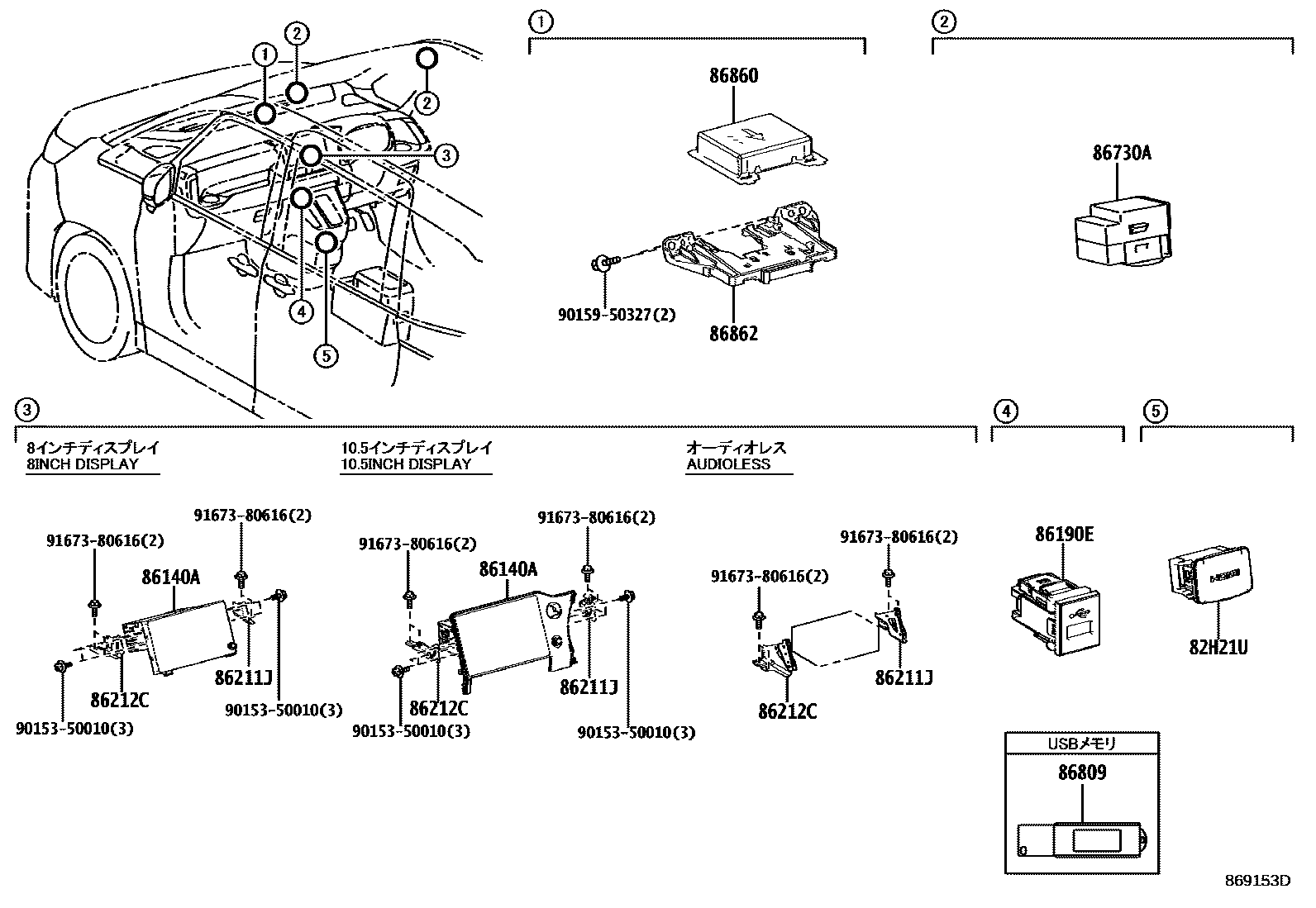

NAVIGATION & FRONT MONITOR DISPLAY

82H21UCOVER, CONNECTOR

main82821-58050-C2iMZRA9#,ZWR9#..G; MZRA90,92,95,ZWR9#..SG,SZ; MZRA90,95,ZWR90,95..Z202201-202501

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-V1030iMZRA9#,ZWR9#..G,SG202201-202203

main86100-V1031iMZRA9#,ZWR9#..G,SG202204-202208

main86100-V1032iMZRA9#,ZWR9#..G,SG202209-202406

main86100-V1033iMZRA9#,ZWR9#..G,SG202407-202501

main86100-V1040iMZRA90,95,ZWR90,95..SZ,Z202201-202205

main86100-V1041iMZRA90,95,ZWR90,95..SZ,Z202206-202208

main86100-V1042iMZRA90,95,ZWR90,95..SZ,Z202209-202403

main86100-V1043iMZRA90,95,ZWR90,95..SZ,Z202404-202501

main86140-28010iMZRA9#,ZWR9#..G,SG,SZ,Z; MZRA9#,ZWR9#..X202201-202403

main86140-28011iMZRA9#,ZWR9#..G,SG,SZ,Z; MZRA9#,ZWR9#..X202404-202501

main86140-28070iMZRA9#,ZWR9#..G,SG,SZ,Z; MZRA9#,ZWR9#..X202201-202403

main86140-28071iMZRA9#,ZWR9#..G,SG,SZ,Z; MZRA9#,ZWR9#..X202404-202501

86190EADAPTER ASSY, STEREO JACK

main86190-34010iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z; MZRA95..X..IV5202201-202501

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-V1020supersedes 86211-V1050iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z; MZRA95..X..IV5202201-202501

main86211-V1030supersedes 86211-V1020iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202201-202501

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-V1020supersedes 86212-V1050iMZRA9#,ZWR9#..X..CBU; MZRA92..07S..SG;MZRA90,95..SG..CBU202201-202605

main86212-V1030supersedes 86212-V1020iMZRA90,95,ZWR90,95..SZ202201-202502

86730AMICROPHONE ASSY, TELEPHONE

main86730-78010×2iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z; MZRA95..X..IV5202201-202501

86809USB SET, USB MEMORY NAVIGATION DATA

main86809-78010iMZRA9#,ZWR9#..G,SG,SZ,Z202201-202310

main86809-78012iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z202311-202501

86860ANTENNA ASSY, NAVIGATION

main86880-52030iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

86862BRACKET, NAVIGATION ANTENNA

main86862-50070iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501

9015350010

main90153-50010

9015950327

main90159-50327

9167380616

main91673-80616

12 parts on this diagram · 1 diagram in section
