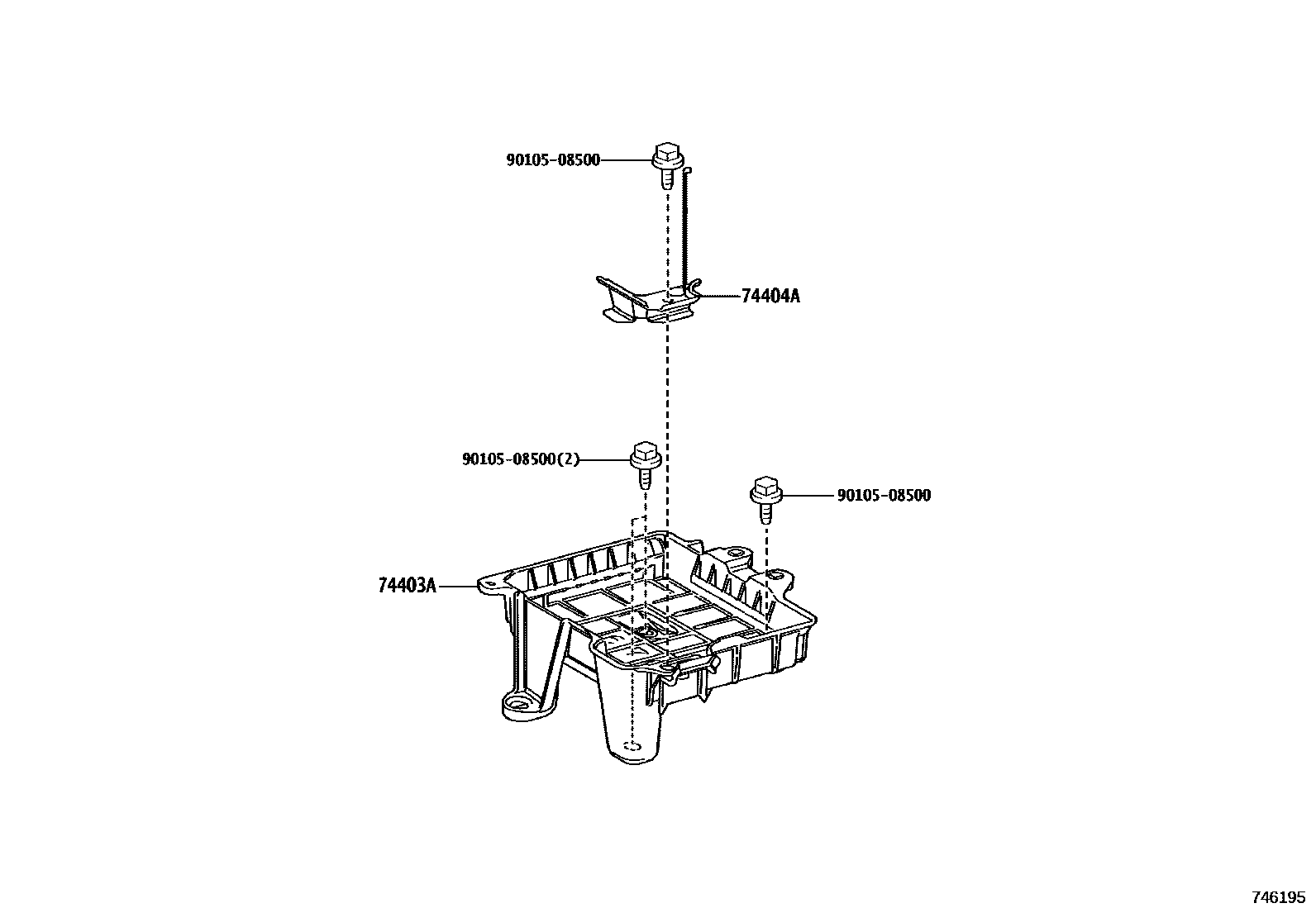

BATTERY CARRIER

0001 1 0002 1

74403ACARRIER SUB-ASSY, BATTERY

main74404-V1010iMZRA9#..G,Z;MZRA95..IV5;MZRA92..08S..SG202201-202501

main74404-V1020iZWR9#..G,Z202201-202501

74404ACLAMP SUB-ASSY, BATTERY

main74405-76021iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97..(SG,SZ,X)..CBU202201

9010508500

main90105-08500

3 parts on this diagram · 2 diagrams in section
