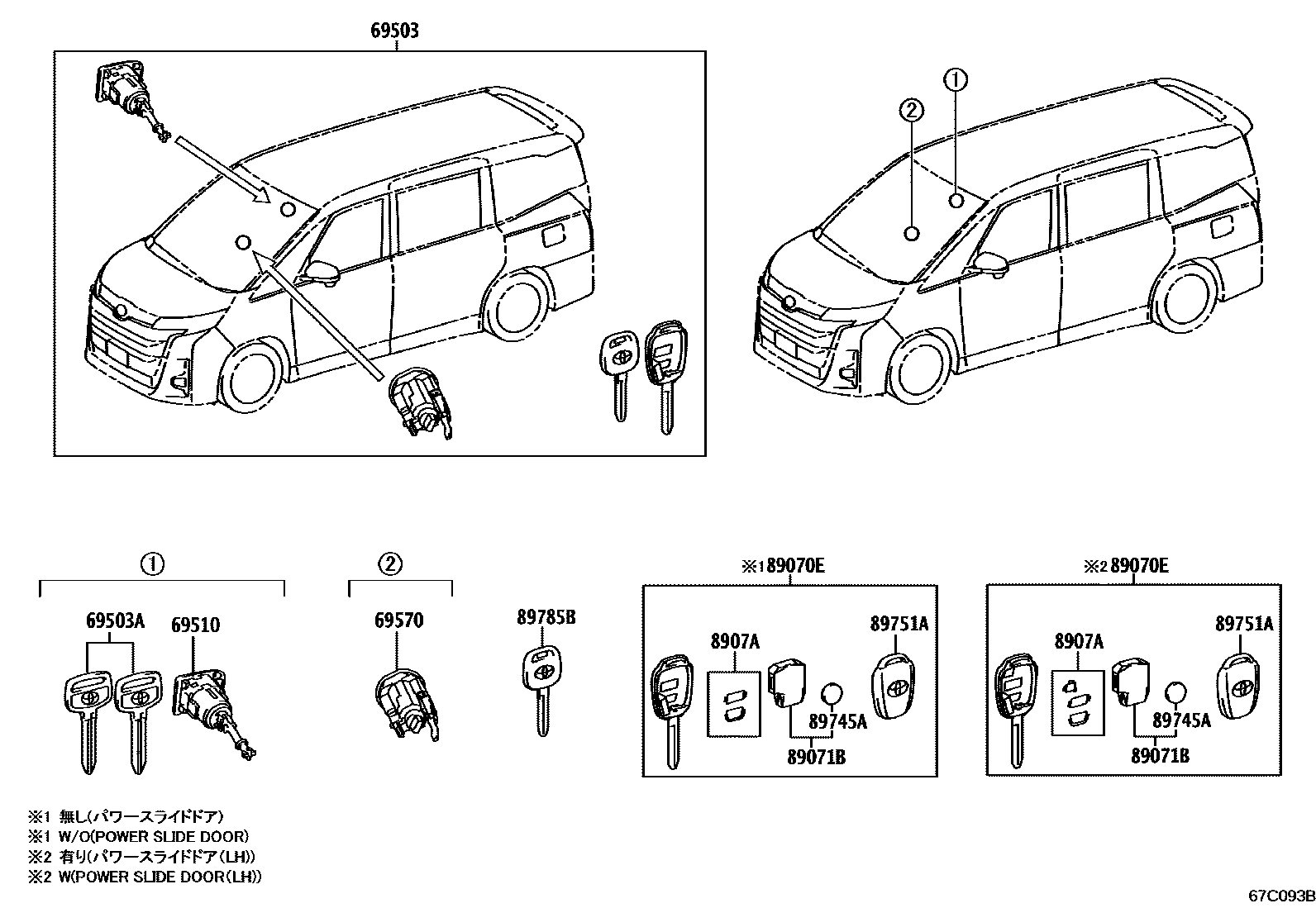

LOCK CYLINDER SET

0001 1��(��������) 0002 1��(��������)

69503CYLINDER SET, LOCK

main69005-V1010iMZRA9#..X; ZWR9#;MZRA9#..G,SG,SZ,Z202201-202208

main69005-V1011supersedes 69005-V1030iZWR9#..SG,SZ,X;MZRA92..07S..SG;MZRA90,95..(SG,SZ)..CBU202209

main69005-V1040supersedes 69005-V1030iMZRA95..X..IV5202201-202501

69503AKEY, BLANK

main90999-00186×2iMZRA95..X..IV5202201-202501

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-28280iMZRA9#..X..CBU202201-202502

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-12280iMZRA9#..X..CBU202201-202502

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-26750iMZRA9#..X202201

main89070-26770supersedes 89070-26750iMZRA9#..X202201

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-52220supersedes 89071-52320iMZRA95..X..IV5202201-202501

main89071-52320iMZRA9#..X202201-202402

8907ASWITCH SET, TRANSMITTER

main8907A-52010iMZRA9#..X202201-202402

main8907A-52030supersedes 8907A-52010iMZRA95..X..IV5202201-202501

89745ABATTERY, TRANSMITTER

main89745-K0010supersedes 89745-71010iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z; MZRA95..X..IV5202201-202501

main89745-71010iMZRA9#..X202201-202402

89751ACOVER, TRANSMITTER HOUSING

main89751-42090iMZRA9#..X..CBU202201-202502

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-26040iMZRA9#..X202201

10 parts on this diagram · 2 diagrams in section
